3.7 Solid door locks
3.7.1 Parts included
Fig. 8
1
2
3
Parts included
1 Door lock
2 Screws
3 Cylinder fixing screw (SVA 2000 and 2000F only)

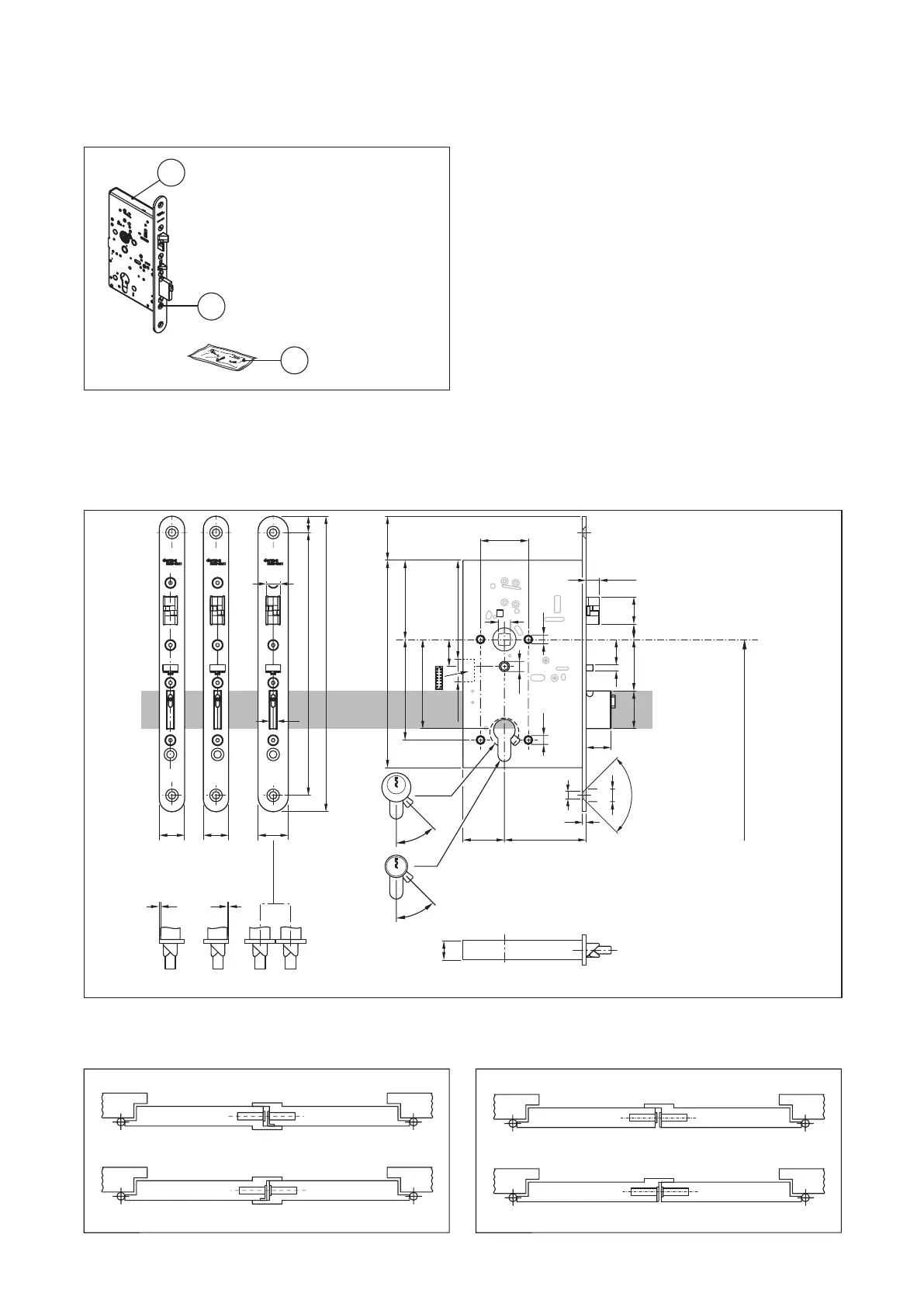

3.7.2 Lock dimensions
Fig. 9
ø22
ø17
11
11
6
20 20 24
ACB
D
3
A/B/C/D
16,5
33
65 / 80 / 100
Ø6
90°
20
209
235
30 41
5 20
10,7
2212
13
21,5
38
35
63
79,517,5
165
Ø10
Ø7
Ø8
Ø7
9
RC
PC
max.
45°
80(PC) / 80.5(RC)
72 (PC) / 74(RC)
max.
45°
1050
FFL
Lock dimensions
3.7.3 Door versions
Fig. 10
SVI
SVA
A/B
SVA
SVI
Folding doors Fig. 11
SVI
SVA
C/D
SVA
SVI
Rebated doors
