3 Product description
The SVA lock on the active leaf of a double-leaf
swing door locks automatically after each closing by
automatically pushing the bolt forward into the SVI
lock (insurance-compliant lock). At the same time,
the cross latch locks so that a two-point locking
system is created. This offers additional security
against manipulation or breaking of the door lock. In
an emergency, SVA door locks can be unlocked and
opened at any time in the escape direction with the
door handle/panic bar. These features ensure that
SVA door locks comply with EN 179 for emergency exit
locks and EN 1125 for panic exit locks. The SVA door
locks 4000, 6000 and 2000/2000F can query the
status of the control latch, bolt, door handle/panic
bar and locking cylinder.
3.1 Installation situation
3.1.1 Mechanical opening

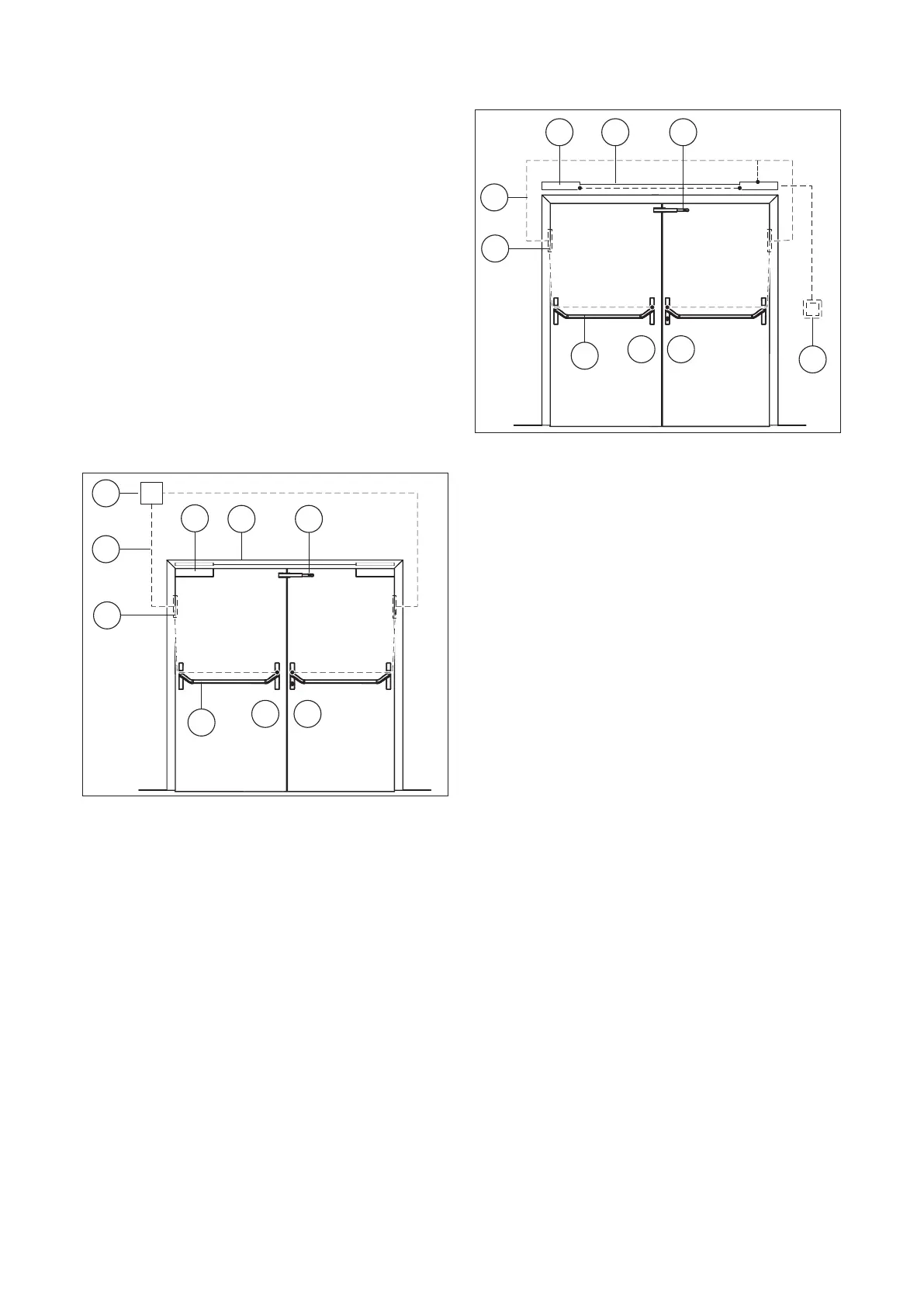

Fig. 2
12
7
3
5
6
8 9
S G
4
Mechanical installation situation (example)
1 Active leaf with SVA 5000 (SVA 4000 or 6000)
2 Fixed leaf with SVI 5000 (SVI 4000)
3 Panic door fitting
4 Cable transfer CT, cable spiral CS and if necessary
detachable cable transfer DT
5 Connecting cable SVP-A 1100/2100
6 External control unit
7 Door closer
8 Sequential locking control
9 Carry bar
3.1.2 Automatic opening
Fig. 3
12
5
6 7 8
9
3
S G
4
Electrical installation situation (example)
1 Active leaf with SVA 2000/2000F
2 Fixed leaf with SVI 2000F
3 Panic door fitting
4 Cable transfer CT, cable spiral CS and if necessary
detachable cable transfer DT
5 Connecting cable SVP-A 1100/2100
6 Operator inc. control unit (e.g. ED100/250)
7 Sequential locking control
8 Carry bar
9 Access control components
4
SVA door locks
2019-07
WN 059743 45532
dormakaba Mounting instructions Product description
