ASSEMBLING THE DOSATRON
ASSEMBLY SHOULD BE CARRIED OUT WITHOUT THE USE OF TOOLS
The DOSATRON is delivered with :
- a mounting bracket,
- a suction tube with a strainer.
The bracket enables the DOSATRON to be fixed to a wall.

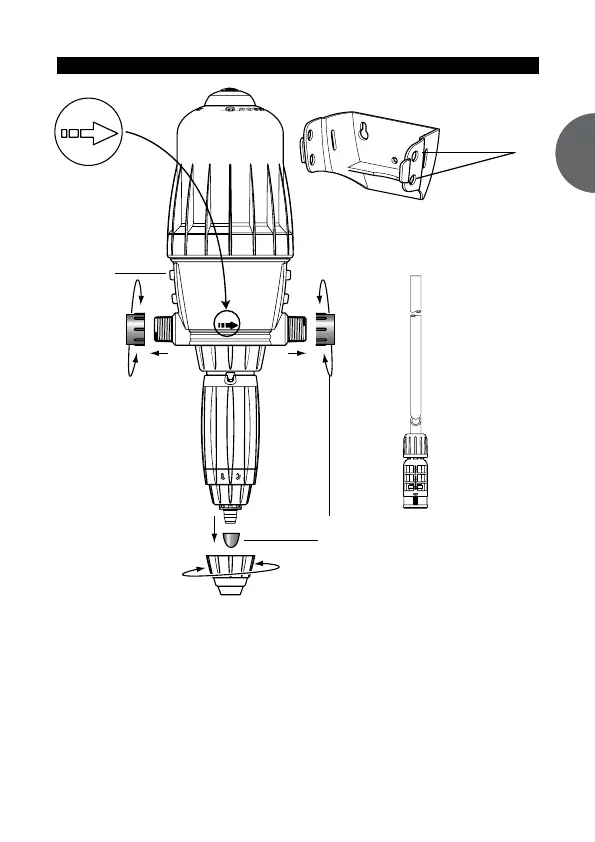

Snap the DOSATRON into the bracket by fitting the two lugs on one side of
the body (Fig. 1-A) into the corresponding holes in the bracket (Fig. 1-B),
and springing the bracket arms apart until the other 2 lugs click into place.
Remove the plastic caps (Fig. 1-C) which block the inlet and outlet of your
DOSATRON before connecting to the water supply.
