EN
5
%
5
%
NO !

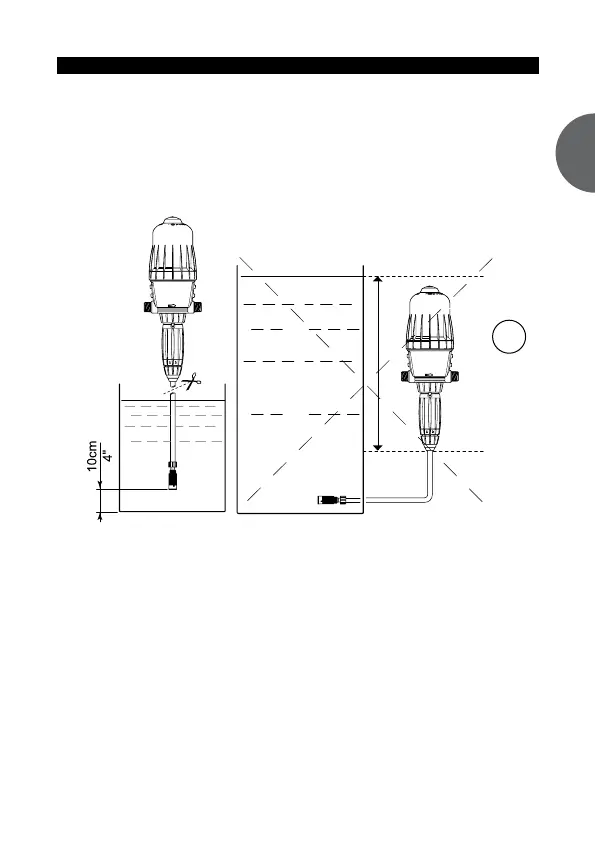

IMPORTANT ! - Do not put the suction tube strainer on the bottom of
the stock solution container. The strainer must be suspended at least
10cm [4”] above the bottom of the tank to avoid sucking up the insoluble
particles that may damage the injection assembly (Fig.2).
- Do not put the strainer on the ground.
Under no circumstance should the solution level be above the water
inlet of the DOSATRON (to avoid siphoning situations) (Fig. 3).
ASSEMBLING THE DOSATRON (cont...)
Fig. 2
WHAT YOU SHOULD DO
WHAT YOU MUST NOT DO
t
t
Fig. 3
