dosatron D3 Series - KNOW YOUR FLOW; A SIMPLE METHOD; Calculation of water flow in l;h; Calculation of water flow in GPM

©
DOSATRON INTERNATIONAL S.A.S / 63
©
DOSATRON INTERNATIONAL S.A.S / 63
n Calculation of water flow in l/h =
Number of clicks in 15 seconds x
4
x
60
x
0.53
2
Calculation for 1 hour
Calculation for 1 minute
2 clicks = 1 cycle
Stroke volume
in litres
n Calculation of water flow in GPM =
Number of clicks in 15 seconds
x
4
x
0.53
÷
3.8
2
Stroke volume in litres
Calculation for 1 minute
2 clicks = 1 cycle
conversion litres
to gallons
KNOW YOUR FLOW
NOTA :
This method of calculation cannot replace a flow meter. It is given
only as an approximate guide.
A SIMPLE METHOD

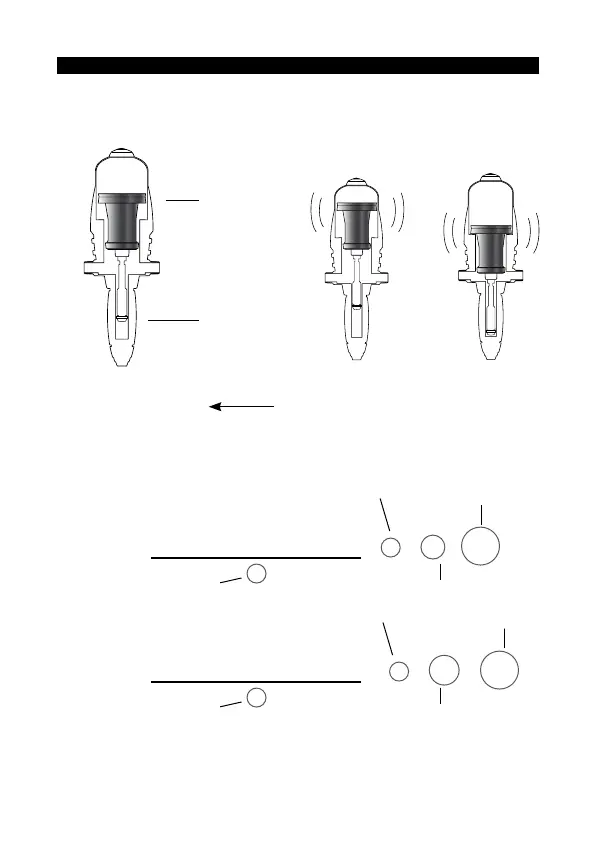

THE DOSATRON IS COMPOSED OF:
A driving
volumetric
hydraulic
motor piston
connected
to :
In its up and down movement, you
can hear the motor piston click:
a dosing
piston.
2 clicks = 1 motor
cycle = The stroke
volume
Once in the up
position
Once in the
down position
The speed of the motor is proportional to the flow of water passing through
the system.
