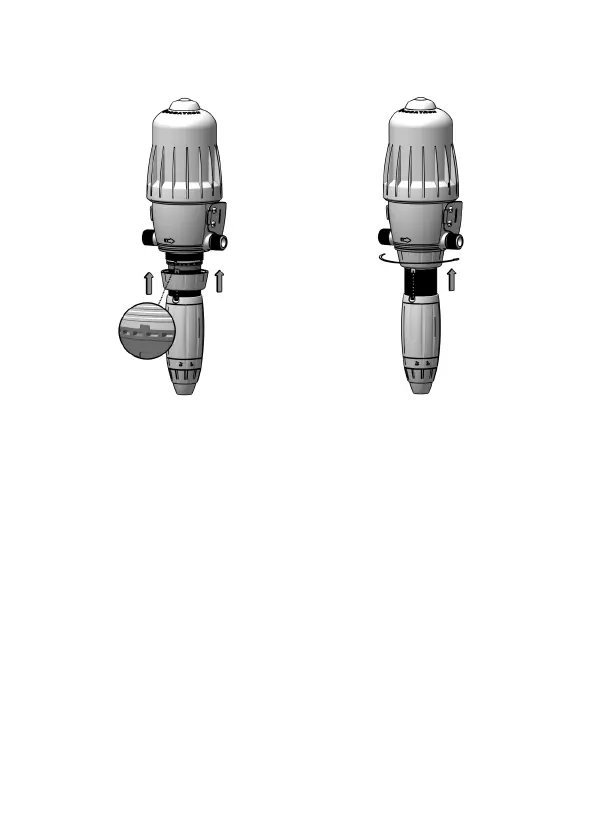

fig 9 fig 10
— Ensure that the centring pins are
aligned with the groove in the pump
body. If necessary, to see the pins
better, unscrew the dosing
adjustment sleeve to the middle of
its travel.
— Manually retighten the fixing nut
on the injection assembly.
