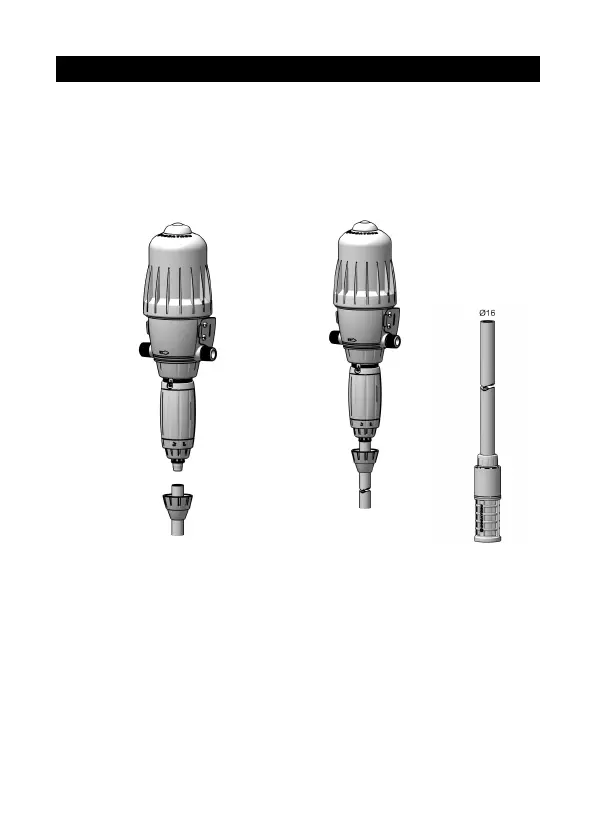

CONNECTING THE SUCTION HOSE
The DOSATRON is supplied with a suction hose (to be adjusted as required)
which allows it to be used with a large capacity container. This hose must be
fitted with the strainer and ballast.
NOTA: Maximum suction height: 4 m [13 ft]
D3IL10
fig 11
fig 12
fig 13
- Unscrew the nut at the bottom of
the injection assembly and thread
the suction hose through the nut.
Push the hose into the barbed fitting
as far as it will go and screw the nut
by hand.
- Assemble the strainer on the other
end of the hose using the same
method
- Immerse the strainer into the
solution to be dosed
