D3IL10V
fig 14
fig 15
fig 16

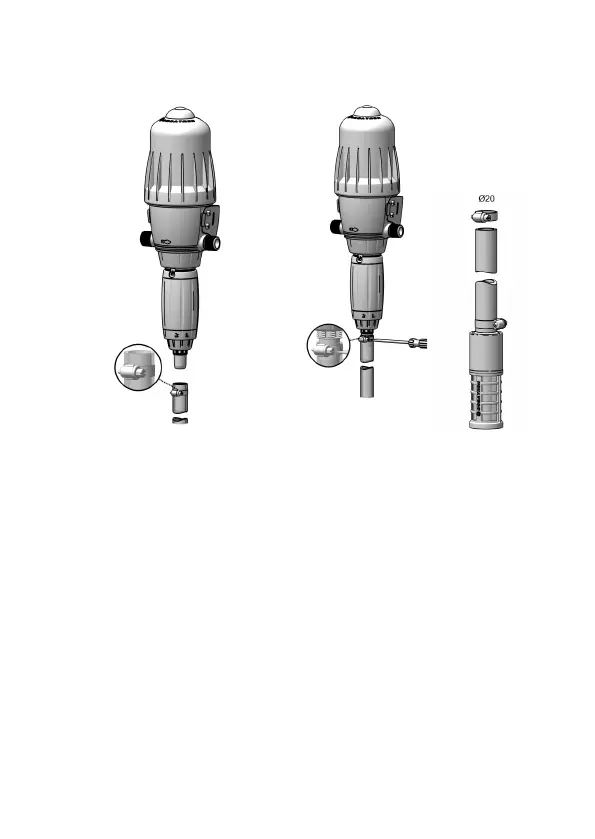

- Pass the suction hose through the
clamp.
- Push the hose all the way onto the
suction valve fitting, position the
clamp over the middle of the fitting
and tighten it.
- Assemble the strainer on the other
end of the hose using the same
method
- Immerse the strainer into the
solution to be dosed
