dosatron D3 - Page 37

/ 37
Replace the dosing piston seal:
• Replace the dosing pump body O-ring following the method described
above.
• Clean the seal seating without any tools.
• Reassemble by hand. It is extremely important that the seal is not twisted
once it is in place, as this would compromise the seal.

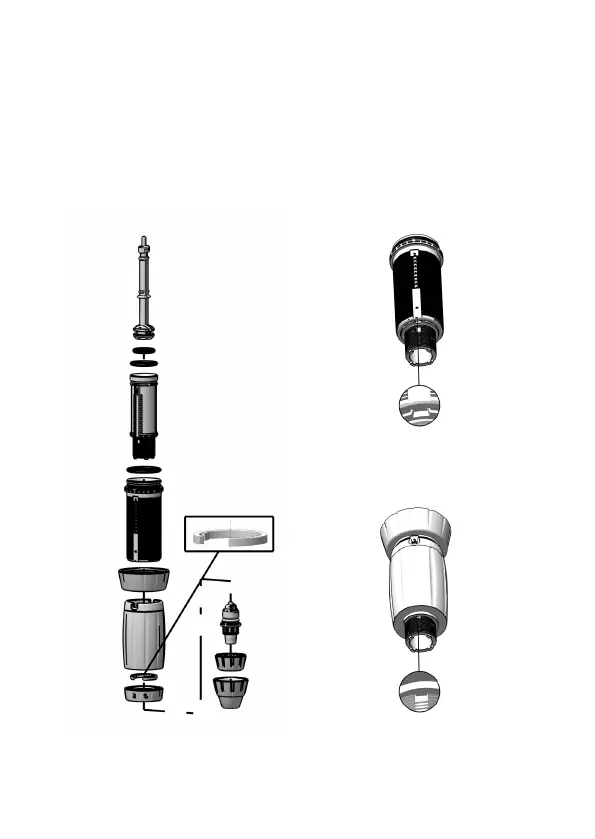

fig 35
fig 36
fig 37
