Functions (water) - 13
Version 1.36
02/2004
The fixed water connection kit can be installed to dispensers from the 2 series and newer (serial
number 0007001 and higher).
3. Options
The fixed water connection
Installation of the fixed water connection kit (see the parts catalogue for kit contents)
1. Check the water quality and water pressure. Install a water filter/softener if necessary.
(min. : 0.8 bar dynamic pressure / max. 10 bar static pressure)
2. Disconnect power cord and remove water tank as well as the left / right machine cover.
3. Empty the boiler. (Caution : boiler may contain hot very water!)
4. Disconnect hoses (still water inside) and wiring from the inlet valve and remove the inlet valve.

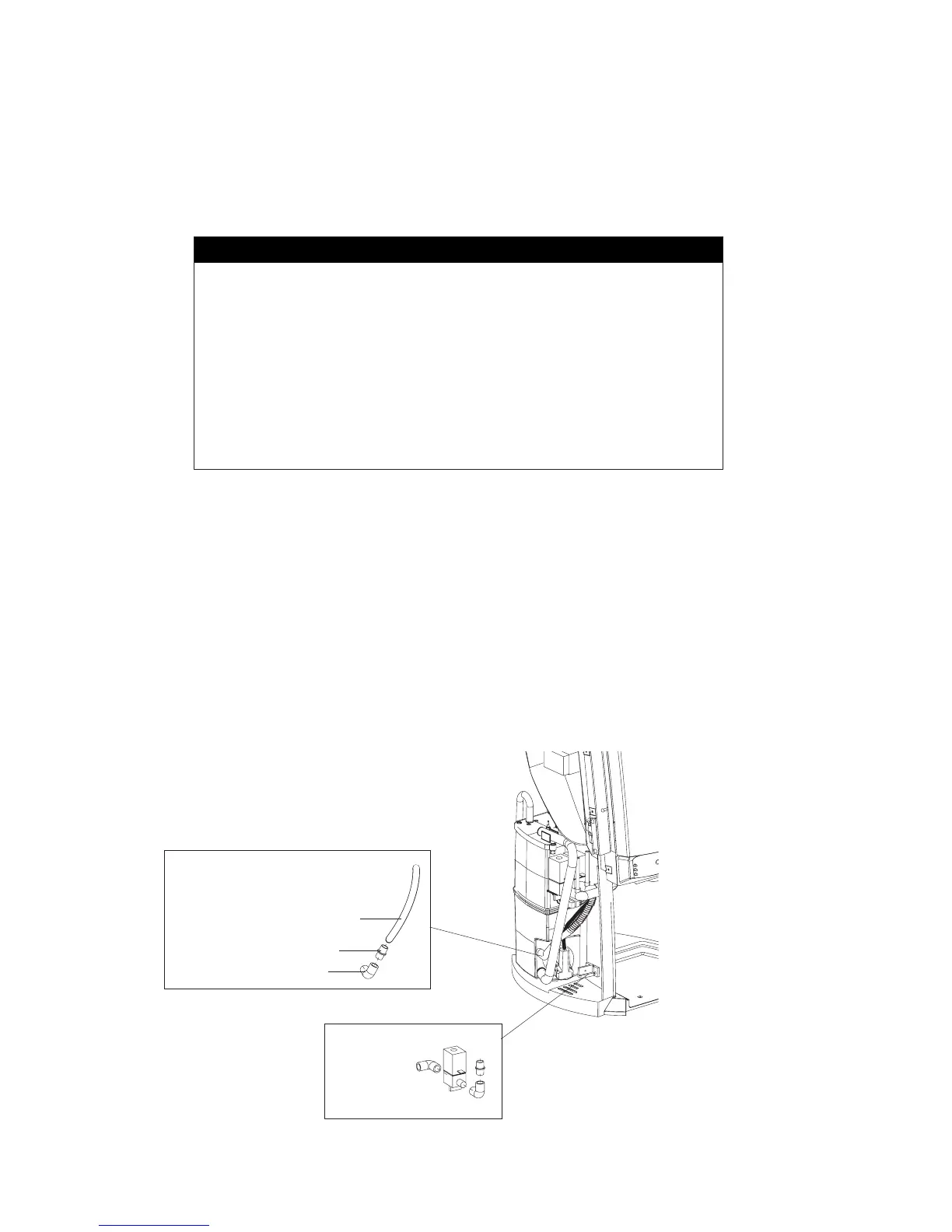

5. Connect hoses to the boiler as illustrated.
Ensure that the installation conditions are met before you install
the fixed water connection. (refer to chapter 2 page 1)
Always observe local regulation regarding plumbing!
Water pressure allowed: Min. 0.8 bar dynamic pressure
Max. 10 bar static pressure
Attach the caution label (included in the kit) indicating these
pressure values in clear sight after installation.
Important
Ö
Ö
Ö
Ö
Removed :
inlet valve
Silicon Water inlet hose
Hose connector
90° Angular piece to boiler
Water hose connection
to the boiler
