Functions (dosing) - 1
Version 1.36
02/2004
5C. Dosing system
1. Disassembly and adjustments
A. Coffee strength adjustment
Dosing of the coffee concentrate (i.e. adjustment of the coffee strength) is done by means of (1) the
service device or (2) operation panel button programming.
Please refer to chapter 4 page 2 for service device programming or chapter 4 page 5 for dosing adjust-
ment by means of operation panel buttons.

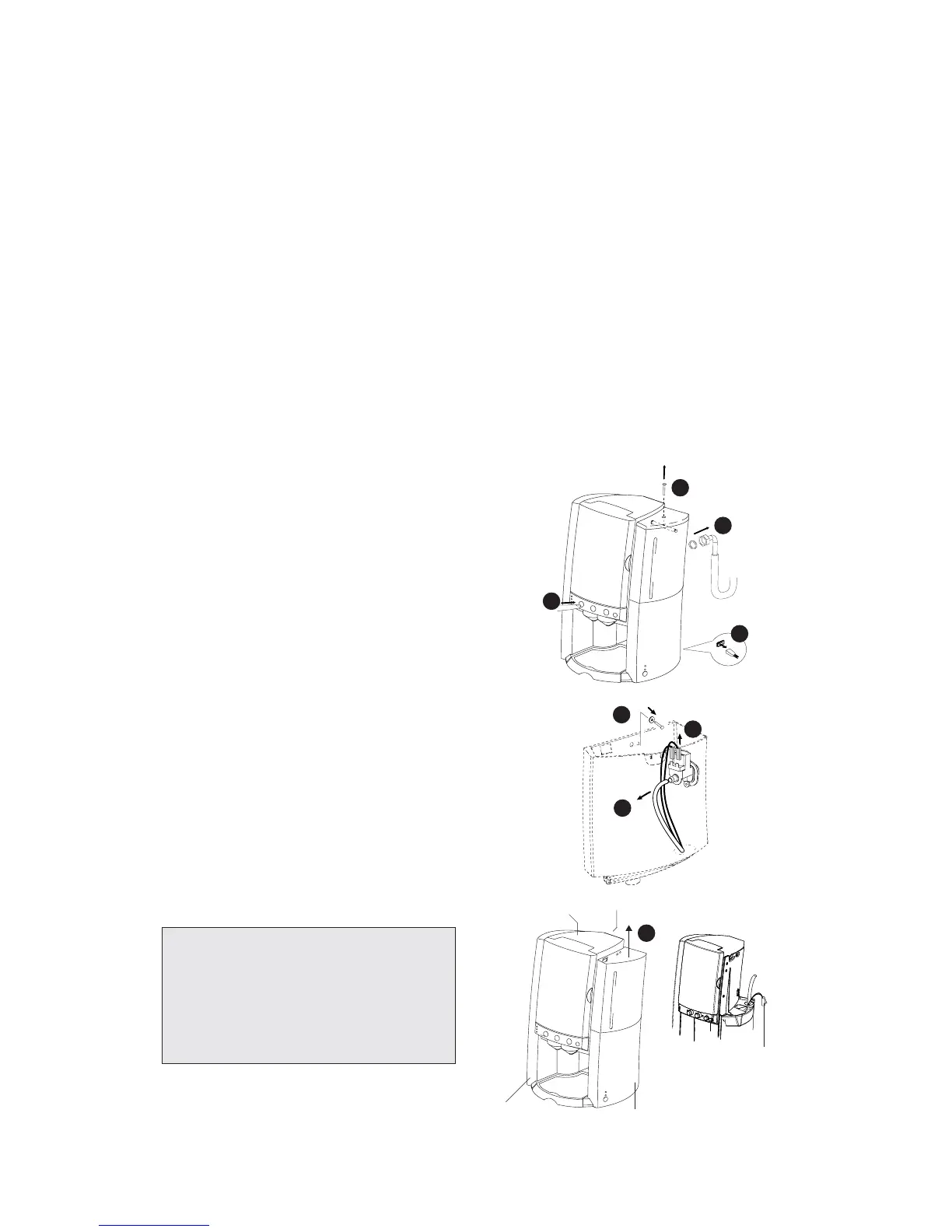

B. Disassembly of the dosing coil
(Store the coffee pack temporarily in a refrigerator)
In case a fixed water connection is installed start from step 1.
If no fixed water connection is installed, unplug the power cord and proceed with step 6.
4. Disconnect the silicon water hose [5] as well as
the wiring [6] from the inlet valve.
5. Remove the retaining screw of the tank [7] and
lift the tank from the machine. (Guide wiring and
hose upright trough the opening in the tank.) [8]
6. Remove all machine covers (left cover, right
cover, rear cover and top cover) and the
water tank.
About removing the right cover:
- Remove the screw at the rear side.
- Lift the cover about 12 cm /4”.
- Disconnect the flat cable of the On/Stand by
switch on the control PCB. (lower left corner)
- Lift the cover from the machine.
1. Close the faucet and remove the external water
supply hose. (water inside!) [1]
Pour a cup of hot water. [2]
2. Unplug the power cord.[3]
3. Remove the tank lid.[4]
1
3
2
4
5
6
7
8
Fixed water parts :
Hose/wiring
Rear cover
Top cover
Left
cover
Right cover
To Next Page
