Douwe Egberts Contenta - Cooling Compartment Connector and Wiring Disconnection; Removing the Cooling Compartment

Functions (dosing) - 2
Version 1.36
02/2004
CN8
CN9
CN14
CN13
NTC Sensor
Peltier element
Fan
1
4
2
3
1
4
2
3

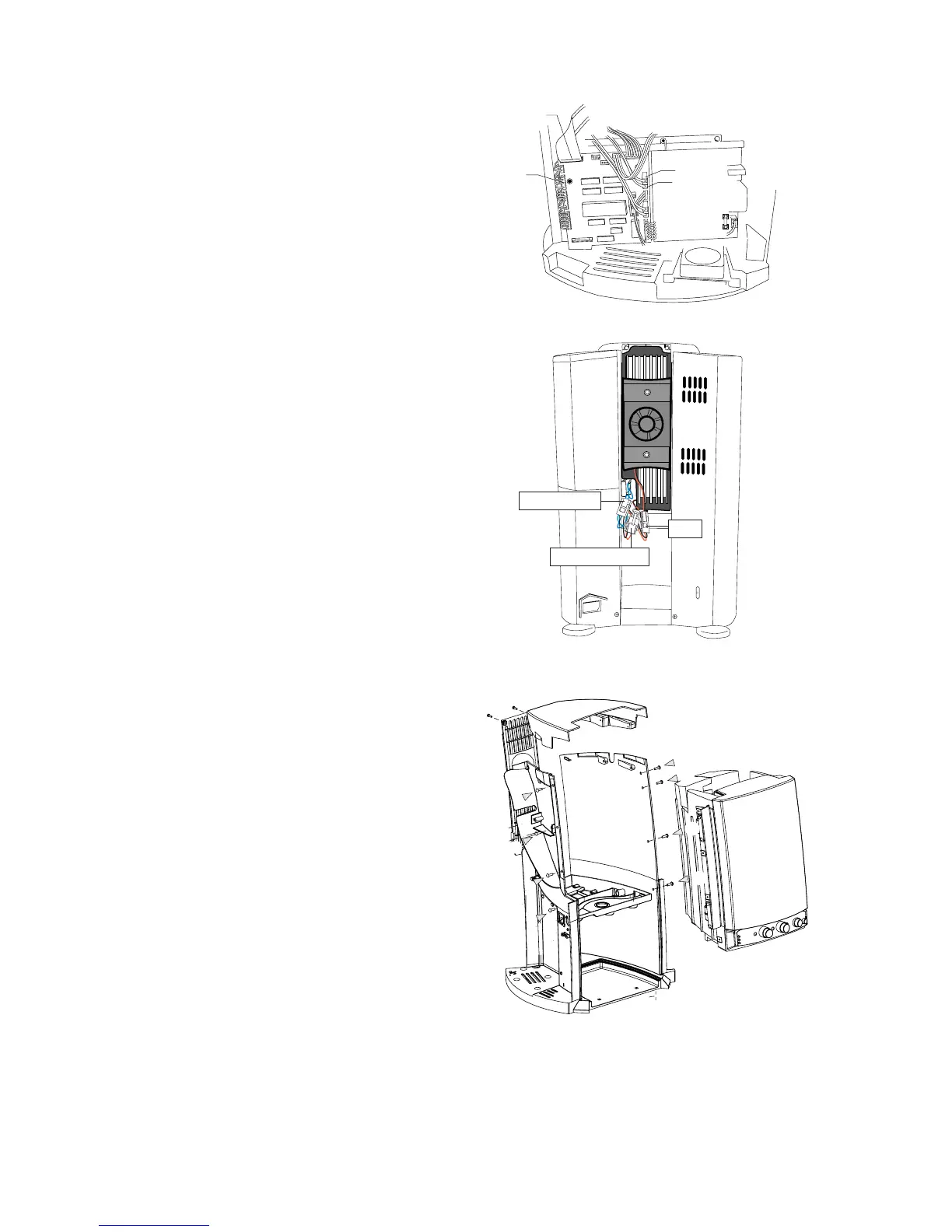

7. Disconnect the connectors CN8, CN9, CN13 &
CN14 on the control PCB.
8. Disconnect the wiring of the fan, Peltier element
and the NTC sensor. (machine rear side)
9. Remove the four retaining screws of the
complete cooling compartment on both sides
of the machine frame.
