3
Risks of fire
• Do not expose battery to direct sunlight.
• Avoid contact with conductive objects such as wires.
• Keep battery away from fire source, inflammable, explosive and chemical materials.
• Do not dispose of batteries in a fire. The batteries may explode.
Risks of electric shock
• Do not touch battery with wet hands.
• Keep battery away from children and animals.
• A battery can present a risk of electric shock and burns by high short-circuited current.
• Battery installation and wire connection must be operated by professionals.
Risks of damage
• Keep a dis
t
ance to water source.
• Do not subject battery to high voltage.
• Place battery on a flat surface. Do not place any foreign object on top of battery nor step on battery.
• Battery-connected PCS should have reinforced insulation.
Table 1-1 Responses to Emergencies
Event Description and recommended actions
Leakage Inhalation: leave the contaminated area right now.
• Swallow: induce vomiting.
• Contact with eyes: flush eyes with flowing water for 15 minutes.
• Contact with skin: wash thoroughly with soap and water.
• Immediately seek for medical intervention after taking emergency measures.
Fire Battery may catch fire when heated above 150
ႏ
.
Please implement the following actions:
• Extinguish fire before the battery catches fire. ABC or carbon dioxide extinguisher is
recommended.
• If the fire is too strong to put out, move battery to a safe place before it catches fire.
• If battery is on fire, evacuate people first before seeking help from professional fire
protection personnel.
• If battery catches fire during charging, turn off the breaker between battery and PCS
when safety can be guaranteed.
Wet battery If battery became wet or has been submerged in water, do not access it. Immediately contact
your distributor for technical assistance.
Damage Damaged battery is dangerous and must be handled with utmost care. They are not usable
for use and could pose a safety threat to people or property. If battery is suspected to be
damaged, stop any operation and return it to distributor.
4
2 Overview
iPack C3.3 is a 3.3 kWh standalone LiFePO4 battery pack. It has a 48V battery module as the main power
supply unit composed of 64 Ah cells in one parallel and 16 serial connect (1P16S)
.
Battery coordinates with
PV, power conversion system (PCS), Grid, DC Breaker and loads in the residential energy storage system.
2.1 Application Scenarios
The typical application scenarios are as shown below.
The energy produced by PV is optimized to
supply loads. The excess energy is used to
charge battery, then export to grid.
Battery powers loads at nighttime when there
is no PV. If battery energy is insufficient, it can
supply loads together with grid
.
Junction Box
Junction Box
When grid falls, battery and PV can power
loads.
Battery can be charged by grid. Users are
suggested to store energy from grid to battery
when electricity price is relatively lower.
2.2 Product Features
Compared with normal batteries, the battery is characterized with better charging and discharging
performance, longer cycle life and less self-discharging loss. The build-in BMS can monitor battery operation
status and alarm timely to avoid operation out of limit. A maximum of 6 batteries can be parallel-connected
to expand energy and power of energy storage system. Battery realizes communication with PCS via CAN
network port.
• Monitoring:
9
4 Tools and Protective Equipment
Before installing, operating, and maintaining the battery, you need to prepare tools and protection equipment to
ensure safety.
Wire stripper Wire cutter Wire crimper Hydraulic plier
FUSED
FUSED
1000V MAX
10A 100mA CO M
V ¡
OFF
V
A
A
V
ɏ
Hz
%
Screwdriver Hex key Multi-meter
Insulated gloves Safety goggle Safety shoes
To prevent injury, always wear acid-resistant clothing, PVC gloves, goggles and rubber boots during
installation, operation, and maintenance.
10
5 Installation
It is recommended to install the battery into a cabinet and place it indoor. If you install it outdoor, select a
cabinet with a sufficient IP rating. Build sunshade & rain shelter to avoid direct exposure to sunlight and rain for
outdoor application.
5.1 Inspection before Installation
Before installation, check carefully for any damages on the package and the products and inspect if all
accessories in the list are included. If any part is missing or damaged, please contact your distributor.
Item NO. Part Name Quantity Item NO. Part Name Quantity
1 Standalone Battery 1pcs 5 User Manual 1pcs
2 Bracket 2pcs 6 Quick Guidance 1pcs
3 Screw 4pcs 7 Warranty Card 1pcs
4 Crystal plug 2pcs 8 Accessory List 1pcs

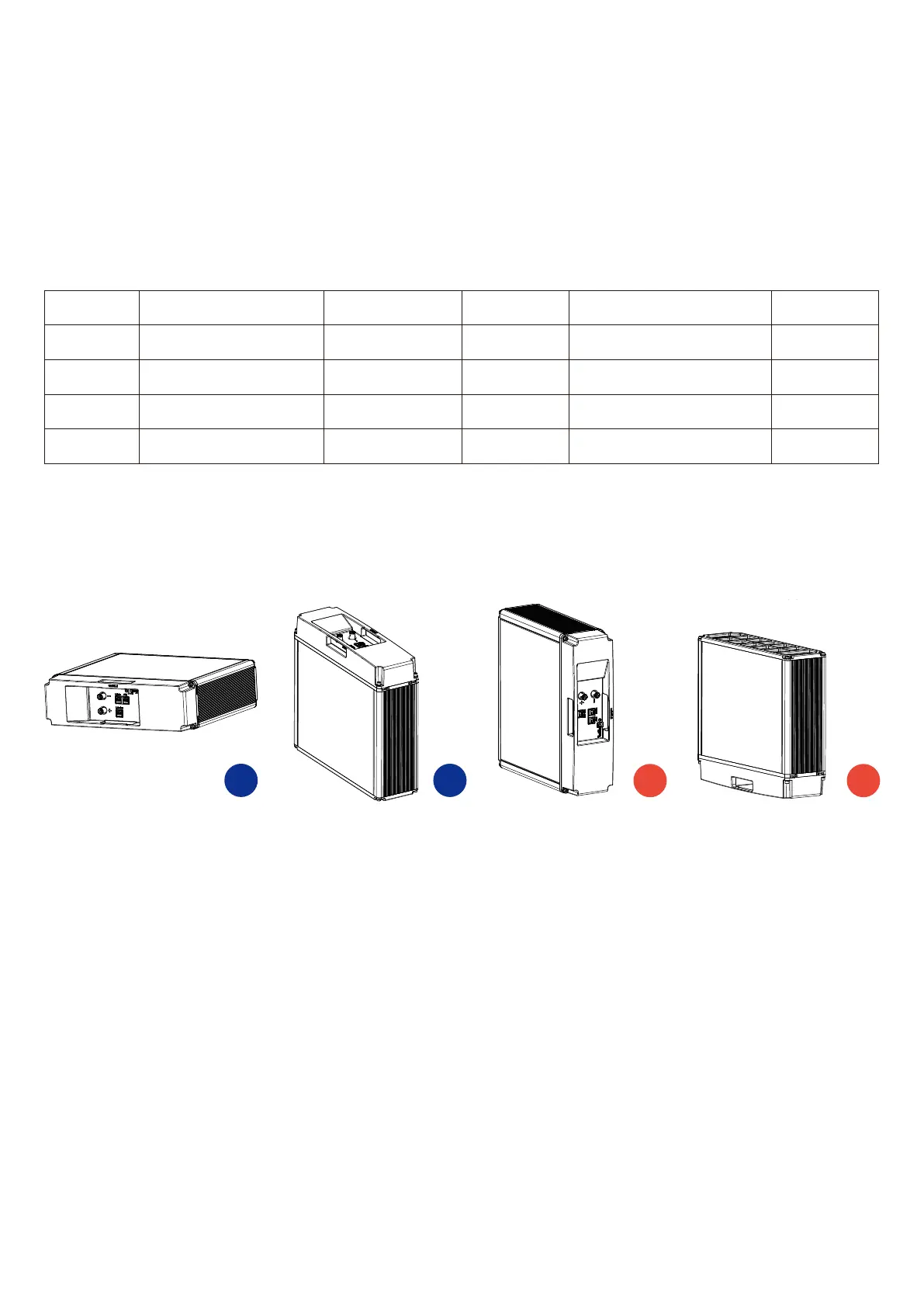

5.2 Battery Orientation
The battery can be installed in any direction except upside down and at most 6 pcs of batteries can be
connected in parallel (up to 6p).
√
× ×
√
