Dowell iPack C3.3 - Wall-mounted Installation; Wall-mounted Installation (Parallel Mode)

11

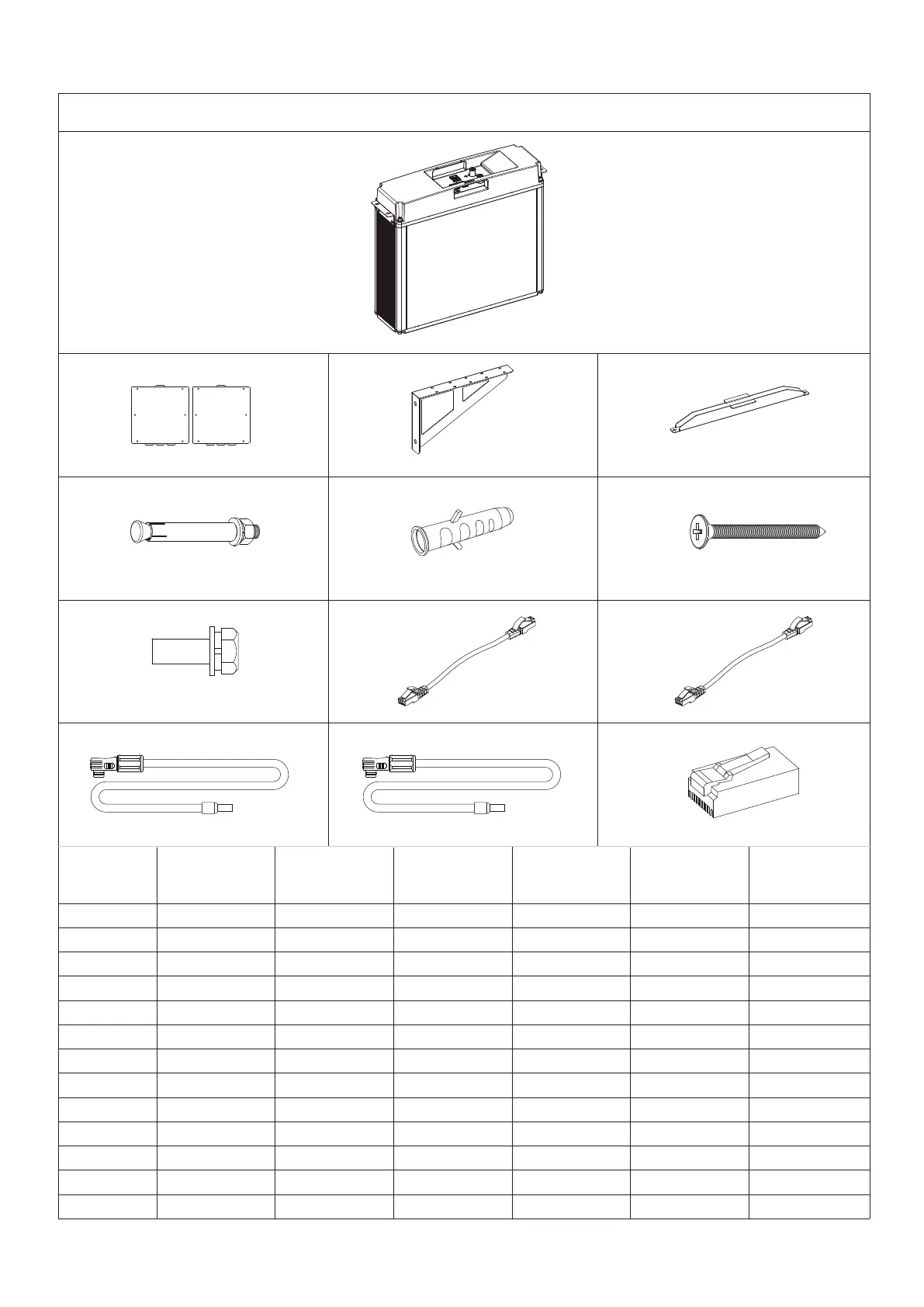

5.3 Wall-mounted installation under Parallel Mode
Junction Box
Battery
No.1
No.3
Connecting plate
No.2
Bracket
No.4
No.5
Expansion Bolt M10*80
No.6
Expansion Tube 6*30
No.7
Screw M4*30
No.8
M5*16 Bolts
No.9
Network Cable A Network Cable B
No.10
No.11 No.12
Negative Cable
No.13
Positive Cable
List
Crystal Head
Iteam 1*iPack C3.3 2*iPack C3.3 3*iPack C3.3 4*iPack C3.3 5*iPack C3.3 6*iPack C3.3
No.1 1 2 3 4 5 6
No.2 1 1 1 1 1 1
No.3 2 2 3 3 4 4
No.4 1 1 2 2 3 3
No.5 4 4 6 6 8 8
No.6 8 8 8 8 8 8
No.7 8 8 8 8 8 8
No.8 4 10 14 20 24 30
No.9 1 1 1 1 1 1
No.10 0 1 2 3 4 5
No.11 1 2 3 4 5 6
No.12 1 2 3 4 5 6
No.13 2 4 6 8 10 12
