Junction Box Installation

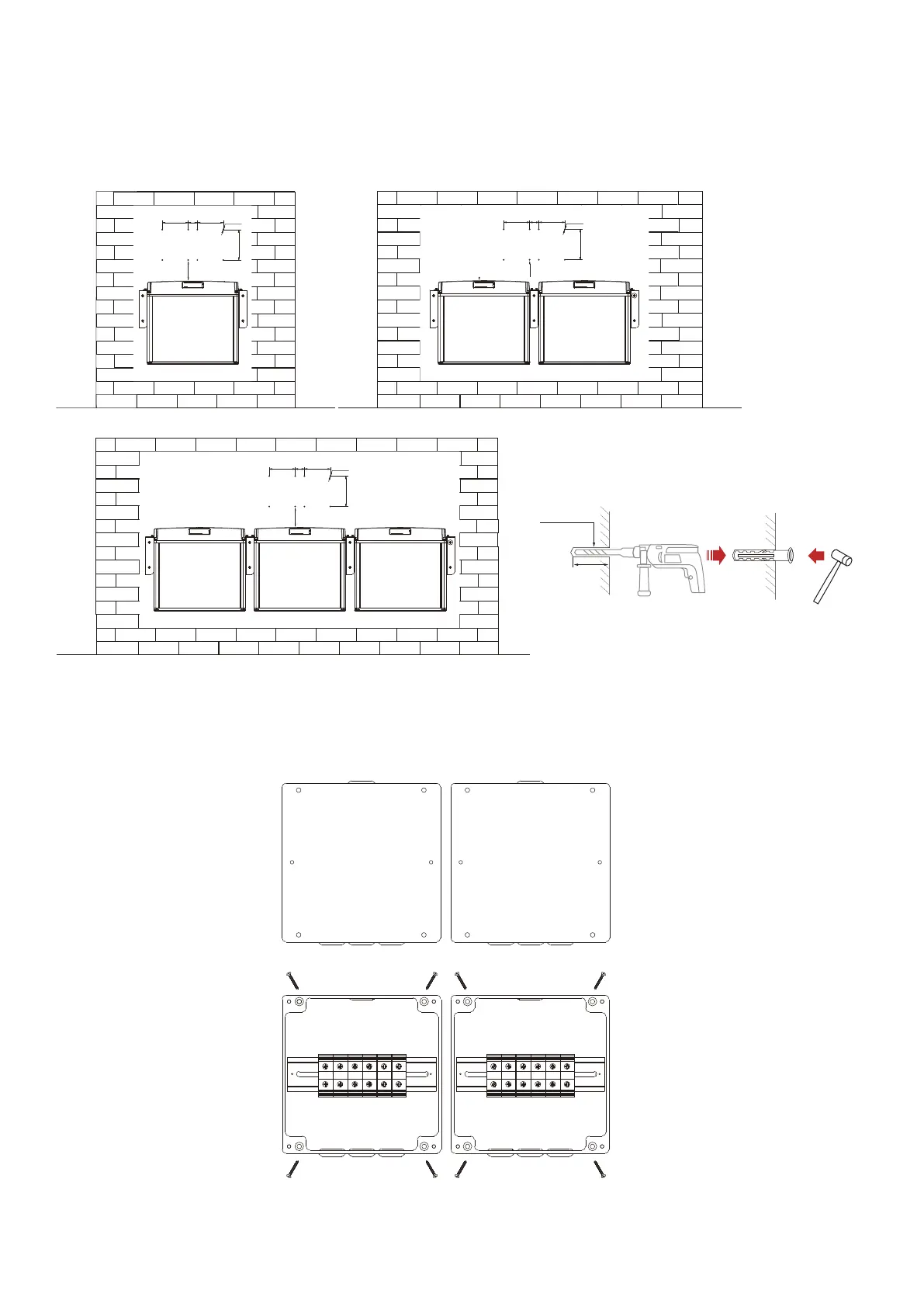

Punch 8 holes with a diameter of 6mm on the wall where fixed the junction box, the horizontal
hole spacing is 126mm, the vertical hole spacing is 146mm, the depth is 50-55mm, and place
the plastic expansion tube 6*30 in the hole.
Use M4*30 screws to fix the Junction box to the wall through the 8 fixing holes at the bottom of
the Junction box.
ħ
ħ
ħ
ħ6 mm
50-55 mm
