Replacing the Wheels
WHEN PERFORMING ANY ADJUSTMENT OR MAINTENANCE, YOU MUST FIRST SHUT OFF THE ENGINE,
WAIT FIVE (5) MINUTES TO ALLOW PARTS TO COOL AND DISCONNECT THE SPARK PLUG WIRE(S),
KEEPING IT AWAY FROM THE SPARK PLUG(S).
Tool Needed:
• 9/16" Wrench or Socket
• Wheel – Part Number 222321
1. With the weight of the machine on the wheel, loosen (counterclockwise) the Axle Bolt (Figure 25)
with a 9/16" Wrench or Socket.
2. Block the machine up off the ground so that the Wheel you are removing spins freely, remove the
Axle Bolt, Lock Washer, Flat Washer, and Outer Bushing.
3. Slide the Wheel from the Axle.
NOTE: If the Inner Bushing should slip out when removing the Wheel, simply re-insert it on the Step
&
Mow™ Axle Shaft.
4. Replace the Wheel and hardware in the reverse order.

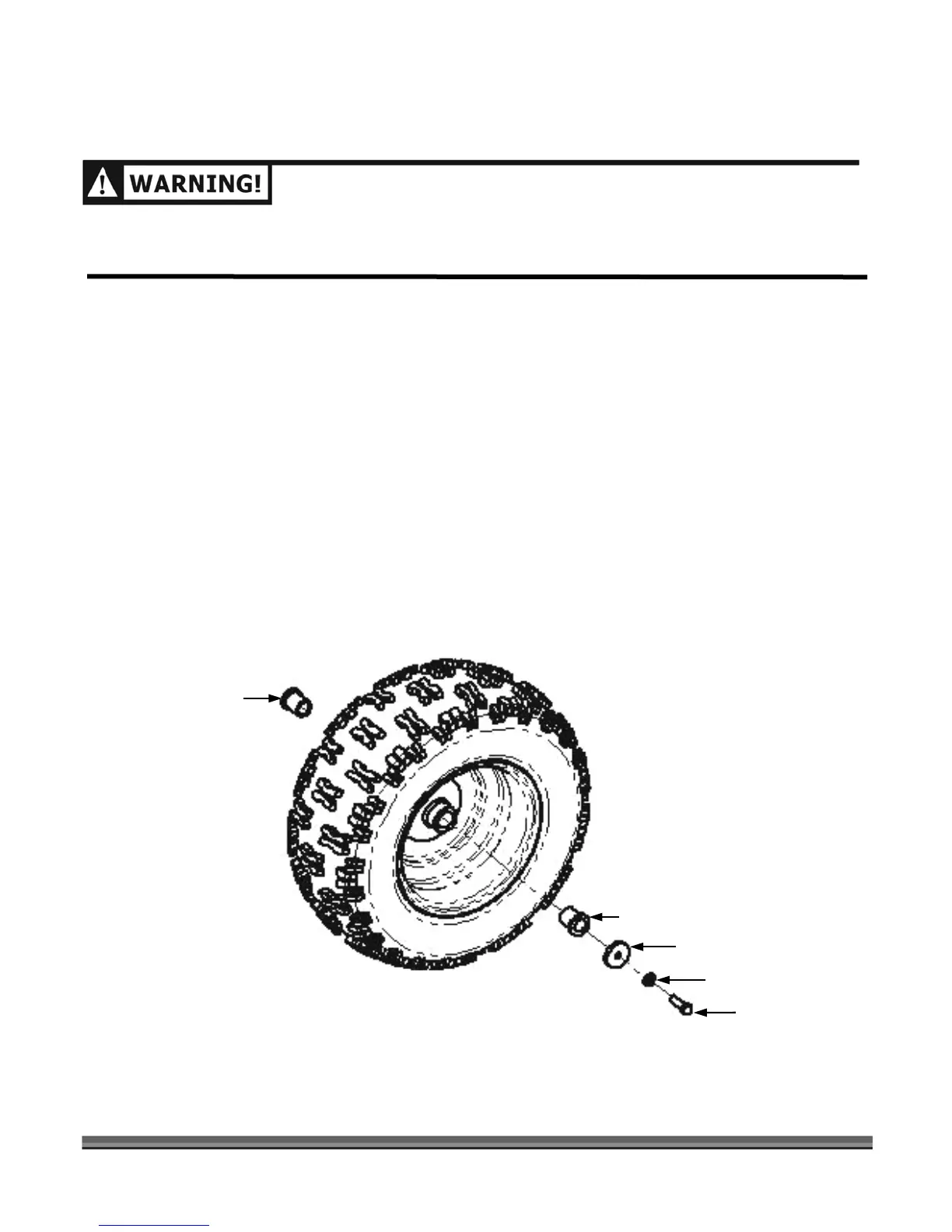

Figure 25
A
xle Bolt
Outer Bushing
Inner Bushing
Lock Washer
Flat Washer
