14 DR
®
WALK-BEHIND LEAF & LAWN VACUUM

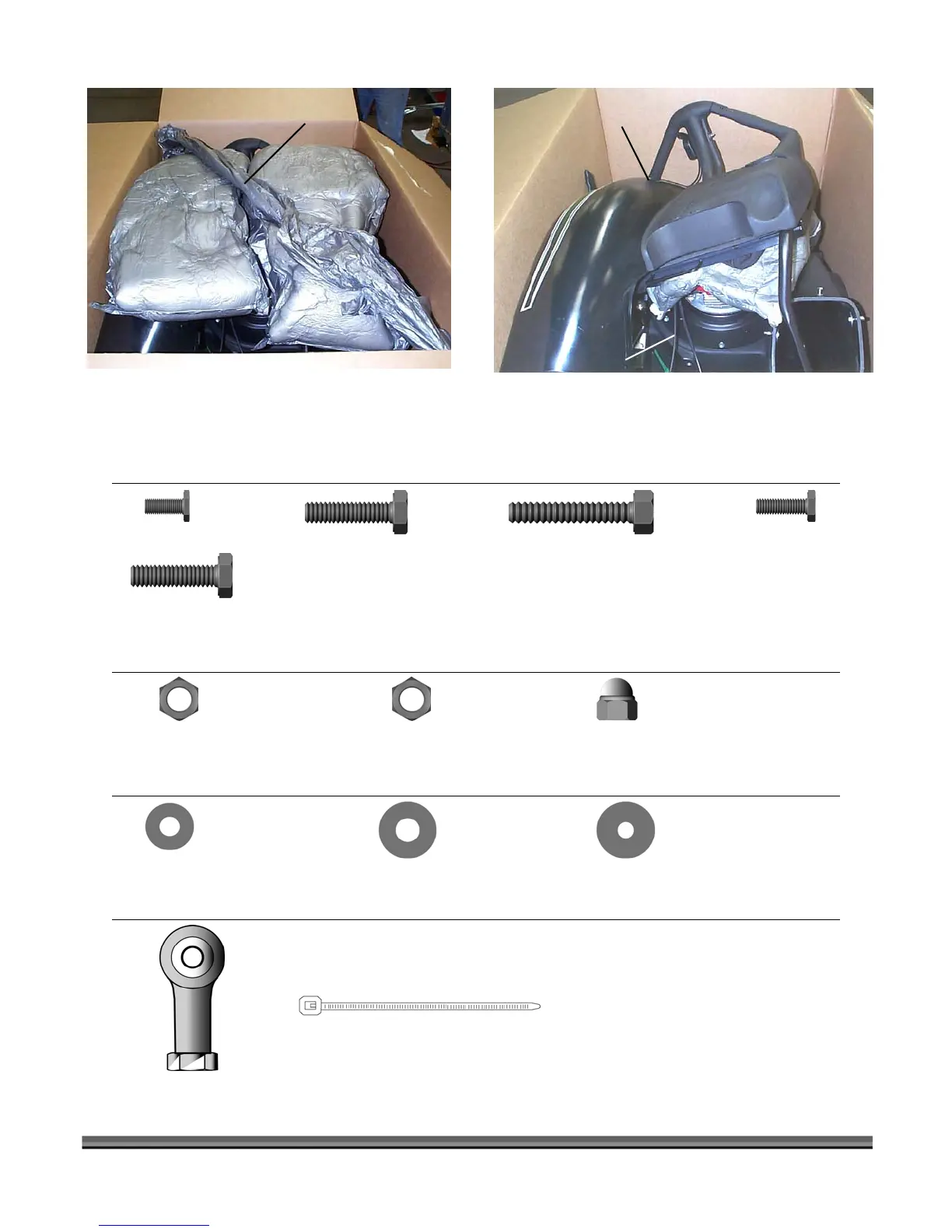

Attaching Hardware Description: (not shown to scale)
Bolts:
(1) Bolt, 1/4"-20 x 3/4" (1) Bolt, 5/16"-18 x 1-3/4" (2) Bolt, 3/8"-16 x 2-1/2" (2) Bolt, 1/4"-20 x 1"
(1) Bolt, 3/8"-16 x 1-1/2"
Nuts:
(2) Nut, Lock, 5/16-18" (2) Nut, Lock, 3/8"-16 (2) Nut, Acorn, 1/4"-20
Washers:
(5) Washer, Flat, 1/4" (8) Washer, Flat, 5/16" (2) Washer, Fender, 1/4"
Miscellaneous:
(2) Ball Joint, Rod , End, 3/8" (2) Cable Tie, 3" (1) Rod, Lift, Nozzle Door (see Figure 1)
Figure 2
Figure 3
Cut this end of carton and fold it down.
Wrapped Nozzle Door Rod
Top Shield/Upper
Handle Assy
Control
Cables
To Next Page
