18 DR
®
WALK-BEHIND LEAF & LAWN VACUUM
Attaching the Debris Bag

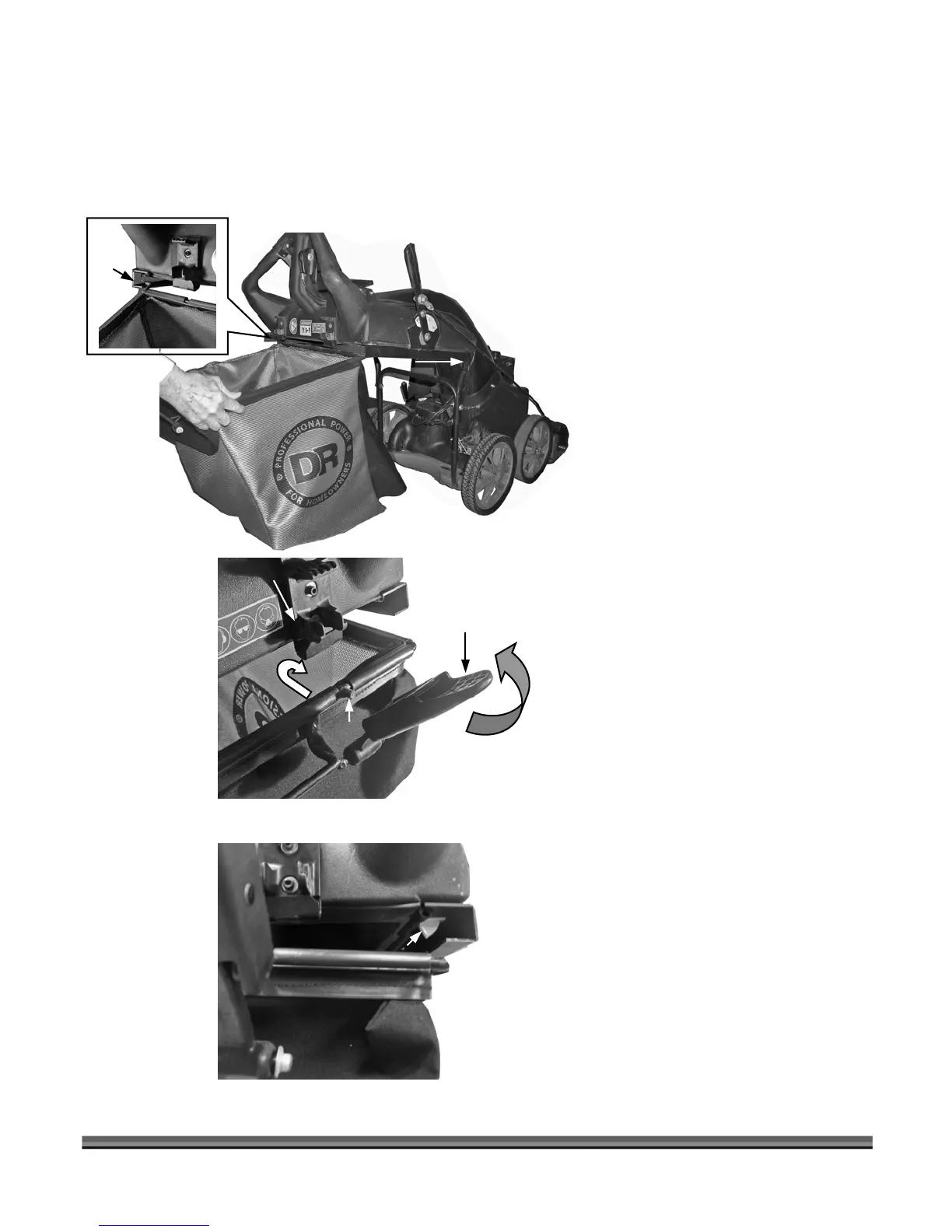

The following procedure in Figure 8 illustrates the steps necessary for attaching the Debris Bag to the Top
Shield Assembly on the DR WALK-BEHIND LEAF &LAWN VACUUM.
1. Place the Left and Right ends of the
Debris Bag frame into the Left and
Right Channels in the Top Shield
Assembly (Figure 8a).
2. Slide the Debris Bag all the way
forward in the Top Shield Assembly
channels (Figure 8a).
3. Lift the Debris Bag making sure that
the pins on the Frame (Figure 8b) go
behind the Latch Plates and then lift
and hook the two (2) Rubber Flexible
Latches on to the Latch Plates on the
Top Shield Assembly.
NOTE: Also, make sure that the Bag
Presence Interlock Switch is engaged
by the Debris Bag frame (button
pushed in) or the Engine will not
start (Figure 8c).
Figure 8c
Channel
Slide forward
Pin
Latch Plate
Rubber Flexible Latch
Interlock Switch Button
Pull Up and Hook
Figure 8a
Figure 8b
