DR Manual-Start - Push User Manual

16 DR
®
WALK-BEHIND LEAF & LAWN VACUUM
Tip: For easier access in the next steps, you may want to tilt the machine forward and block up the rear axle
between the rear wheels using a milk crate as a suggestion (Figure 5).
7. From the underside of the Top Shield (Figure 5), install a 1/4"-20 Screw with a 1/4" Fender Washer
through the Lower Housing and Top Shield.
8. Install a 1/4" Flat Washer and a 1/4" Acorn Nut (finger tight) in two (2) places (Figure 5).
9. Using 7/16" Wrenches or Sockets, tighten all of the Top Shield hardware.
10. Using 1/2" Wrenches or Sockets, tighten all of the Handle Brace hardware.

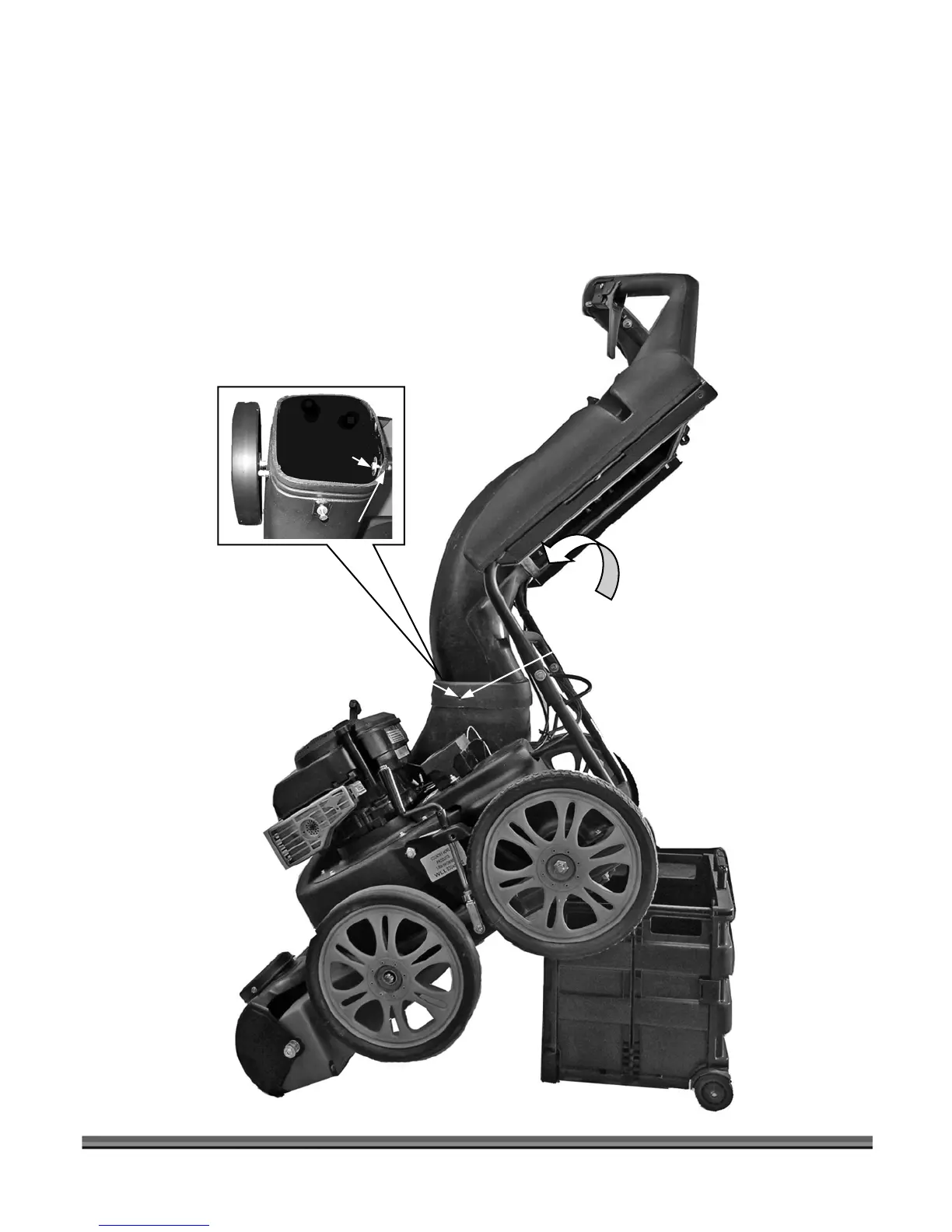

Figure 5
1/4" Acorn Nut and
Washer on the
outside
,
2
p
lace
s
1/4"-20 Screw w/Fender
Washer installed from the
inside (2 places)
Install the 1/4"-20 Screws
w/Fender Washers through
the Debris Bag opening.
Screw
w/Fender
Washe
r
Acorn Nut w/ Washer
