Supplement | Area Control Unit 33
Final assembly
10.3.2 Components for the door opening alarm with alarm transmission
to an external monitoring system
1. Attach the electrical components to the profile rail in the specified order.
2. Attach the shield (1) to the side of the terminal block (2).
3. Attach the shield (1) to the side of the yellow and green terminal block (3).
4. Attach the label to the yellow and green terminal block (3).

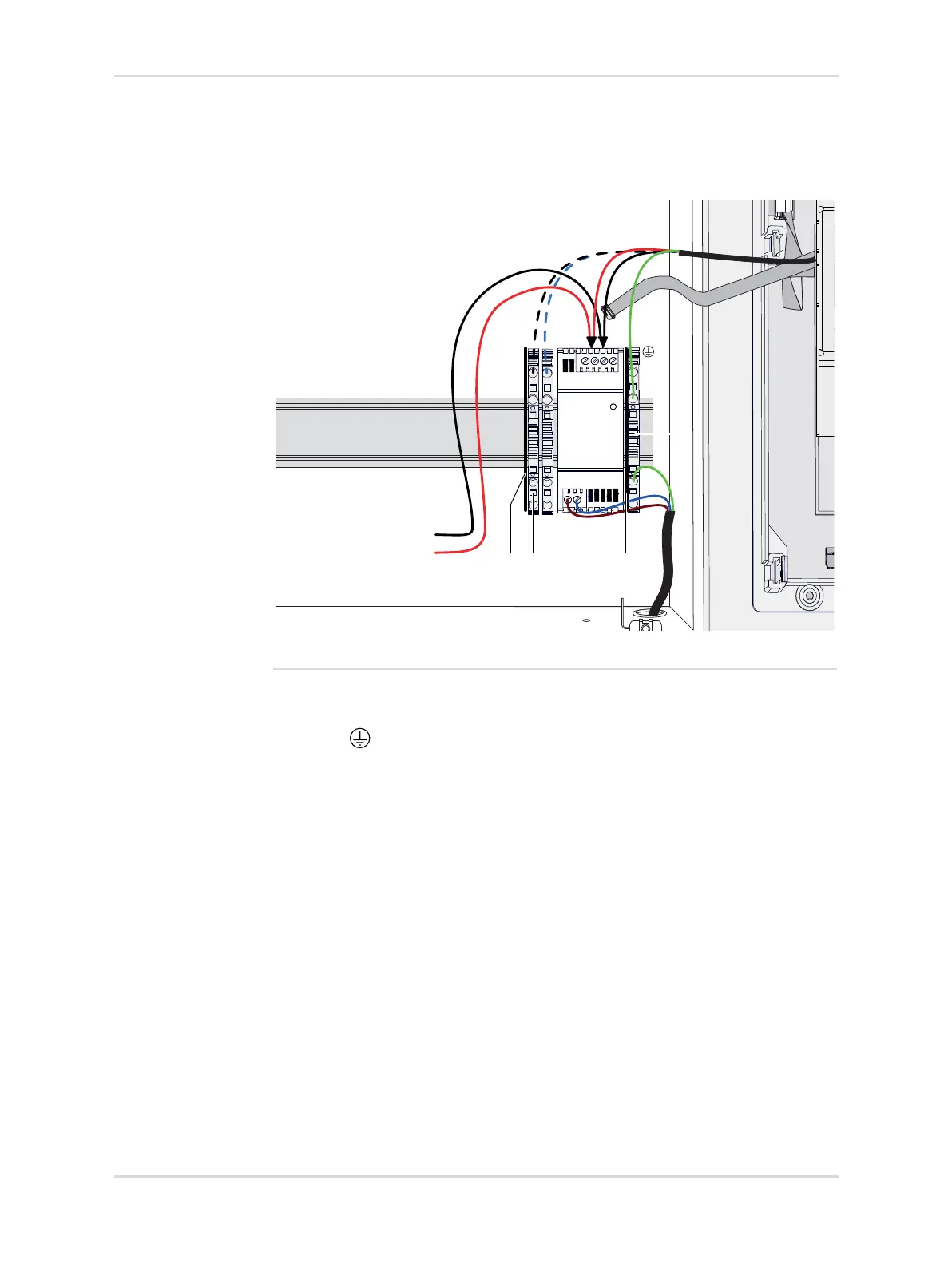

5. Connect the cables as shown in the illustration.
a. Connect the cable for alarm transmission to the terminal block (2).
6. If no VoluCount has been installed, remove the cables to VoluCount (A) in an
electrically safe manner.
50594
A Cabling to VoluCount and MainController
3
A
1 1
-
+
2
