Supplement | Area Control Unit 15
Operating concept
5 Operating concept
5.1 Digital display
This section describes the display elements and the respective status during
operation and in the event of an alarm.
5.2 Display elements

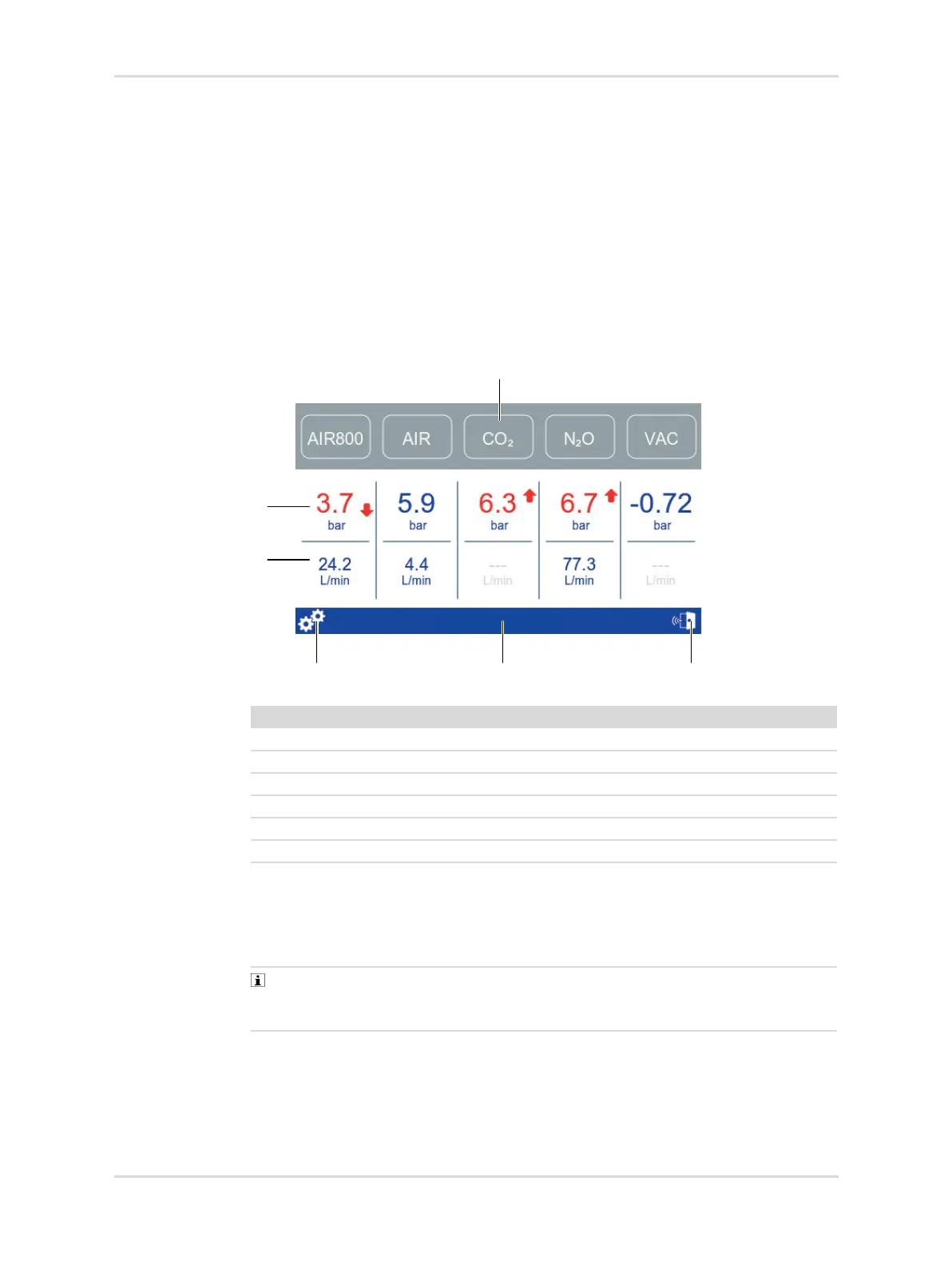

During operation, the digital display of the area control unit shows the following
information for all monitored gases.
5.3 Display status
5.3.1 Displayed values
The current pressure values displayed on the pressure gauge and the lights for
the operating status always have priority over the information shown on the digital
display.
The displayed values are the current measured values and are displayed in
different colors.
50280
No. Explanation
1 Gas type
2 Operating pressure of the corresponding type of gas
3 Volume flow rate of the corresponding type of gas
4 Configuration control element (only for DrägerService)
5 Operating status display element
6 Door opening alarm control and display element
2
5
1
3
64
