Final assembly
10.3.3 Mounting the snap-on ferrite

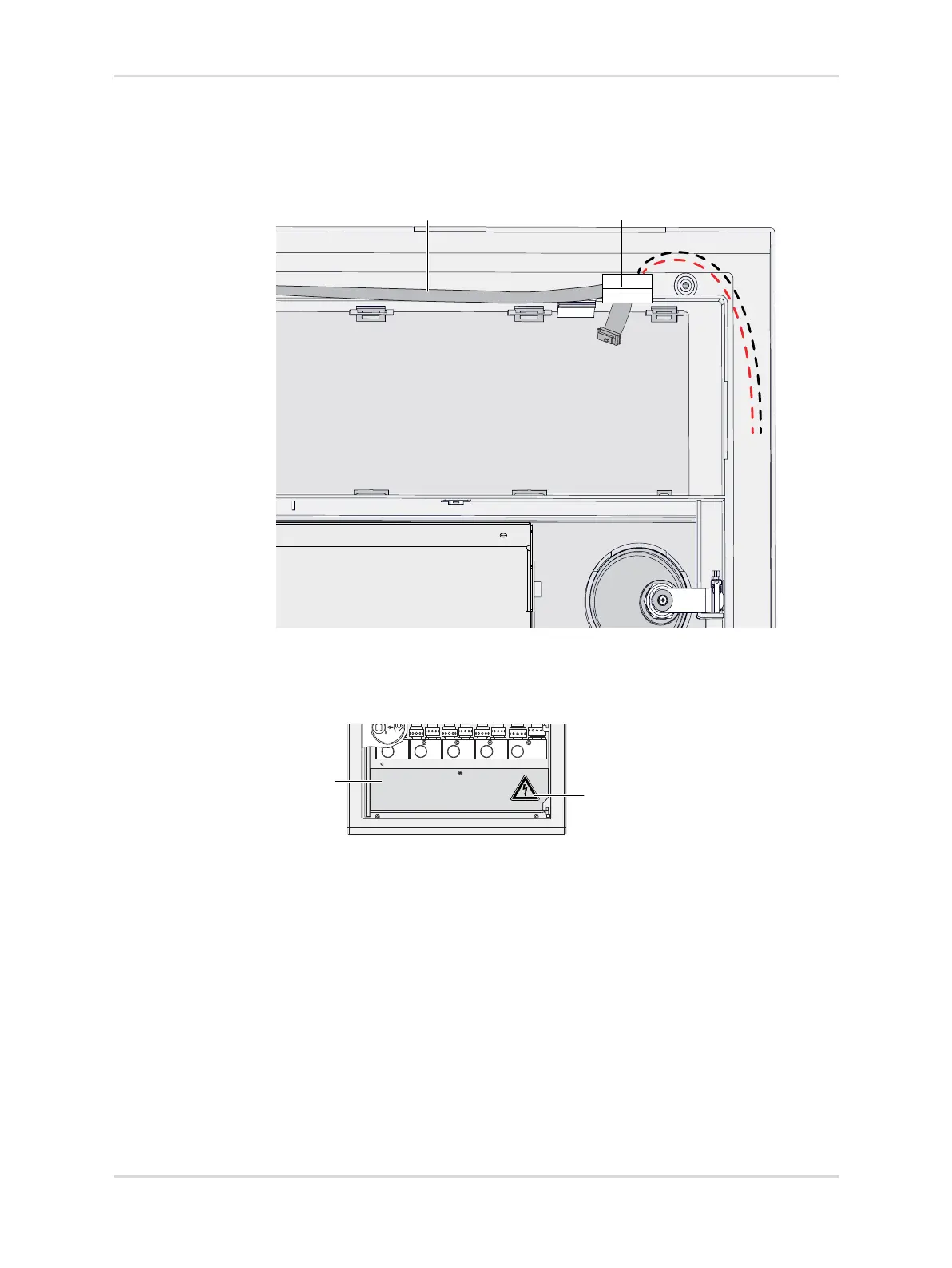

1. Wrap the cables from VoluCount (A) and the ribbon cable above the door (1)
with a snap-on ferrite (2).
10.4 Mounting the warning sign on the partition plate
1. Attach the warning sign (1) to the partition plate (2) using an adhesive.
