10.3 Cabling work
10.3.1 Components for the door opening alarm with alarm transmission
to the Dräger Alarm Management System
1. Attach the electrical components to the profile rail in the specified order.
2. Attach the shield (1) to the side of the terminal block (2).
3. Attach the L label to the beige terminal (2).
4. Attach the N label to the blue terminal (3).
5. Attach the label to the yellow and green terminal (4).

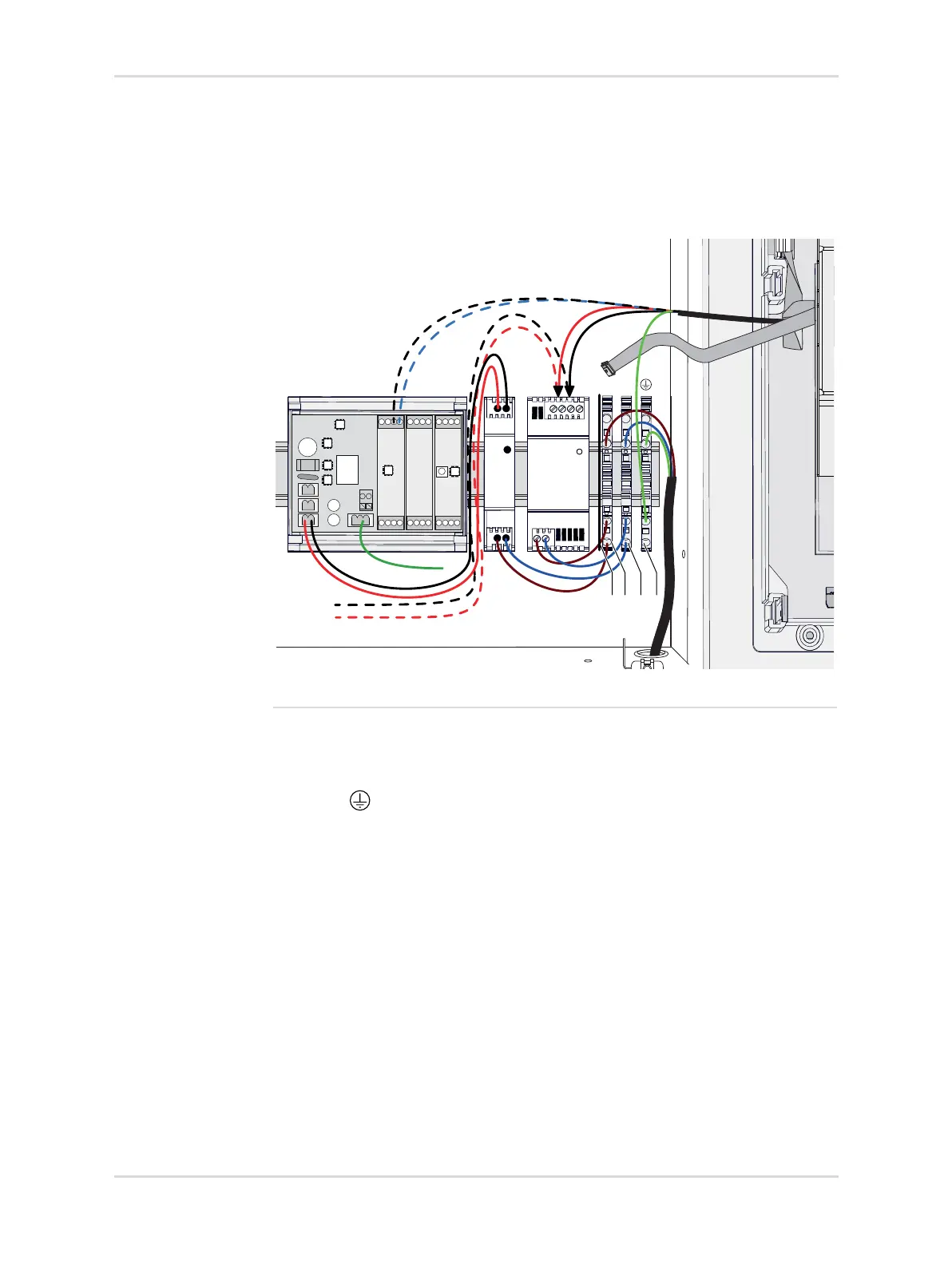

6. Connect the cables as shown in the illustration.
7. If no VoluCount has been installed, remove the cables (A) to VoluCount in an
electrically safe manner.
50580
A Cabling to VoluCount and MainController
LN
-
+
LON
1
A
2 3 4
