Dräger Area - Page 31

Supplement | Area Control Unit 31
Final assembly

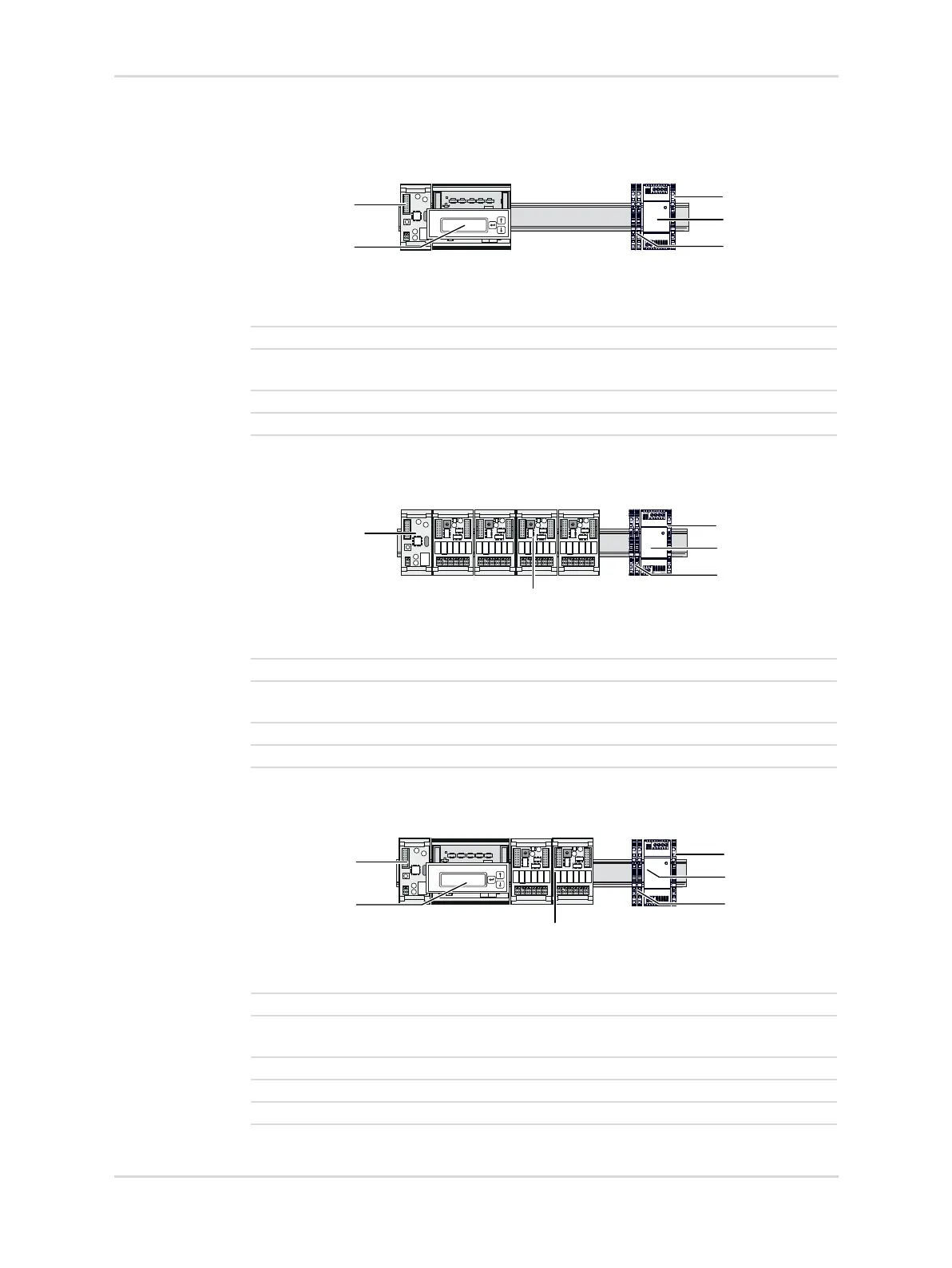

Components of the area control unit with VoluCount and interface to the
Dräger Alarm Management System
Components of the area control unit with interfaces to an external monitoring
system and to the Dräger Alarm Management System
Components of the area control unit with VoluCount and interfaces to an
external monitoring system and to the Dräger Alarm Management System
50338
1 Protective grounding
2 Power supply unit, 230 V, AC 12 V, DC 1.5 A
3 Terminal blocks (see "Components for the door opening alarm with alarm
transmission to an external monitoring system", page 33)
4 Volume flow measurement (VoluCount)
5 Interfaces to the Dräger Alarm Management System (Alarm System Interface)
50341
1 Protective grounding
2 Power supply unit, 230 V, AC 12 V, DC 1.5 A
3 Terminal blocks (see "Components for the door opening alarm with alarm
transmission to an external monitoring system", page 33)
4 External monitoring system (relay modules for dry contacts)
5 Interfaces to the Dräger Alarm Management System (Alarm System Interface)
50340
1 Protective grounding
2 Power supply unit, 230 V, AC 12 V, DC 1.5 A
3 Terminal blocks (see "Components for the door opening alarm with alarm
transmission to an external monitoring system", page 33)
4 External monitoring system (relay modules for dry contacts)
5 Volume flow measurement (VoluCount)
6 Interfaces to the Dräger Alarm Management System (Alarm System Interface)
5
1
3
4
2
5
1
4
3
2
6
1
3
5
4
2
