30 Supplement | Area Control Unit

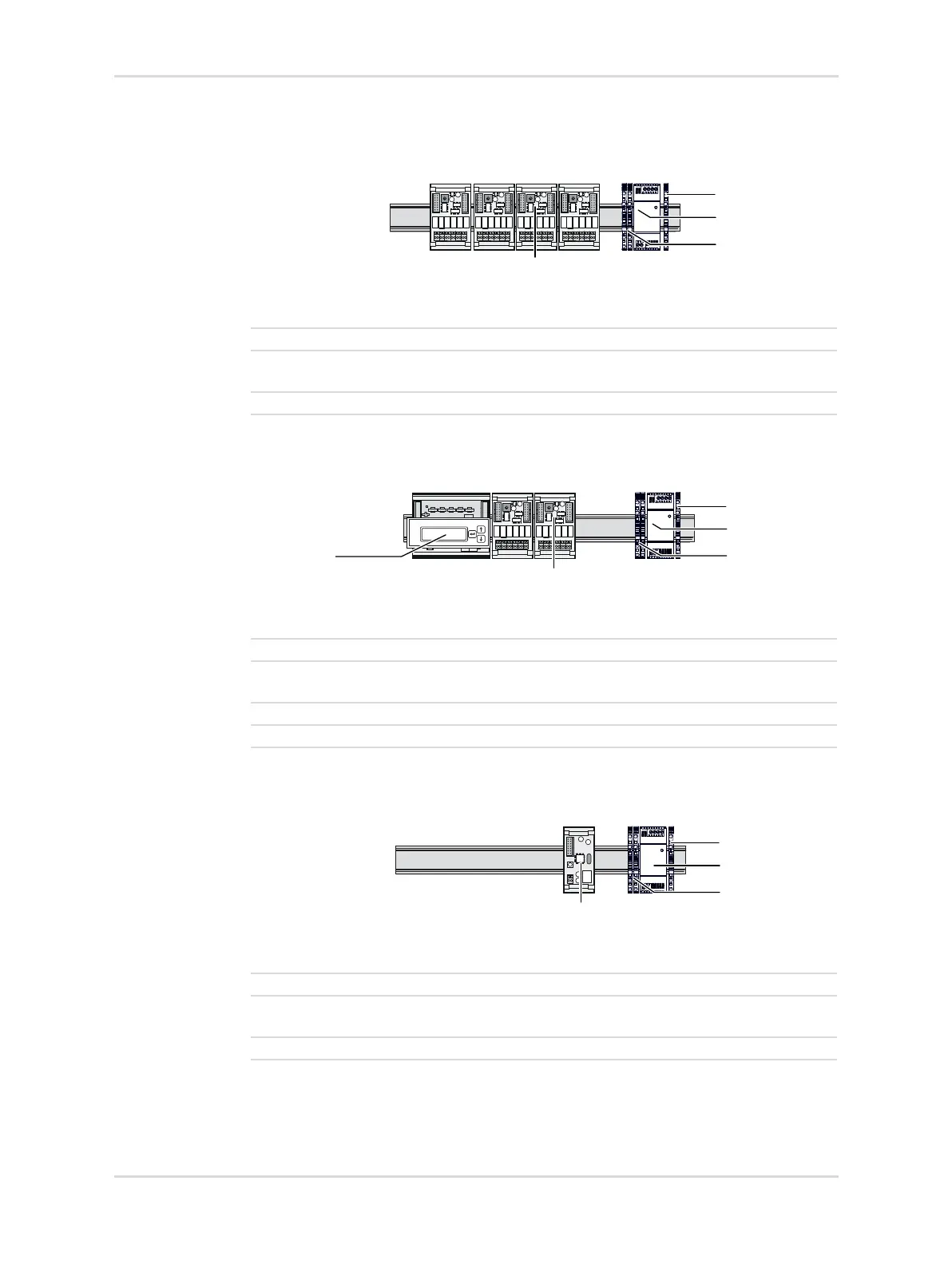

Final assembly
Components of the area control unit with interface to an external monitoring
system
Components of the area control unit with VoluCount and interface to an
external monitoring system
Components of the area control unit with interface to the Dräger Alarm
Management System
50337
1 Protective grounding
2 Power supply unit, 230 V, AC 12 V, DC 1.5 A
3 Terminal blocks (see "Components for the door opening alarm with alarm
transmission to an external monitoring system", page 33)
4 External monitoring system (relay modules for dry contacts)
50336
1 Protective grounding
2 Power supply unit, 230 V, AC 12 V, DC 1.5 A
3 Terminal blocks (see "Components for the door opening alarm with alarm
transmission to an external monitoring system", page 33)
4 External monitoring system (relay modules for dry contacts)
5 Volume flow measurement (VoluCount)
50339
1 Protective grounding
2 Power supply unit, 230 V, AC 12 V, DC 1.5 A
3 Terminal blocks (see "Components for the door opening alarm with alarm
transmission to an external monitoring system", page 33)
4 Interfaces to the Dräger Alarm Management System (Alarm System Interface)
1
3
4
2
1
3
5
4
2
1
3
4
2
