Supplement | Area Control Unit 29

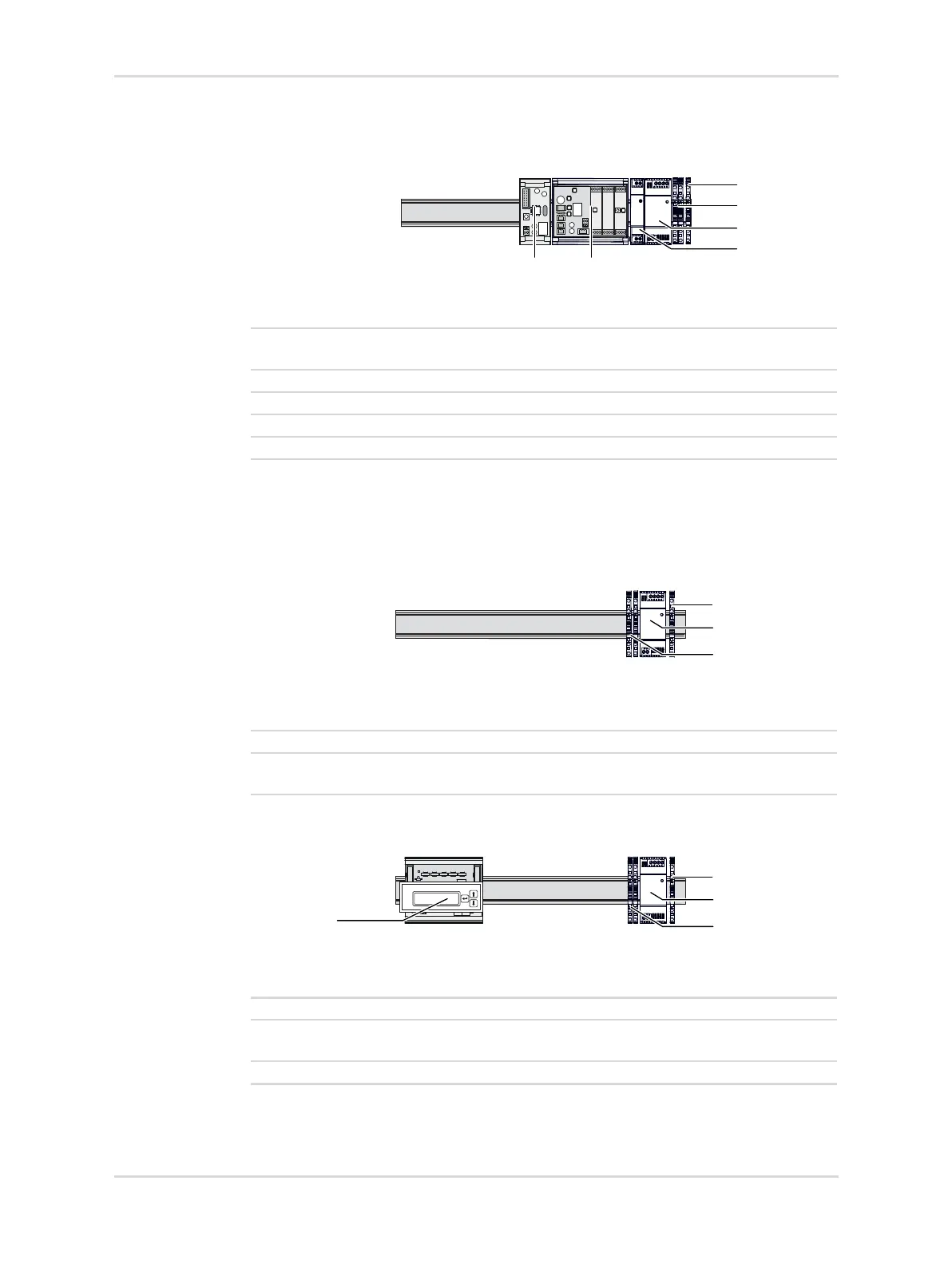

Final assembly
Components of the area control unit with interfaces to the Dräger Alarm
Management System
10.2.2 Components for the door opening alarm with alarm transmission
to an external monitoring system
Components of the area control unit, basic
Components of the area control unit with VoluCount
50333
1 Protective grounding
2 Terminal blocks (see "Components for the door opening alarm with alarm
transmission to the Dräger Alarm Management System", page 32)
3 Power supply unit, 230 V, AC 12 V, DC 1.5 A
4 Power supply unit, 230 V AC, 24 V DC, 0.5 A, for door opening alarm
5 Door opening alarm (Analog Input Module)
6 Interfaces to the Dräger Alarm Management System (Alarm System Interface)
6 5
1
4
3
2
50335
1 Protective grounding
2 Power supply unit, 230 V, AC 12 V, DC 1.5 A
3 Terminal blocks (see "Components for the door opening alarm with alarm
transmission to an external monitoring system", page 33)
50334
1 Protective grounding
2 Power supply unit, 230 V, AC 12 V, DC 1.5 A
3 Terminal blocks (see "Components for the door opening alarm with alarm
transmission to an external monitoring system", page 33)
4 Volume flow measurement (VoluCount)
1
3
2
1
3
4
2
