20.3 Dismounting the Ventilator from the Gas Box
• Switch control box off using ON/OFF switch (ON/OFF switch is located on rear
panel of control box).
• Unplug power plug from AC outlet.
• Remove fastening screws 1 of cover 2 (secured to rear panel of Fabius) and
place cover 2 aside.

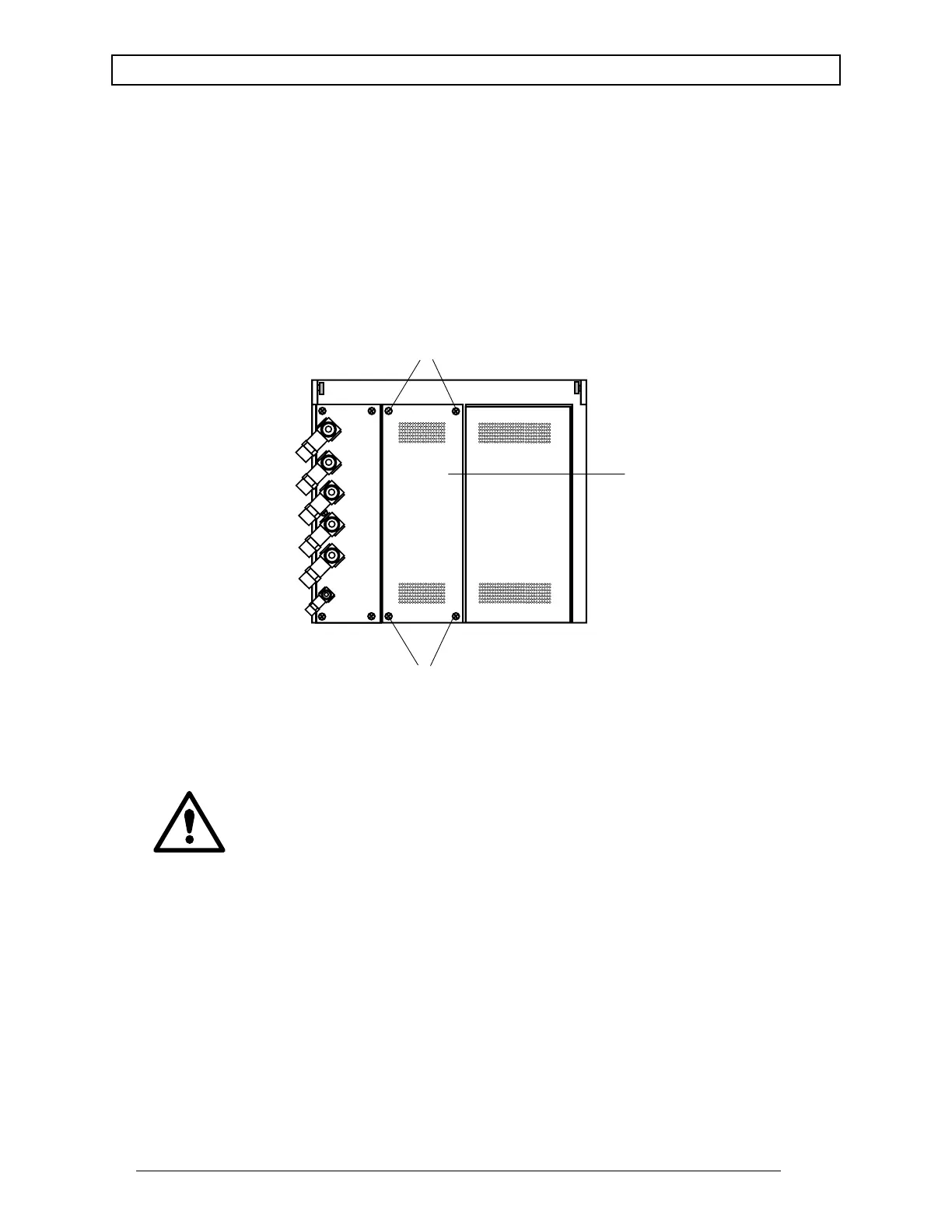

Fig.109:Rear view of Fabius, removing the fastening screws
Electrostatic discharge can damage electrostatic sensitive
devices. Use a static-dissipative mat and a wrist strap when
handling electrostatic sensitive devices.
1
1
2
