Dräger Polytron 5000 User Manual

12 Dräger Polytron 5000

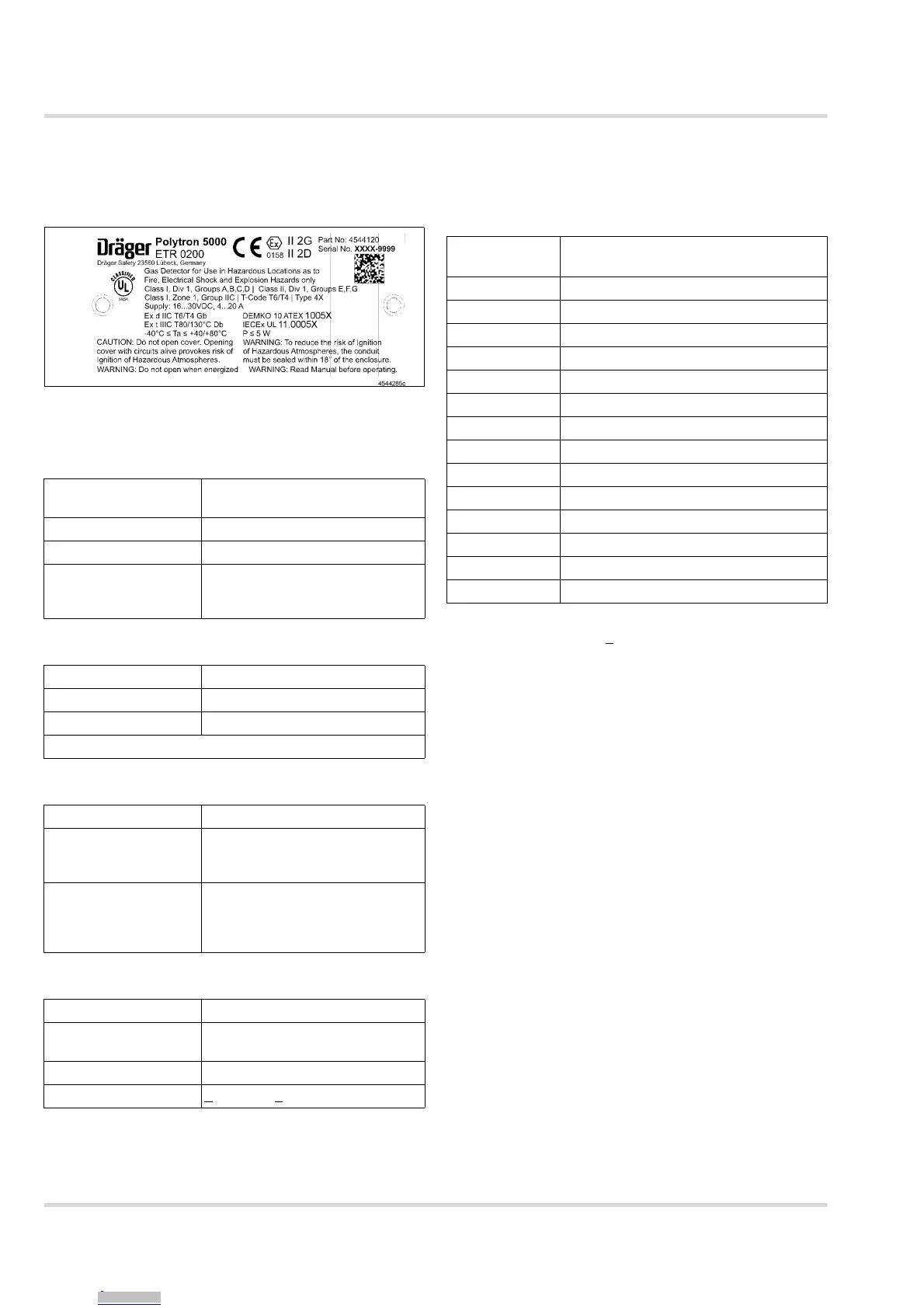

Technical data
6 Technical data
6.1 Approvals
See printout of approval label.
6.2 Signal transmission to central control
unit
6.3 Voltage of power supply
6.4 Physical specifications
6.5 Environmental parameters
6.6 Ambient influences
See sensor data sheets.
7 Default values
Analog Transmission by 2-core shielded
cable
Measurement current 4 to 20 mA
Transmitter fault <2 mA
Maintenance signal 4 ± 1 mA, 1 Hz modulation or
ste
ady 3 mA signal
(user selectable)
Operating voltage 16 to 30 VDC
Operating current 2.0 to 21 mA @ 24 VDC
Maximum input current 21 mA @ 24 VDC
Connector accepts 24 to 12 AWG wire (0.2 to 2.5 mm
2
)
Enclosure NEMA 4x IP 65, 66, 67
Size (approx.) L x W x D, approx.
9.5” x 5.8” x 5.1”
(240 x 150 x 130 mm)
Weight (approx.) aluminum version:
5.9 lbs (2.7 kg)
stainless steel version:
9.7 lbs (4.4 kg)
Temperature –40 to +150 °F, (–40 to +65 °C)
Pressure 20.7 to 38.4 in. of Hg
(700 to 1300 mbar)
Humidity 5 to 95 %RH, non-condensing
Maximum Air Velocity
< 19.5 ft/s (< 6 m/s)
Sample
Polytron 5000
FSD
(Full Scale Deflection, user adjustable)
CO 50 / 100 / 200 / 300 / 500 ppm
H
2
S zero-bias 10 / 20 / 50 / 100 ppm
H
2
S LC 10 / 20 / 50 / 100 ppm
H
2
S HC 100 / 200 / 300 / 500 ppm
O
2
25 vol%
NH
3
LC
1
1) Only to be used with Polytron 5000 General Purpose part number
4544165.
50 / 100 ppm
NH
3
HC
1
300 / 500 ppm
Cl
2
1
5 / 10 / 20 / 50 ppm
SO
2
1
5 / 10 / 20 / 50 / 100 ppm
NO
2
2) Notice: Gases which react with moisture will not repeatedly pass
through the wire mesh, if the transmitter is installed in a non-
climate controlled environment. If it can be ensured, that
condensation on the wire mesh will not occur; all sensors can be
used in the explosion proof versions 4544120, 4544122.
Otherwise, these sensors should only be used with Polytron 5000
General Purpose 4544165.
50 / 100 ppm
NO
2
1
5 / 10 / 20 / 100 ppm
H
2
500 ppm
H
2
O
2
LC
1
5 / 10 / 20 / 50 / 100 ppm
EO
2
20 / 50 / 100 ppm
Resolution: if FSD > 50 the resolution is 1
if FSD
< 50 the resolution is 0.1
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Dräger Polytron 5000 Specifications

General

Type	Gas Detector
Housing Material	Aluminum or Stainless Steel
Detection Principle	Electrochemical sensor
Gases Detected	Oxygen, Toxic and Combustible gases
Display	Backlit LCD
Output Signal	4 to 20 mA, HART
Operating Temperature	-40 °C to +65 °C (depending on the sensor)
Ingress Protection	IP66
Approvals	ATEX, IECEx
Humidity	0 to 95% RH, non-condensing
