14 Dräger Polytron 5100
Operation
4.2 Menu navigation

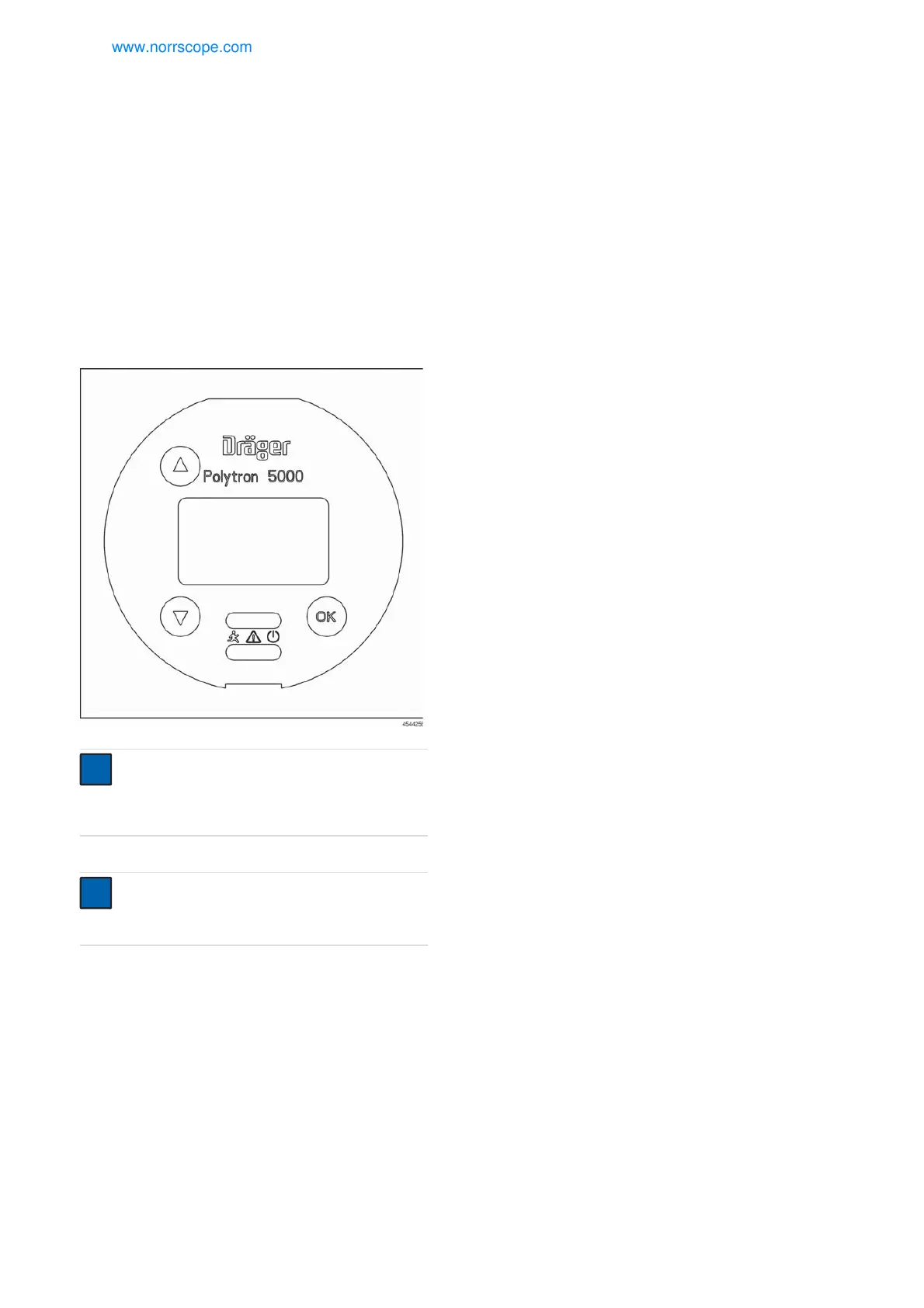

Tapping the magnetic wand (part number 4544101, blue body,
white logo) over [UP] / [DOWN] arrows scrolls through the
menu selections.
z
Tapping [OK] confirms a selection.
When the last menu item is reached, the menu will bottom-out,
and [UP] has to be used to scroll back up through the menu.
The active menu item as well as its current value or status will
flash on the display as it scrolls.
i
i
NOTICE
The instrument is designed for the magnetic wand to
be used with the enclosure lid in place. If the enclosure
lid is not in place, the magnetic wand may activate two
or more buttons at once (cross-talk).
i
i
NOTICE
After 15 minutes of inactivity within the menu, the
instrument times-out and returns to normal operation
without accepting any changes.
4.2.1 Password
The use of a password is optional. A password consists of a
4-digit number from 0000 to 9999.
A value of 0000 disables the
password protection and allows anyone to access the menu.
z
If the password is enabled, from normal operation, tap
[DOWN].
z
The 4-digit LCD will then show ‘0000’, with the first zero on
the left blinking.
z
Tap [UP] / [DOWN] to increment or decrement this digit,
then tap [OK].
z
The second digit will blink; set the correct value by tapping
[UP] / [DOWN], then tap [OK].
z
Repeat the process for the other two digits.
z
Tap [OK] when the full password is displayed.
If the displayed value matches the set password, access will
be given to the rest of the menu. If an incorrect password is
entered, the instrument will return to normal operation, see
Section 4.3.18 on Page 18.
4.2.2 Changing parameter values / status
Select the menu item to be accessed tapping [UP] / [DOWN].
z
When the desired menu item is displayed, tap [OK].
The current value or status will flash to indicate a change
to data entry mode.
z
[UP] / [DOWN] allow adjusting the value of a numerical
parameter or scrolling through preset choices.
z
Once the display shows the intended value or choice, tap
[OK] to validate the new parameter and return to the main
menu.
4.2.3 Exiting the menu
To get back into the measurement mode, tap [UP] until the
menu is exited.
