Installing Transmitters Polytron Ex resp. Ex R
Page 10 of 40
9023744 - 3rd edition - October 2005

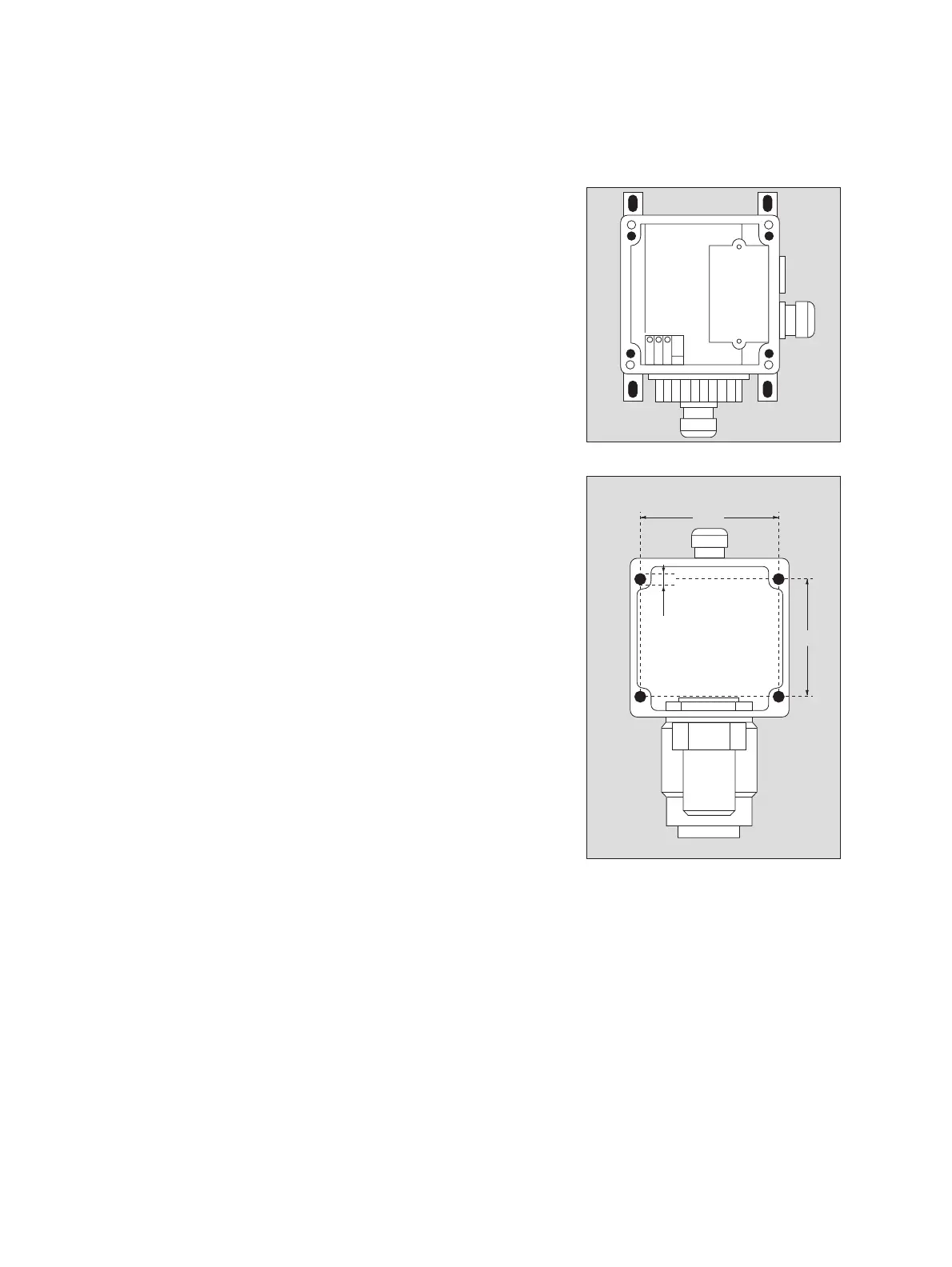

Mounting of the Transmitter Polytron Ex R
●
Mount at an accessible place
●
Observe maximum length of 10 m of the pre-conditioned connection cable bet-
ween sensing head SE Ex and transmitter Polytron Ex R.
● Mount with four screws through the housing
or
● by means of the mounting brackets.
Mounting the Sensing Head SE Ex
● Mount with four screws through the housing.
— Further information concerning installation see installation sheet which is coming
with each sensing head SE Ex.
00523744_1.eps00623744_1.eps
68
45
4,5
