Vigor2133 Series User’s Guide
365

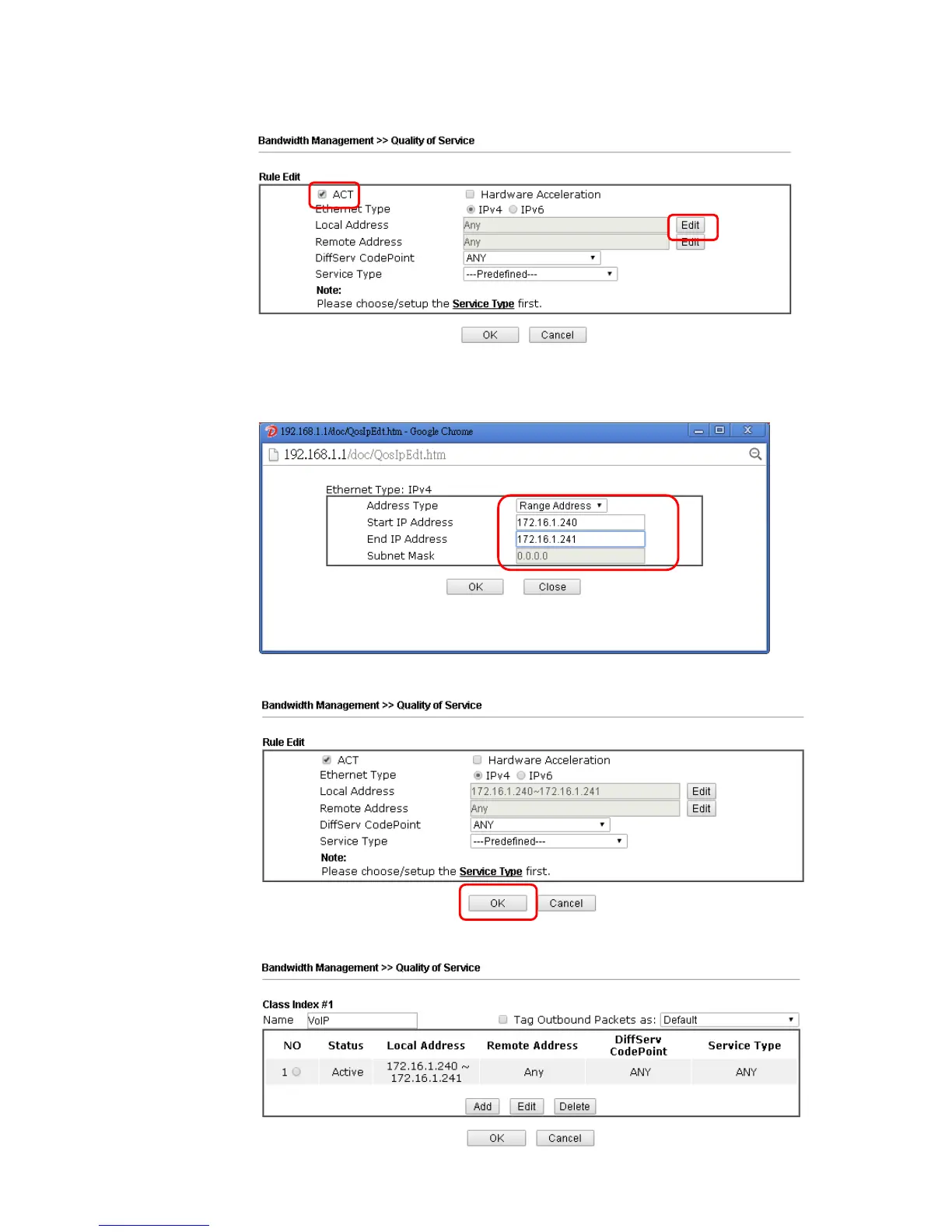

4. Check the box of ACT. Click Edit to specify the local address.
5. In the pop-up window, choose Range Address as the Address Type and type the start IP
address and end IP address in relational fields. Click OK to save the settings and exit the
window.
6. Click OK again to save the settings.
7. The class rule for VoIP has been set. Click OK to return to previous page.
