Draytek Vigor2830 Series User Manual

Vigor2830 Series User’s Guide
306
3
3
.
.
1
1
4
4
.
.
6
6
W
W
D
D
S
S
WDS means Wireless Distribution System. It is a protocol for connecting two access points
(AP) wirelessly. Usually, it can be used for the following application:
 Provide bridge traffic between two LANs through the air.
 Extend the coverage range of a WLAN.
To meet the above requirement, two WDS modes are implemented in Vigor router. One is

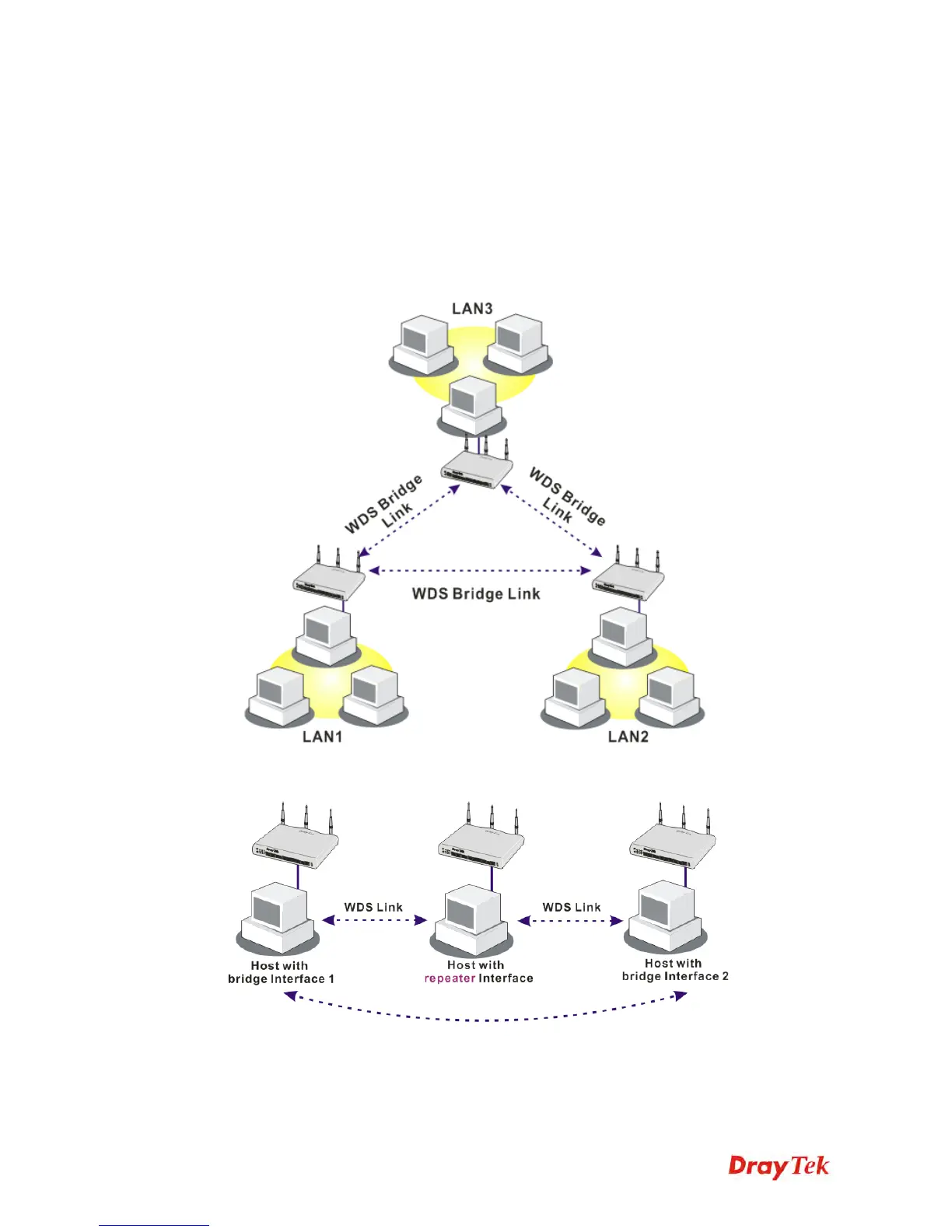

Bridge, the other is Repeater. Below shows the function of WDS-bridge interface:
The application for the WDS-Repeater mode is depicted as below:
The major difference between these two modes is that: while in Repeater mode, the packets
received from one peer AP can be repeated to another peer AP through WDS links. Yet in
Bridge mode, packets received from a WDS link will only be forwarded to local wired or
wireless hosts. In other words, only Repeater mode can do WDS-to-WDS packet forwarding.
