Draytek Vigor2830 Series User Manual

Vigor2830 Series User’s Guide
376
5. In the page of LAN >> General Setup, check the Status box of LAN2 and LAN3 and
enable the function of DHCP.
After finishing the above configuration, the equipment connecting to Vigor2830 LAN
Port can get the corresponding IP address of the network segment.
The equipment connecting to Vigor2830 LAN Port 1 (LAN1) can get the IP address of
192.168.1.0/24
The equipment connecting to Vigor2830 LAN Port 2 (LAN2) can get the IP address of
192.168.3.0/24
The equipment connecting to Vigor2830 LAN Port 3 and Port 4 (LAN3) can get the IP
address of 192.168.5.0/24

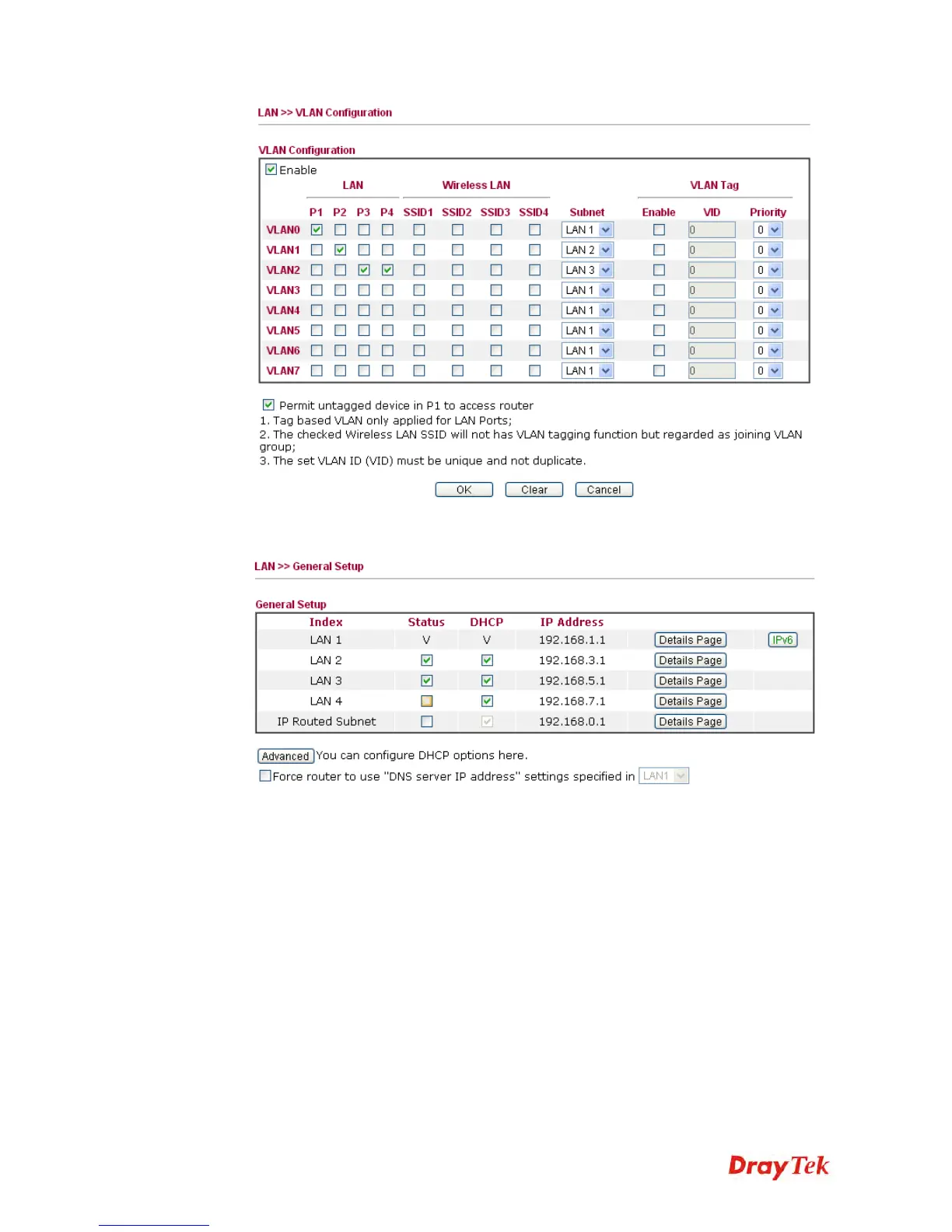

For the detailed settings of the network segment, open LAN>>General Setup and click
Details Page. Adjust the settings for your request. Refer to the following figure.
