Draytek Vigor2830 Series User Manual

Vigor2830 Series User’s Guide
378
I
I
I
I
.
.
T
T
a
a
g
g
B
B
a
a
s
s
e
e
d
d
V
V
L
L
A
A
N
N
By identifying the tagged message, Vigor2830 can divide the LAN Port into several VLAN
groups. Such LAN port with tagged information will accept the packets only with VLAN ID
number.

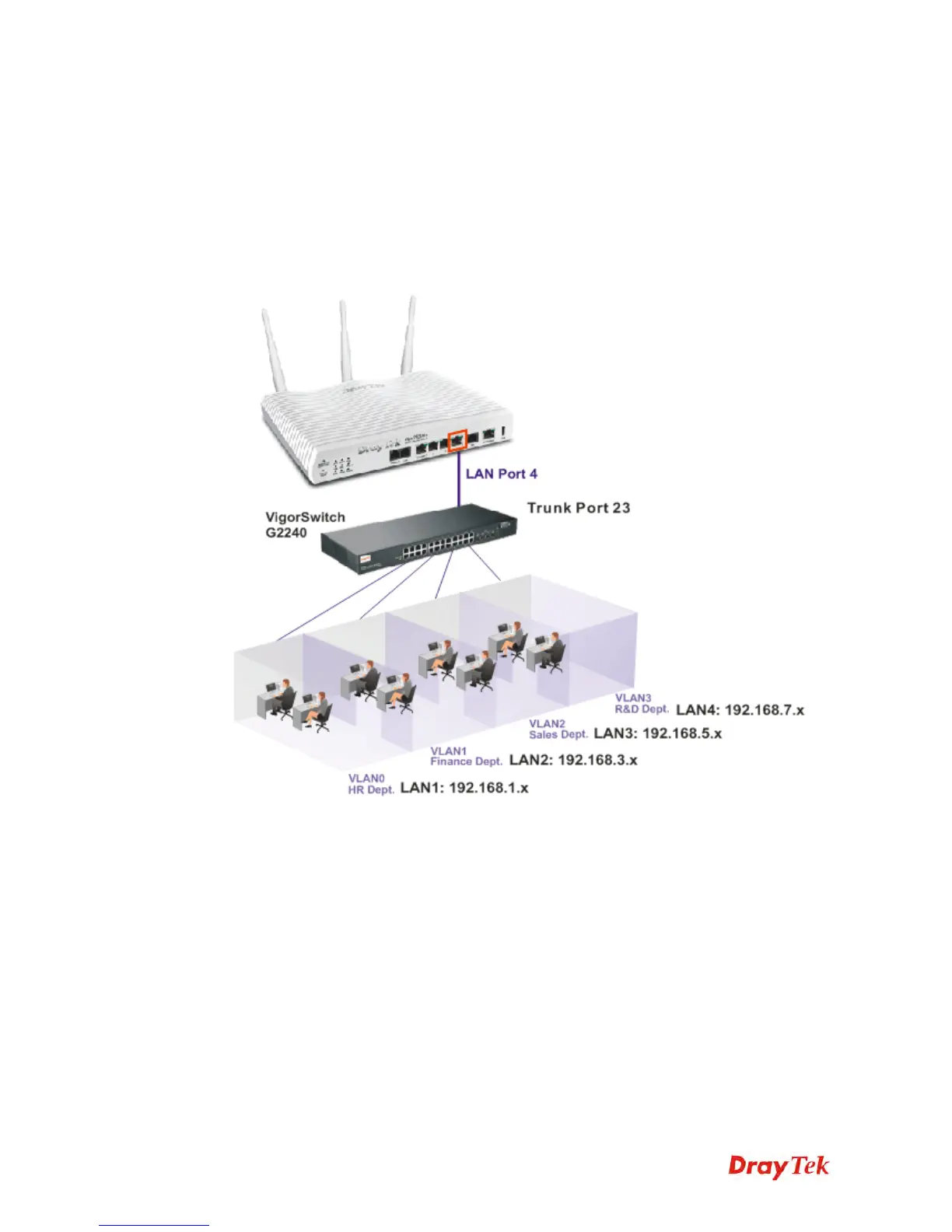

For example, Vigor2830 can divide the internal departments of a company into four different
groups by using VigorSwitch 2240. Each group uses different network segment and does not
link for each other. VigorSwitch 2240 Trunk Port 23 and Vigor2830 LAN Port 4 are
connected with network cable. See the following graphic for an example.
Group 0 (VLAN0)( Human Resource): LAN Port 4 IP: 192.168.1.0/24
Group 1 (VLAN1)( Finance Dept): LAN Port 4 IP: 192.168.3.0/24
Group 2 (VLAN2)( Sales Dept.): LAN Port 4 IP: 192.168.5.0/24
Group 3 (VLAN3)(R&D): LAN Port 4 IP: 192.168.7.0/24
Configuration for Vigor2830:
1. In the page of LAN >> VLAN Configuration, check the box of Enable to enable the
function of VLAN Configuration.
2. To activate the function of VLAN Tag for VLAN0 setting, check the box of Enable and
type the value (7) for VID setting. Then check P4 and set LAN1 as the Subnet.
3. To activate the function of VLAN Tag for VLAN1 setting, check the box of Enable and
type the value (8) for VID setting. Then check P4 and set LAN2 as the Subnet.
4. To activate the function of VLAN Tag for VLAN2 setting, check the box of Enable and
type the value (9) for VID setting. Then check P4 and set LAN3 as the Subnet.
