Vigor2830 Series User’s Guide
437
3.

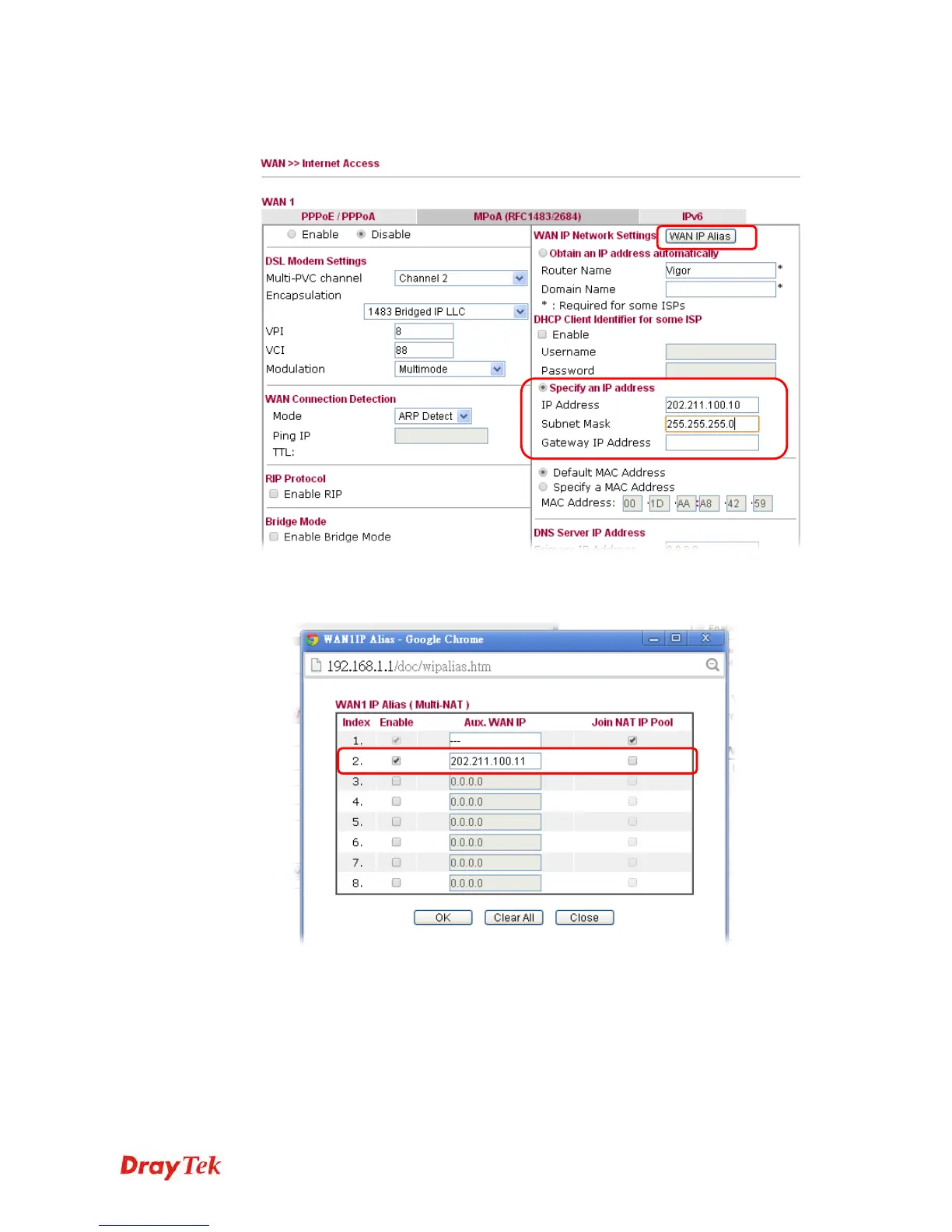

Click the
Details Page
of WAN 1 to open the following page. Fro
m the above figure, set
main WAN IP address as
202.211.100.10
.
Click the
WAN IP Alias
button to configure the other P address which is
202.211.100.11.
Make sure
Join IP NAT Pool
is not checked. Click
OK
to save the settings.
448
450
Table of Contents
Table of Contents
7
Introduction
13
LED Indicators and Connectors
14
For Vigor2830
14
For Vigor2830N/ Vigor2830N-Plus
16
For Vigor2830Vn/Vigor2830Vn-Plus
18
Hardware Installation
20
Printer Installation
21
Accessing Web Page
28
Changing Password
29
Online Status
31
Physical Connection
31
Virtual WAN
33
Saving Configuration
33
Quick Setup
35
Quick Start Wizard
35
For WAN1 (ADSL)
36
For WAN2 (Ethernet)
41
For WAN3 (USB)
50
Service Activation Wizard
52
VPN Client Wizard
56
VPN Server Wizard
62
Wireless Wizard
67
Voip Wizard
70
Registering Vigor Router
71
Advanced Configuration
75
Wan
75
Basics of Internet Protocol (IP) Network
75
General Setup
77
Internet Access
83
Multi-Pvcs
110
Lan
115
Basics of LAN
115
General Setup
117
Static Route
126
VLAN (Multi-Subnet)
130
Bind IP to MAC
133
LAN Port Mirror
134
Wired 802.1X
135
Web Portal Setup
136
Load-Balance /Route Policy
138
Nat
143
Port Redirection
143
DMZ Host
146
Open Ports
150
Port Triggering
152
Firewall
155
Basics for Firewall
155
General Setup
157
Filter Setup
162
Dos Defense
170
User Management
173
General Setup
174
User Profile
175
User Group
179
User Online Status
181
Objects Settings
182
IP Object
182
IP Group
185
Ipv6 Object
187
Ipv6 Group
189
Service Type Object
191
Service Type Group
193
Keyword Object
195
Keyword Group
197
File Extension Object
199
Sms/Mail Service Object
201
Notification Object
206
CSM Profile
208
APP Enforcement Profile
209
URL Content Filter Profile
212
Web Content Filter Profile
216
DNS Filter
220
APPE Support List
221
Bandwidth Management
222
Sessions Limit
222
Bandwidth Limit
224
Quality of Service
226
Applications
235
Dynamic DNS
235
Lan Dns
238
Schedule
240
Radius
243
Active Directory/Ldap
244
Upnp
247
Igmp
249
Wake on LAN
250
Sms/Mail Alert Service
251
VPN and Remote Access
253
Remote Access Control
254
PPP General Setup
254
Ipsec General Setup
256
Ipsec Peer Identity
258
Remote Dial-In User
260
LAN to LAN
264
VPN TRUNK Management
274
Connection Management
279
Certificate Management
280
Local Certificate
280
Trusted CA Certificate
284
Certificate Backup
285
Voip
285
Dialplan
287
SIP Accounts
296
Phone Settings
300
Status
305
Wireless LAN
307
Basic Concepts
307
General Setup
309
Security
311
Access Control
314
Wps
315
Wds
318
Advanced Setting
321
WMM Configuration
323
AP Discovery
324
Station List
326
Bandwidth Management
327
Ssl Vpn
328
General Setup
328
SSL Web Proxy
329
SSL Application
330
User Account
333
User Group
337
Online User Status
339
USB Application
340
USB General Settings
340
USB User Management
341
File Explorer
344
USB Device Status
345
Modem Support List
346
System Maintenance
346
System Status
347
337
349
Tr-069
349
Admin Setting
350
User Password
352
Login Page Title
355
Configuration Backup
356
Syslog/Mail Alert
358
Time and Date
360
Snmp
361
Management
363
Reboot System
365
Firmware Upgrade
366
Activation
367
Diagnostics
369
Dial-Out Triggering
369
Routing Table
370
ARP Cache Table
371
Ipv6 Neighbour Table
371
DHCP Table
372
NAT Sessions Table
373
Ping Diagnosis
374
Data Flow Monitor
375
Traffic Graph
377
Trace Route
378
Syslog Explorer
379
Ipv6 TSPC Status
381
External Devices
381
Application and Examples
383
How to Configure Multiple Services with PVC to PVC Binding
383
How to Configure Multi-Subnet in Vigor2830
387
How Can I Use FTP to Get the Files from USB Storage Device Connecting to Vigor Router
394
How to Send a Notification to Specified Phone Number Via SMS Service in WAN Disconnection
397
Web Portal Log-In Application for Wireless Client
401
How to Customize Your Login Page
405
Login Page Greeting
406
Create a LAN-To-LAN Connection between Remote Office and Headquarter
408
Create a Remote Dial-In User Connection between the Teleworker and Headquarter
416
Qos Setting Example
420
Upgrade Firmware for Your Router
425
Request a Certificate from a CA Server on Windows CA Server
428
Request a CA Certificate and Set as Trusted on Windows CA Server
432
Creating an Account for Myvigor
434
Creating an Account Via Vigor Router
434
Creating an Account Via Myvigor Web Site
438
How to Implement the LDAP/AD Authentication for User Management
442
How to Implement the LDAP/AD Authentication for VPN
445
How to Setup Address Mapping
448
How to Setup Load Balance for Packets
452
Trouble Shooting
455
Checking if the Hardware Status Is OK or Not
455
Checking if the Network Connection Settings on Your Computer Is OK or Not
455
Pinging the Router from Your Computer
459
Checking if the ISP Settings Are OK or Not
460
Problems for 3G Network Connection
460
Backing to Factory Default Setting if Necessary
461
Contacting Draytek
462
Appendix I: VLAN Applications on Vigor Router
463
Appendix II: Release Note
471
