Vigor2830 Series User’s Guide

445

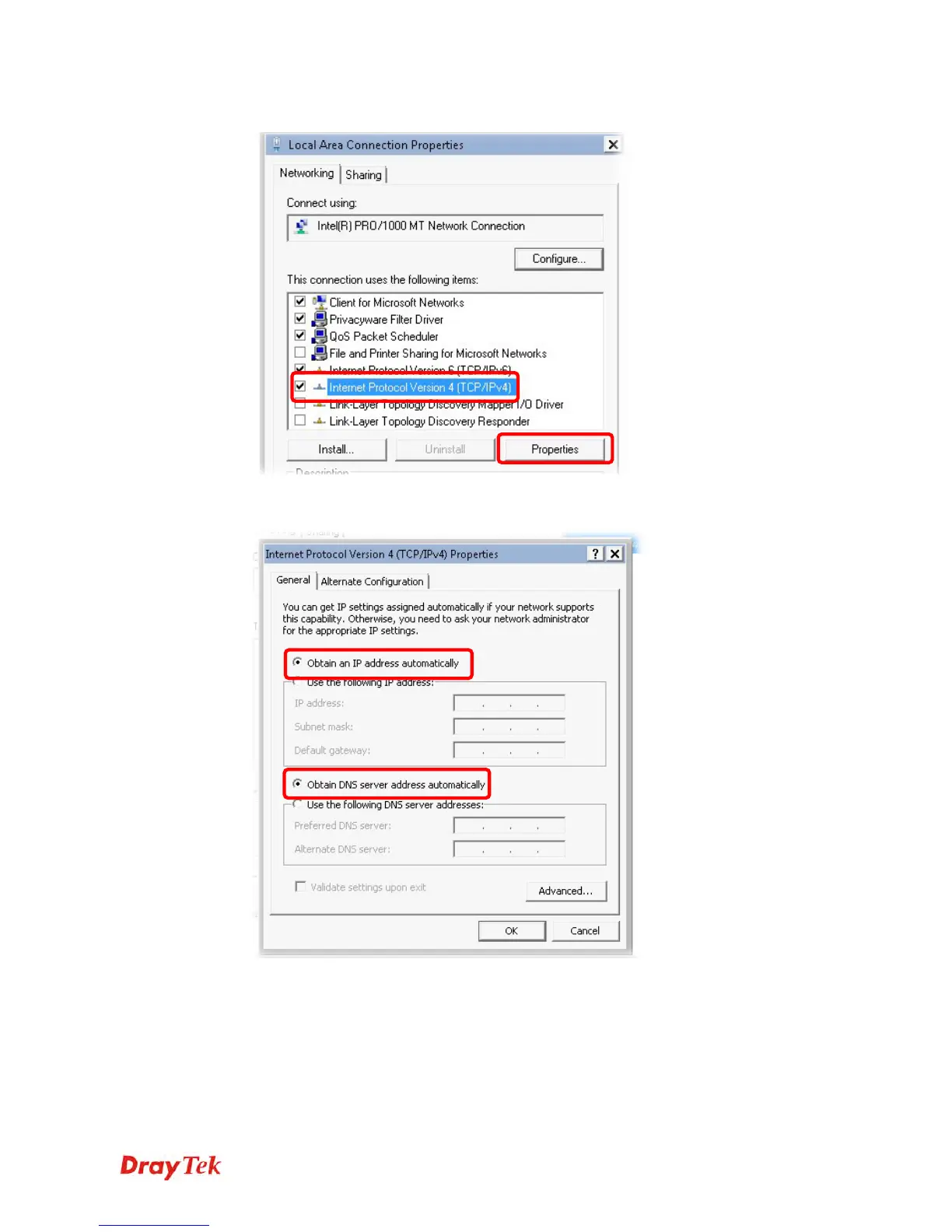

4. Select Internet Protocol Version 4 (TCP/IP) and then click Properties.

5. Select Obtain an IP address automatically and Obtain DNS server address

automatically. Finally, click OK.
