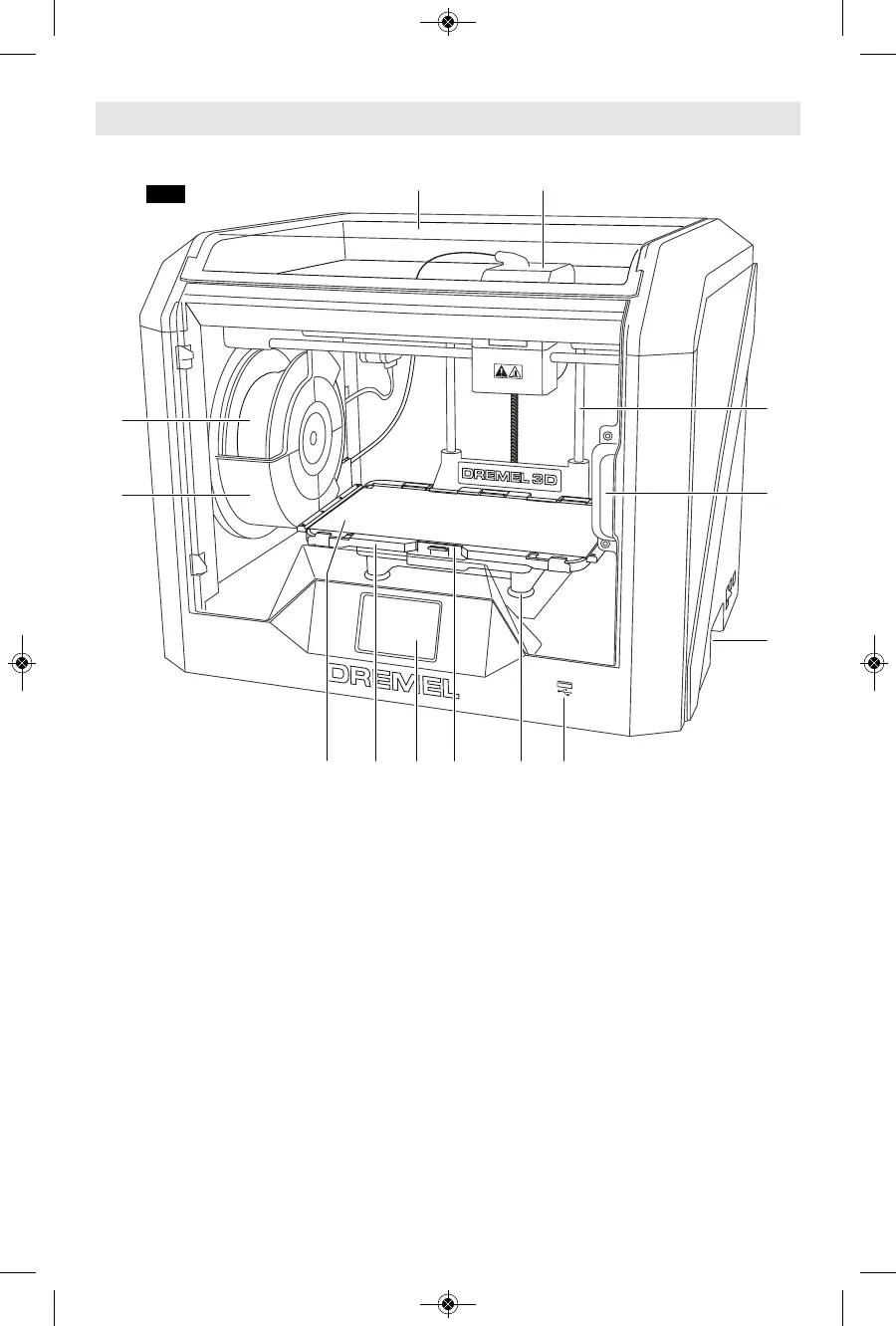

Getting To Know Your 3D40 FLEX
1. Lid
2. Extruder
3. Z-Axis Guide rail
4. Door
5. Gripping Handles
6. USB A Port
7. Leveling Knobs
8. Build Platform Clip
9. Touch Screen
10. Build Plate Holder
11. Flexible Build Plate
12. Filament Spool Holder
13. Filament Spool
14. Y-Axis Guide Rail
15. Stepper motor
16. Filament Guide Tube
17. Extruder Lever
18. Filament Guide Clip
19. Extruder Intake
20. Extruder Fan
21. Ribbon Cable
22. X-Axis Guide Rail
23. Leveling Sensor
24. Extruder Tip
25. Power Switch
26. USB B Port
27. Ethernet Port
28. Nameplate
29. Power Input
1
4
9
6
13
10
2
12
5
8
7
3
11
FIG. 1
