DriSteem XTP 017 - Humidifier Mounting Details

9
XT SERIES INSTALLATION, OPERATION, AND MAINTENANCE MANUAL
Mounting
B
D
C
A
OM-7970
OM-7969
A
B
C
Models XTP 002 through 048
Models XTP 050 through 096
D
Table 9-1:
XT Series humidifier mounting keyhole dimensions
Dimension
Model XTP
002, 003, 006 010, 017 025, 033, 042, 048 050, 067, 083, 096
inches mm inches mm inches mm inches mm
A 3.9 100 7.1 180 7.5 190 14.0 356
B 3.0 75 3.6 92 3.4 86 3.3 84
C 3.2 81 4.4 112 4.1 104 4.1 104
D 14.0 355 16.3 414 18.9 480 18.9 480
E ——————19.0 483
INSTALLATION
E
0.390" x 0.719"
(9.9 x 18.3 mm)
dia. keyholes
0.390" (9.9 mm)
dia. holes
0.390" x 0.719"
(9.9 x 18.3 mm)
dia. keyholes
0.390" (9.9 mm)
dia. holes

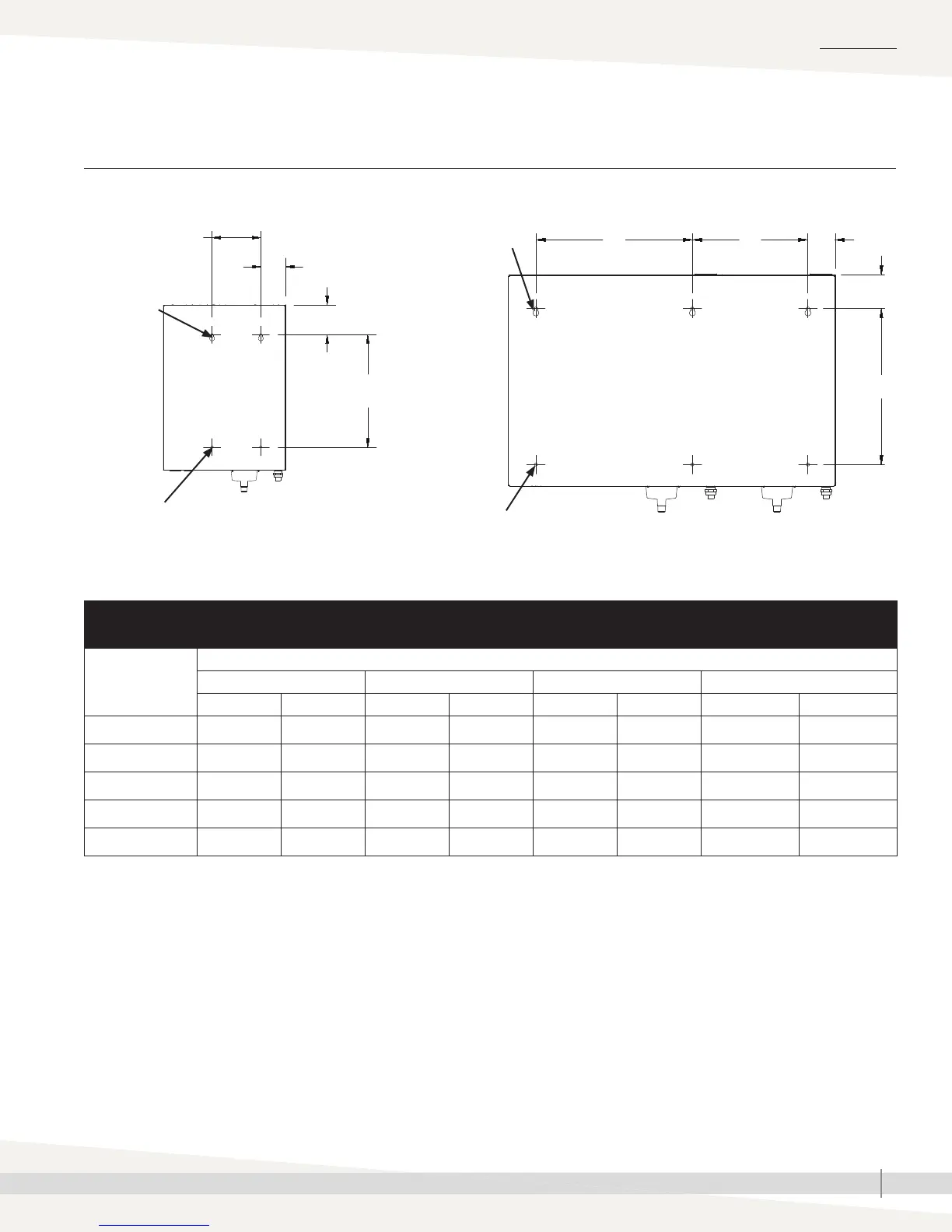

FIGURE 9-1: XT SERIES HUMIDIFIER MOUNTING KEYHOLE LOCATIONS
