XT SERIES INSTALLATION, OPERATION, AND MAINTENANCE MANUAL
INSTALLATION
Piping:
Plastic tie
Condensate hose (purchased
separately from DriSteem)
Plastic tie
Hose clamp (provided)
Steam hose
(purchased separately
from DriSteem)
Hose clamp (provided)
To open drain or humidifi er fi ll cup.
Water seal is required, whether condensate is piped to
open drain or returned to humidifi er fi ll cup.
OM-7974
7” (178 mm) water seal
Notes:
• Maximum recommended distance between humidifi er
and XT steam blower is 10’ (3 m).
• Models XTP 042 through 096 are not intended for use
with a steam blower.
OM-7975
7” (178 mm)
water seal
To open drain or
humidifi er fi ll cup.
Water seal is
required, whether
condensate is
piped to open
drain or returned
to humidifi er fi ll
cup.
Plastic tie
Condensate
hose
(purchased
separately
from DriSteem)
Hose clamps
(provided)
Steam hose
(purchased separately from DriSteem)
Hose clamp*
Plastic tie
Steam hose*
Stainless steel Y connector*
* Provided in optional connector
kit Part No. 191070-102
Hose clamp*
Model XTP 025 only
XT steam blowers

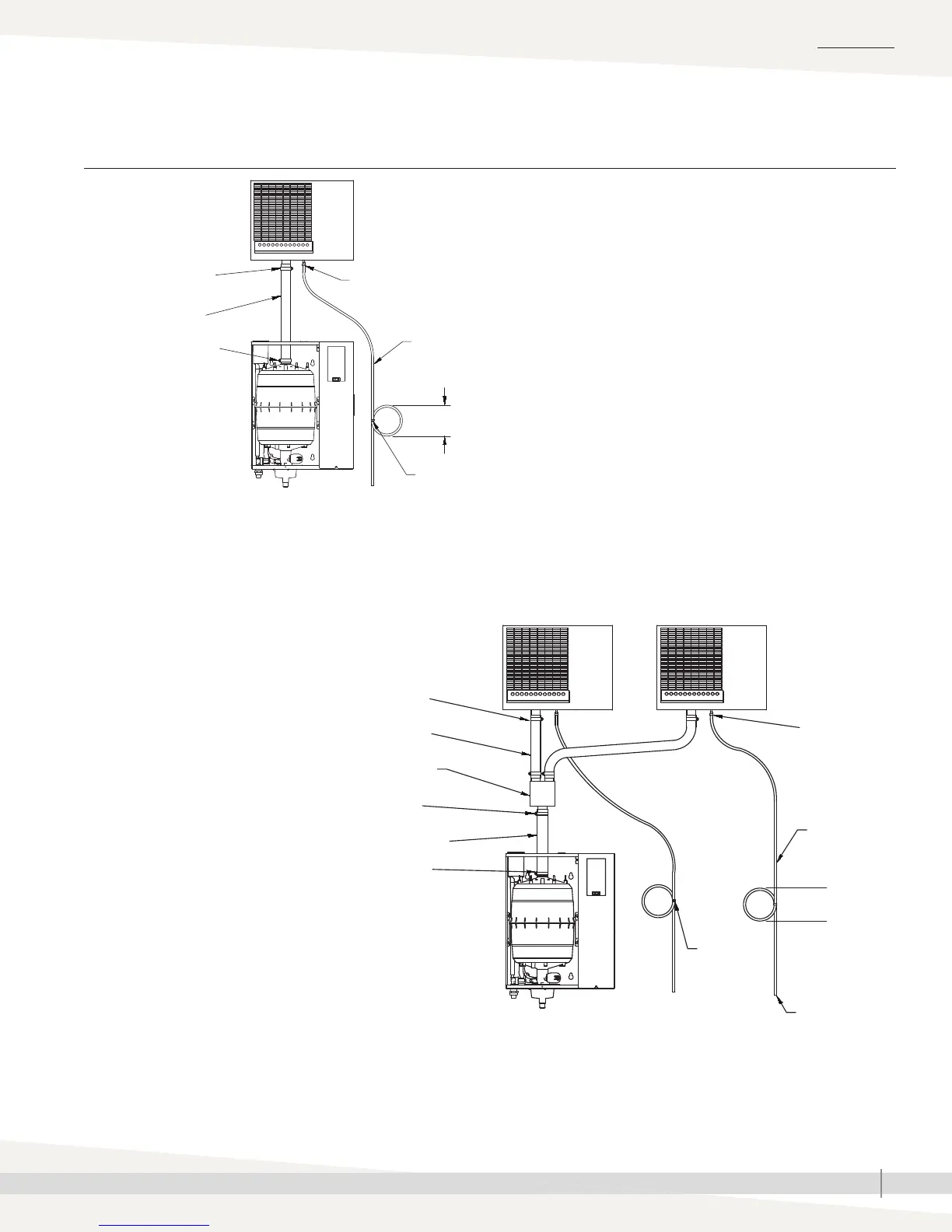

FIGURE 15-1: PIPING FROM XT SERIES HUMIDIFIER TO REMOTE XT STEAM BLOWER
