Table 41-1:
XT steam blower dimensions
Dimension
SDU-006E SDU-017E
inches mm inches mm
A 14.7 373 17.9 455
B 6.0 152 13.8 350
C 7.8 198 11.0 279
D 3.0 76 3.6 91
E 3.9 99 7.1 180
F 2.7 69 4.2 107
The XT steam blower can be mounted on top
of an XT Series humidifi er cabinet, or wall-
mounted remotely from the humidifi er. See
Figure 41-1.
SDU-006E, for capacities up to 20 lbs/hr (9.1
kg/h), can be directly mounted on Models XTP
002 through 006.
SDU-017E, for capacities up to 50 lbs/hr (22.7
kg/h), can be directly mounted on Models XTP
010 and 017.
XT Series humidifi ers can be confi gured to
operate with one or two steam blowers.
Multiple SDU-017 are used remotely with
Model XTP 025 or 033. See Table 41-2.
Note: XT steam blower installation must comply
with governing codes.
Table 41-3:
XT steam blower specifications
Model
Maximum capacity Shipping weight Operating weight Volume airfl ow
Current draw at
115V (50/60 Hz)
Input
power
Noise
lbs/hr kg/h lbs kg lbs kg cfm m
3
/min
SDU-006E 20 9.1 14.0 6.4 11.0 5.0 106 3.0 0.16 A 17 W 49 dBA
SDU-017E 50 22.7 29.0 13.2 24.0 10.9 665 18.8 0.23 A 23 W 53 dBA
Notes:
• XT steam blowers ship separately from XT Series humidifi ers.
• Noise measurements taken 6.5' (2 m) in front of XT steam blower cabinet.
Table 41-2:
Single or multiple XT steam blowers for XT Series humidifiers*
Model
SDU-006
per kit
SDU-017
per kit
XTP
002 1 —
003 1 —
006 1 —
010 — 1
017 — 1
025 — 2
033 — 2
042 through 096 n/a n/a
* XT steam blowers are sold as kits to match the associated XT Series
humidifi er. The number of XT steam blowers per kit are shown in this table.

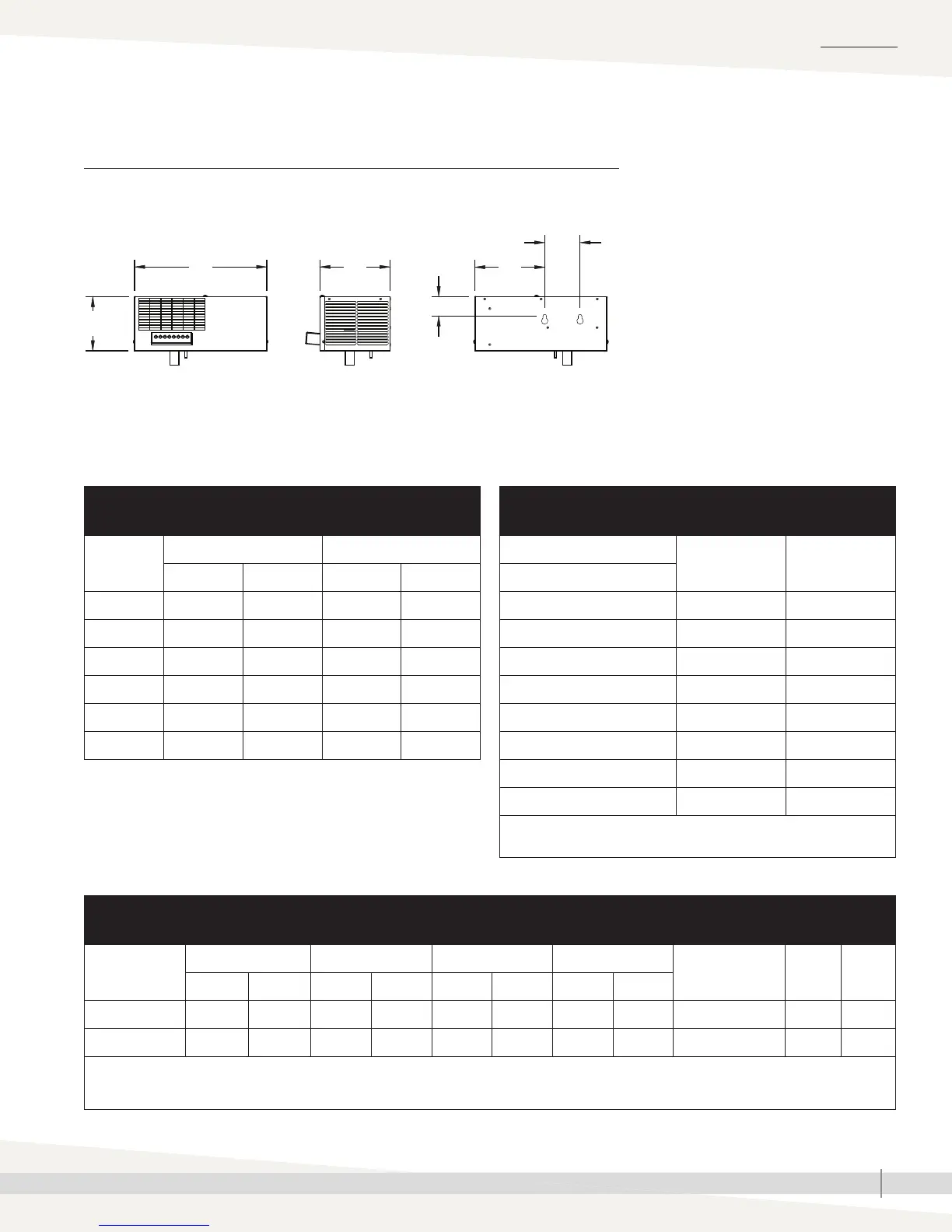

FIGURE 41-1: XT STEAM BLOWER DIMENSIONS
INSTALLATION
XT steam blowersDispersion:
