19

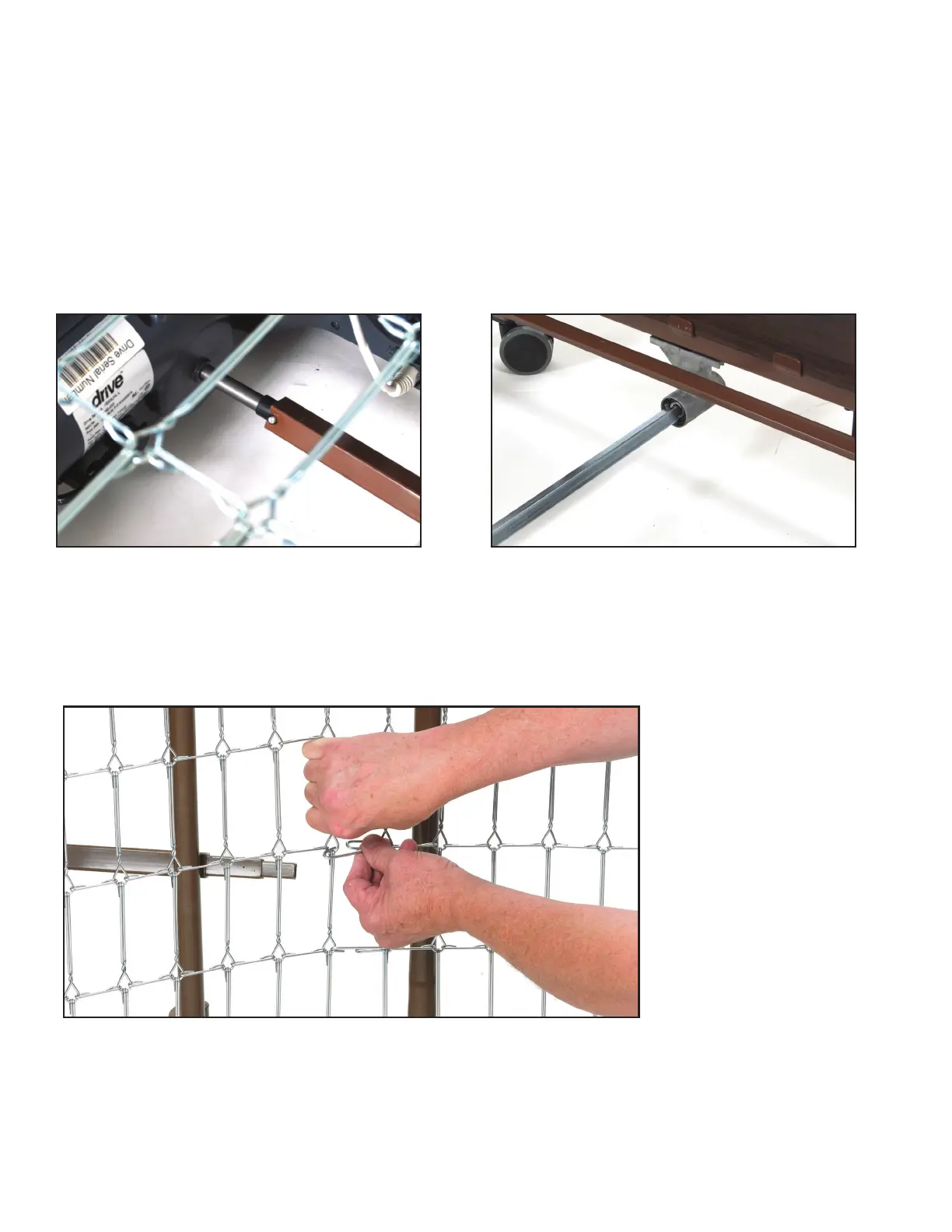

8. Raise the Head Spring and Foot Spring to release tension between the springs and connect Head and
Foot spring fabric by squeezing together and attaching with spring links.
ASSEMBLY
#15004P & 15003P: Lift the Head Spring and install the foot end of the Hi/Lo Drive Shaft to the Foot
Board drive pin, then install head end of the Hi/Lo Drive Shaft to the Head Board
drive pin.
Hi/Lo Drive Shaft is spring loaded so it will t securely between these two points.
Adjust length of Hi/Lo Drive Shaft if it is too long or too short.
