Hand Pendant Control
Model #15005LP Low Height Full Electric Bed comes with a 3 Function hand held Pendant.
• Top Buttons control raising and lowering the Head Section;
• Middle Buttons control raising and lowering the Foot Section;
• Lower Buttons control raising and lowering the entire bed.
Depress buttons to actuate desired adjustment.
Model #15004P Semi Electric Bed comes with a 2 Function hand held Pendant.
• Top Buttons control raising and lowering the Head Section;
• Lower Buttons control raising and lowering the Foot Section;
• Manual Crank will raise and lower the entire bed
Depress buttons to actuate desired adjustment.
NOTE: Operate the bed through all phases of its operation. If any problems arise during the test, recheck all
electrical connections and mechanical hook ups. Full and Semi Electric beds come with an emergency crank
to allow continued operation in the event of a power outage.
Model #15003P 3 Crank Manual Bed Operation
Looking at the Foot End of the Bed and going from left to right:
• Crank (A) controls raising and lowering the Head Section;
• Crank (B) controls raising and lowering the entire bed;
• Crank (C) controls raising and lowering the Foot Section;
Turn Manual Cranks clockwise to raise that section of the bed and counter clockwise to lower that section of
the bed.
OPERATION

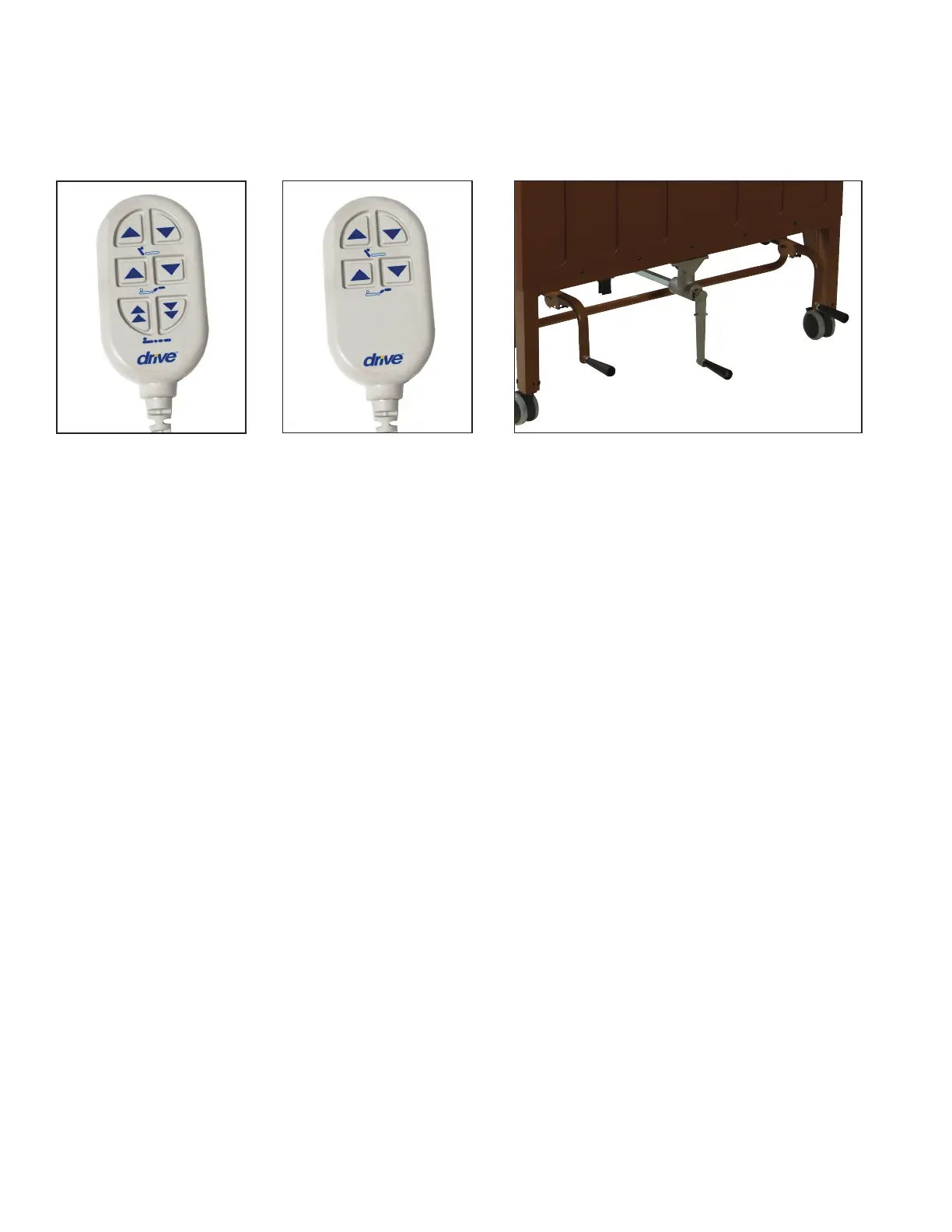

15005LP Pendant 15004P Pendant 15003P Hand Cranks
A
B
C
