Drivecon XT Series - Stripping Length of Motor and Main Cables

Owner's Manual
Drivecon Toll Free Ph: 1-800-374-8266
Drivecon, reserves the right to alter or amend the above information without notice

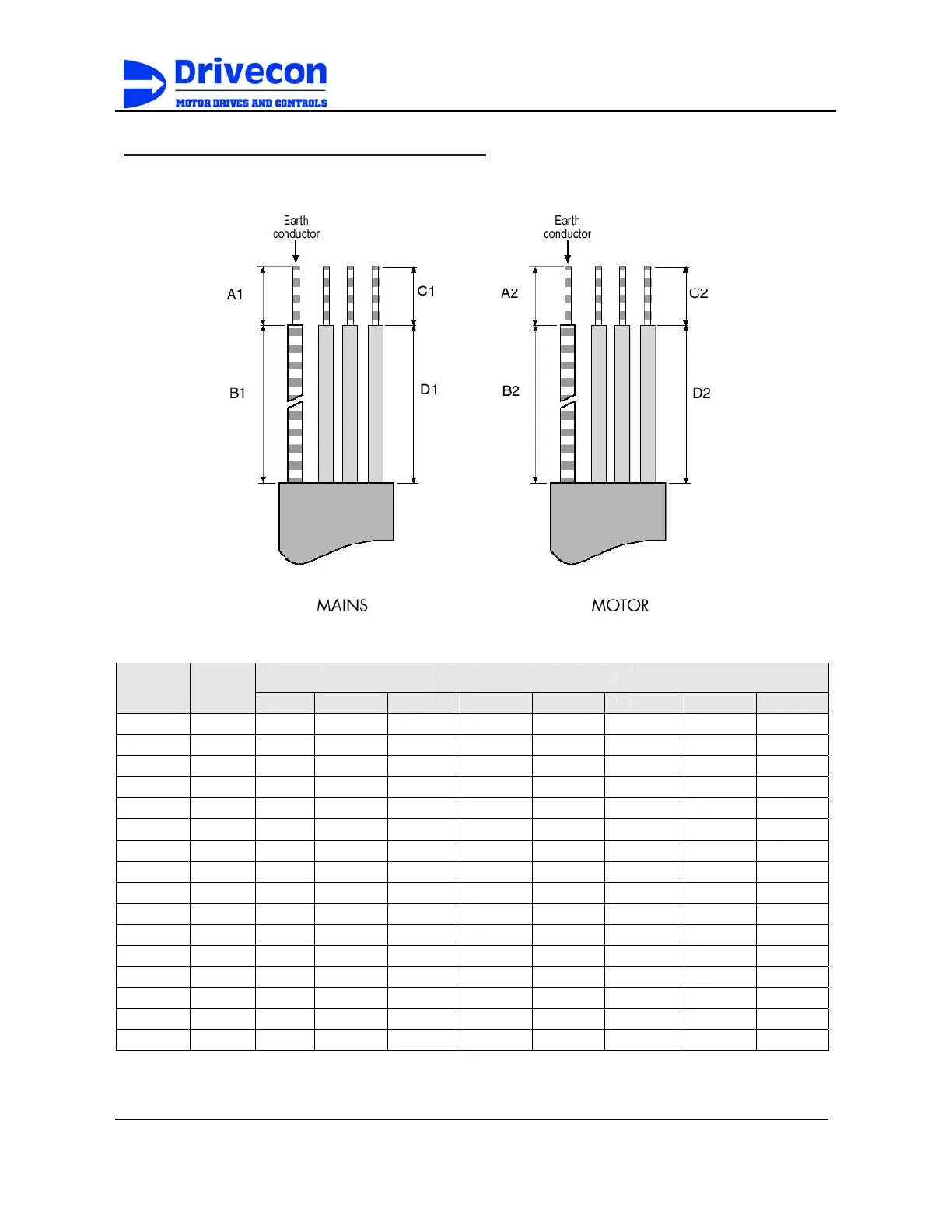

Stripping lengths of motor and main cables
Typical for shielded cables and conventional individual stranded conductors.
Figure C-2
Inverter
type XTd-
Frame
size
Cable striipping length - inches
or XTe A1 B1 C1 D1 A2 B2 C2 D2
4004 1 .59 1.38 .39 .79 .28 1.97 .28 1.38
4005 1 .59 1.38 .39 .79 .28 1.97 .28 1.38
4009 1 .59 1.38 .39 .79 .28 1.97 .28 1.38
4012 1 .59 1.38 .39 .79 .28 1.97 .28 1.38
4016 2 .79 1.57 .39 1.18 .79 2.36 .39 1.57
4022 2 .79 1.57 .39 1.18 .79 2.36 .39 1.57
4031 3 .79 1.57 .39 1.18 .79 2.36 .39 1.57
4038 3 .79 3.54 .59 2.36 .79 3.54 .59 2.36
4045 3 .79 3.54 .59 2.36 .79 3.54 .59 2.36
4061 4 .79 3.54 .59 2.36 .79 3.54 .59 2.36
4072 4 .98 4.72 .98 4.72 .98 4.72 .98 4.72
4087 4 .98 4.72 .98 4.72 .98 4.72 .98 4.72
4105 5 .98 4.72 .98 4.72 .98 4.72 .98 4.72
4140 5 .91 9.45 .91 9.45 .91 9.45 .91 9.45
4168 5 1.10 9.45 1.10 9.45 1.10 9.45 1.10 9.45
4210 6 1.10 9.45 1.10 9.45 1.10 9.45 1.10 9.45
Table C-2
C-2
