I/O and Relay Boards
There are six cards available:

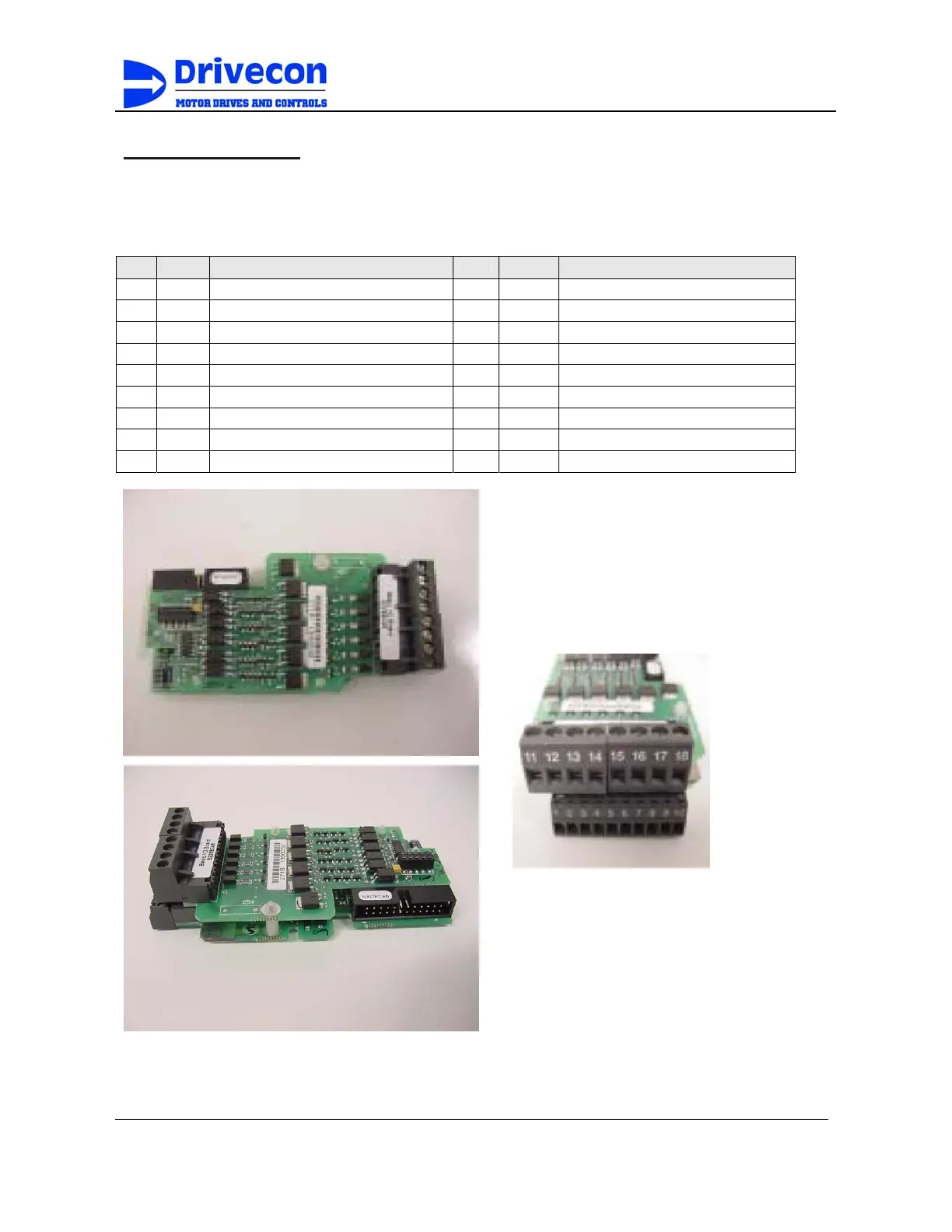

NXOPTA6 this card plugs into slot A. Standard.
No. Name Description, signal level No. Name Description, signal level
1 PUR Pull-up resistor for potentiometer 13 DIA3 Multi Function Input
2 +15V +15V 14 DIA4 Multi Function Input
3 AIN1+ Potentiometer speed reference, -10…+10V 15 DIA5 Multi Function Input
4 AIN2+ Analog reference, 0…+10V 10 +24V External supply for Control module
5 AIN- Analog reference, 0…+10V 11 S1 Forward Direction
6 AOUT1 Analog Output 1 12 S2 Reverse Direction
7 AOUT2 Analog Output 2, range 0…+10V 16 OK External control voltage, 48/115/230Vac
8 DOA1 DOA1 17 COM Neutral of external control voltage OK
9 0V Common for analog signals 18 COM Neutral of external control voltage OK
