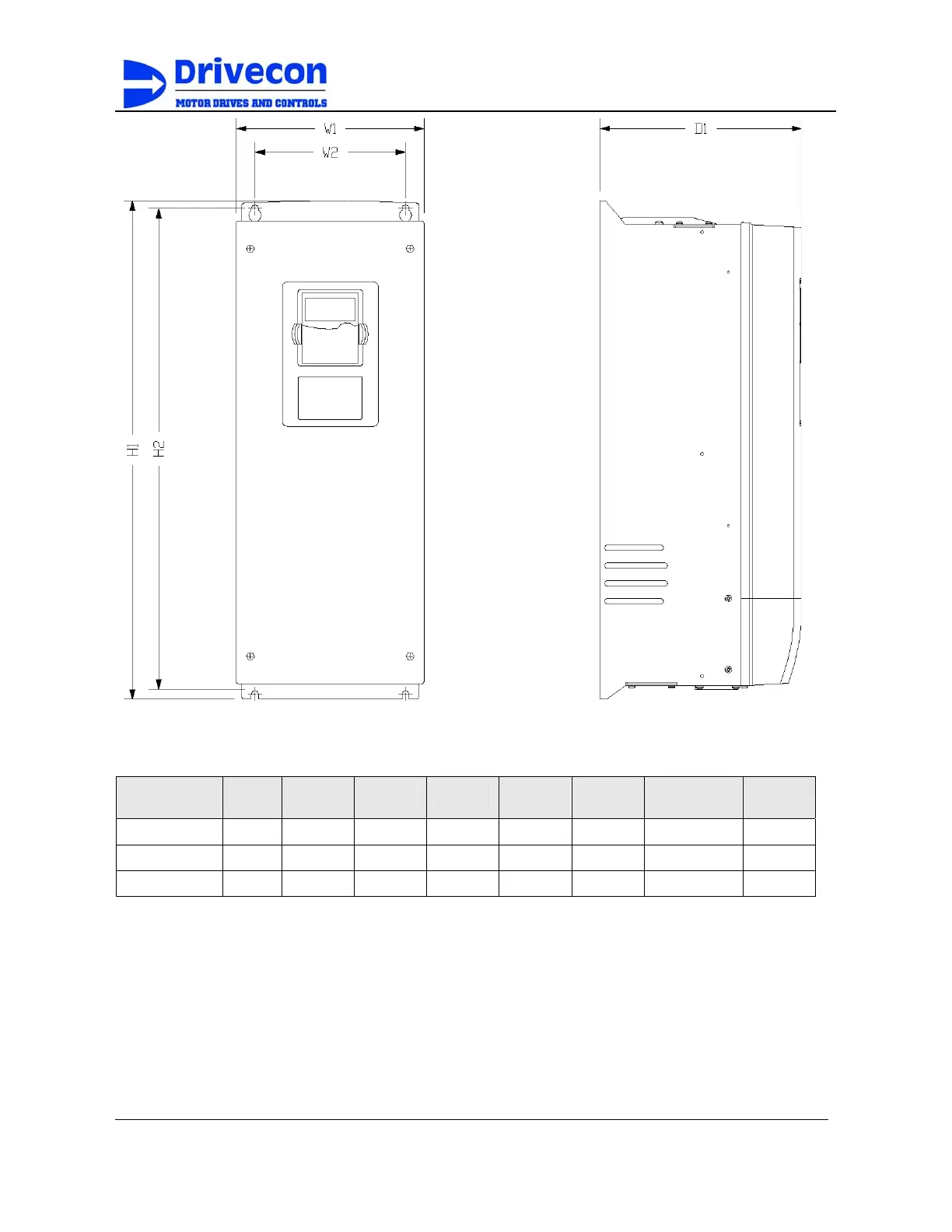

Inverter dimensions. Frame size 4.
Table C-6
Model Number
XTD-
Frame
size
H1
(inches)
H2
(inches)
W1
(inches)
W2
(inches)
D1
(inches)
Hole diameter
(inches)
Weight
(lbs.)
4061-000 4 24.803 24.173 9.331 7.480 10.118 0.354 93.77
4072-000 4 24.803 24.173 9.331 7.480 10.118 0.354 93.77
4087-000 4 24.803 24.173 9.331 7.480 10.118 0.354 93.77
C-6
