the Bell Cutoff time expires (Section [005] “System Times”),
or until a code is entered (see Section 5.13 “Bell”).
NOTE: If a second Fire type zone is violated or if the Fire keys
are pressed during the delay period, the panel will latch the
alarm output and will immediately communicate the alarm.
A violated Fire zone will be displayed on all keypads and can
be delayed at any keypad. Typically this zone is used for
latching smoke detectors.
[08] Standard 24-hr Fire Zone
NOTE: Do not wire Fire zones on keypad zone terminals if the
DEOL supervision option is enabled for the panel (section
[013], option [2]).
When this zone is violated, the panel will immediately latch
the alarm output and communicate to the central station. The
alarm will sound until the Bell Cutoff time expires, or until a
code is entered (see section 5.13 “Bell”).
A violated Fire zone will be displayed on all keypads. Typi-
cally this zone is used for pull stations.

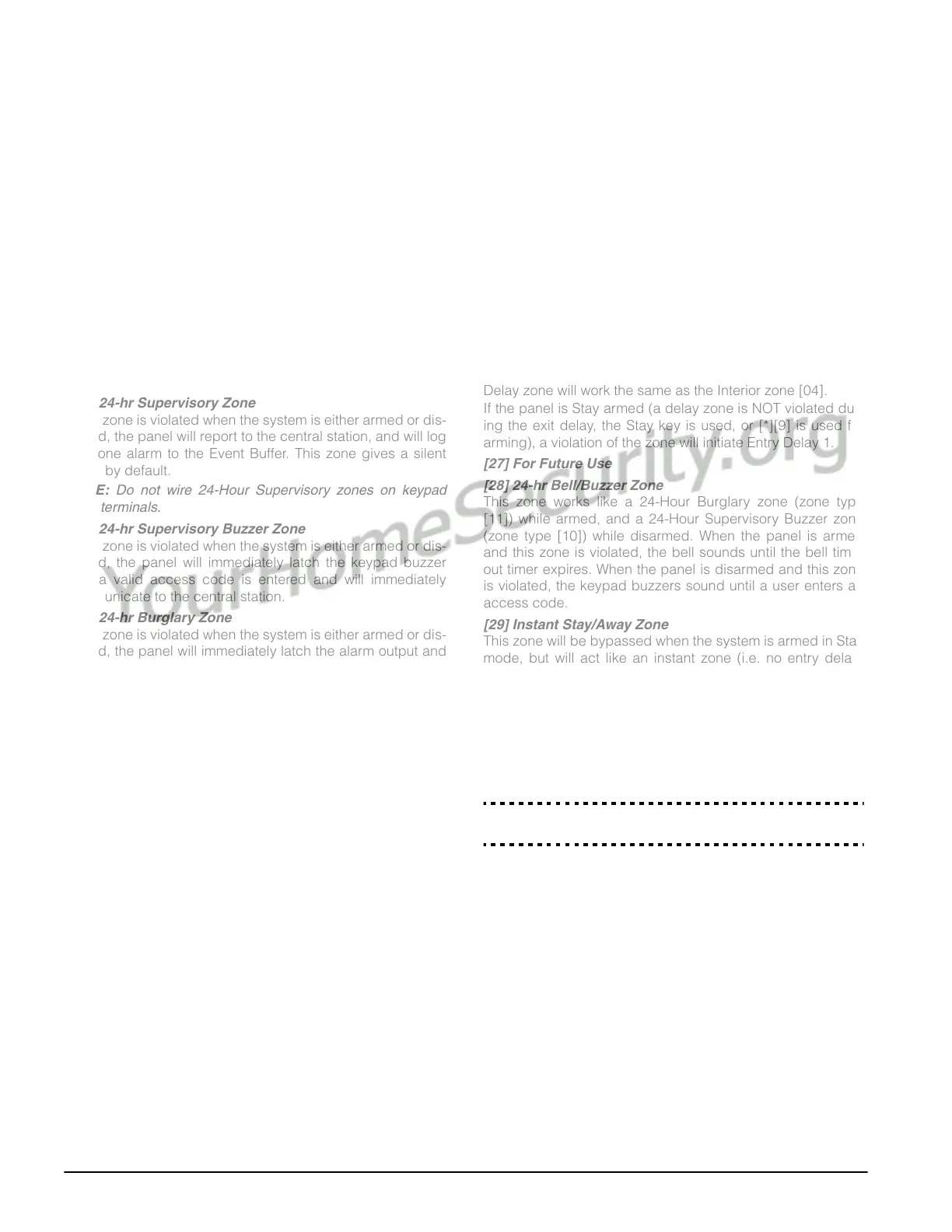

[09] 24-hr Supervisory Zone
If this zone is violated when the system is either armed or dis-
armed, the panel will report to the central station, and will log
the zone alarm to the Event Buffer. This zone gives a silent
alarm by default.
NOTE: Do not wire 24-Hour Supervisory zones on keypad
zone terminals.
[10] 24-hr Supervisory Buzzer Zone
If this zone is violated when the system is either armed or dis-
armed, the panel will immediately latch the keypad buzzer
until a valid access code is entered and will immediately
communicate to the central station.
[11] 24-hr Burglary Zone
If this zone is violated when the system is either armed or dis-
armed, the panel will immediately latch the alarm output and
communicate to the central station. The alarm will sound until
the Bell Cutoff time expires, or until a code is entered (see
section 5.13 “Bell”).
[12] - [20]
The following zone definitions operate similar to the 24-hr
Burglary except for the System Event output type and the SIA
identifier:
[12] 24-hr Holdup Zone - This zone gives a silent alarm by
default, however the keypad will still display the zone in
alarm. To have a completely silent alarm with no local alarm
annunciation, use PGM2 programmed as [23] Silent 24-hr
ouput. See 5.11 “PGM Output Options”.
[13] 24-hr Gas Zone
[14] 24-hr Heat Zone
[15] 24-hr Medical Zone
[16] 24-hr Panic Zone
[17] 24-hr Non-Medical Emergency Zone
[18] 24-hr Sprinkler Zone
[19] 24-hr Water Flow Zone
[20] 24-hr Freezer Zone
[21] 24-hr Latching Tamper
If this zone is violated, the installer must enter Installer’s Pro-
gramming before the system can be armed.
NOTE: Wireless zones should not be programmed as zone
types [22] - [24].
[22] Momentary Keyswitch Arm Zone
Momentary violation of this zone will alternately arm/disarm
the system. Tampers and faults will not arm/disarm the sys-
tem, but only activate the appropriate trouble. When a user
arms the system with a keyswitch, the system will arm in
Away mode.
[23] Maintained Keyswitch Arm Zone
When this zone is violated, the system will arm. When this
zone is secured, the system will disarm. Tampers and faults
will not arm/disarm the system, but only activate the appro-
priate trouble. When a user arms the system with a key-
switch, the system will arm in Away mode.
[24] For Future Use
[25] Interior Delay Zone
This zone type is normally used with motion detectors and
has a standard exit delay time.
If the panel is Away armed (a delay zone is violated during
the exit delay, or the Away function key is used), the Interior
Delay zone will work the same as the Interior zone [04].
If the panel is Stay armed (a delay zone is NOT violated dur-
ing the exit delay, the Stay key is used, or [*][9] is used for
arming), a violation of the zone will initiate Entry Delay 1.
[27] For Future Use
[28] 24-hr Bell/Buzzer Zone
This zone works like a 24-Hour Burglary zone (zone type
[11]) while armed, and a 24-Hour Supervisory Buzzer zone
(zone type [10]) while disarmed. When the panel is armed
and this zone is violated, the bell sounds until the bell time-
out timer expires. When the panel is disarmed and this zone
is violated, the keypad buzzers sound until a user enters an
access code.
[29] Instant Stay/Away Zone
This zone will be bypassed when the system is armed in Stay
mode, but will act like an instant zone (i.e. no entry delay)
when armed in Away mode.
[87] Delayed 24-hr Fire (Wireless)
This zone type operates the same as [07] Delayed 24-hr Fire
Zone and must be used if the smoke detector is wireless.
[88] Standard 24-hr Fire (Wireless)
This zone type operates the same as [08] Standard 24-hr Fire
Zone and must be used if the smoke detector is wireless.
Zone Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .[001]
Zone Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . .[202]
5.3 Zone Attributes
NOTE: All zones, with the exception of 24-hr and Fire, will
provide an exit delay.
NOTE: Do not change the attributes for Fire Zones from the
default settings.
Additional zone attributes can be programmed to customize
the operation of a zone for a specific application. The follow-
ing attributes are programmable for each zone:
• Audible / Silent – This attribute determines whether or
not the zone will activate the alarm output.
• Pulsed / Steady – This attribute determines whether the
alarm output will be steady or will pulse on and off every
second.
To Next Page
