42
Appendix A: Reporting Codes
The following tables contain Contact ID and Automatic SIA
format reporting codes. For more information on reporting
code formats and notes about individual reporting codes,
see sections 5.8 “Communicator – Reporting Codes” and 5.9
“Communicator – Reporting Formats”.
Contact ID
The first digit (in parentheses) will automatically be sent by
the control. The second two digits are programmed to indi-
cate specific information about the signal.
For example, if zone 1 is an entry/exit point, you could pro-
gram the event code as [34]. The central station would
receive the following:
*BURG - ENTRY/EXIT - 1
where the “1” indicates which zone went into alarm.
SIA Format - Level 2 (Hardcoded)
The SIA communication format used in this product follows
the level 2 specifications of the SIA Digital Communication
Standard - January 1996. This format will send the Account
Code along with its data transmission. The transmission
would look similar to the following at the receiver:
N Ri01 BA 01
N = New Event
Ri01 = Partition /Area Identifier
BA = Burglary Alarm
01 = Zone 1

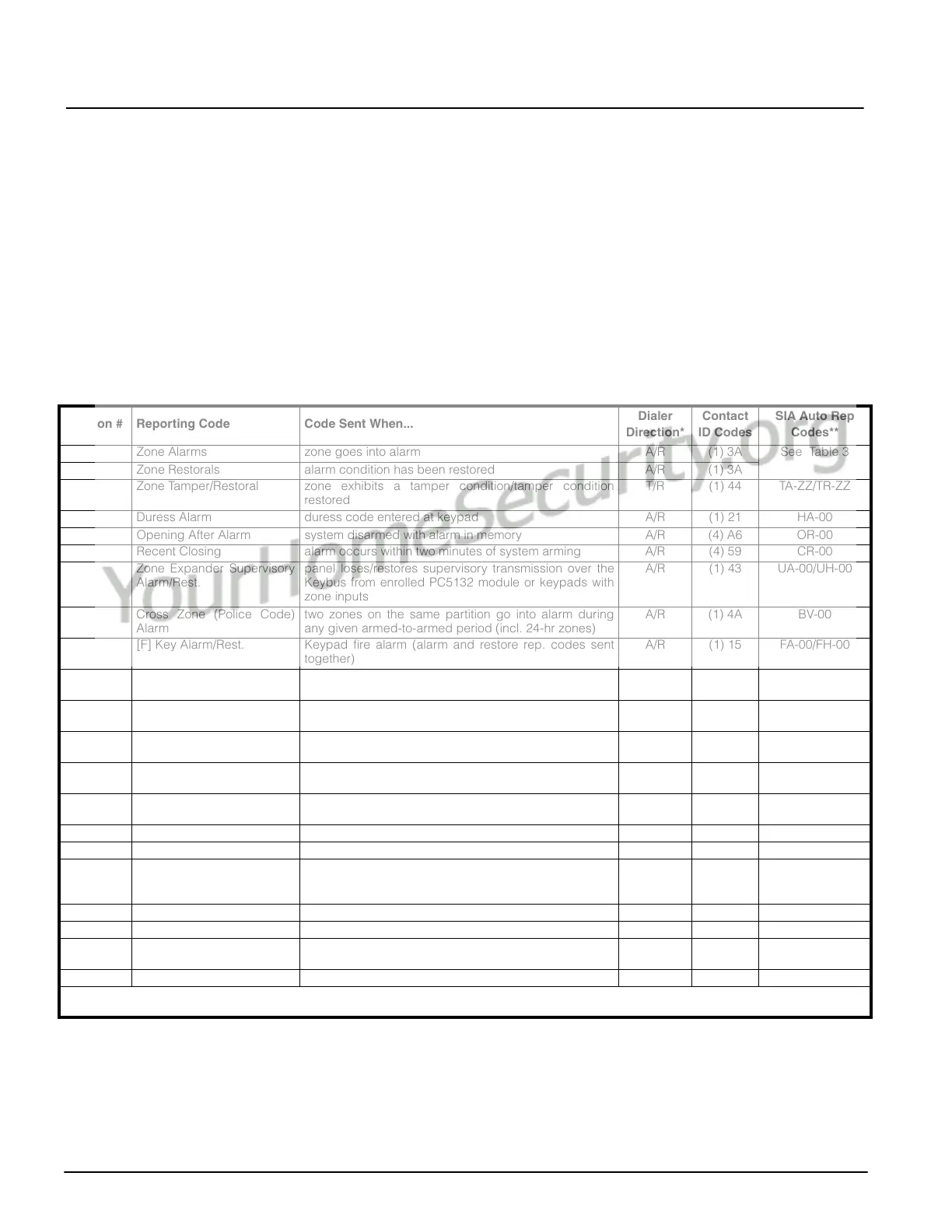

Section # Reporting Code Code Sent When...
Dialer
Direction*
Contact
ID Codes
SIA Auto Rep
Codes**
[320] Zone Alarms zone goes into alarm A/R (1) 3A See Table 3
[324] Zone Restorals alarm condition has been restored A/R (1) 3A
[330]
[334]
Zone Tamper/Restoral zone exhibits a tamper condition/tamper condition
restored
T/R (1) 44 TA-ZZ/TR-ZZ
[328] Duress Alarm duress code entered at keypad A/R (1) 21 HA-00
[328] Opening After Alarm system disarmed with alarm in memory A/R (4) A6 OR-00
[328] Recent Closing alarm occurs within two minutes of system arming A/R (4) 59 CR-00
[328] Zone Expander Supervisory
Alarm/Rest.
panel loses/restores supervisory transmission over the
Keybus from enrolled PC5132 module or keypads with
zone inputs
A/R (1) 43 UA-00/UH-00
[328] Cross Zone (Police Code)
Alarm
two zones on the same partition go into alarm during
any given armed-to-armed period (incl. 24-hr zones)
A/R (1) 4A BV-00
[329] [F] Key Alarm/Rest. Keypad fire alarm (alarm and restore rep. codes sent
together)
A/R (1) 15 FA-00/FH-00
[329] [A] Key Alarm/Rest. Keypad auxiliary alarm (alarm and restore rep. codes
sent together)
A/R (1) AA MA-00/MH-00
[329] [P] Key Alarm/Rest. Keypad panic alarm (alarm and restore rep. codes sent
together)
A/R (1) 2A PA-00/PH-00
[329] PGM2 Alarm/Rest. a panic button wired to PGM2 is pressed / access code
is entered (PGM2 programmed as option [23] or [24])
A/R (1) 4A UA-99/UH-99
[338] General System Tamper/
Rest.
enrolled module with tamper inputs has a tamper alarm/
all module tampers restored
T/R (1) 45 TA-00/TR-00
[338] Keypad Lockout max. number of incorrect access codes has been
entered at a keypad
T/R (4) 21 JA-00
[339-343] Closings system armed (user 01-34, 40-42 indicated) O/C (4) A2 CL-UU
[343] Partial Closing one or more zones bypassed when system armed O/C (4) 7A CG-ZZ
[343] Special Closing Closing (arming) using one of the following methods:
quick arm, auto arm, keyswitch, function key, guard
code, DLS software
O/C (4) AA CL-00
[344-348] Openings system disarmed (user 01-34, 40-42 indicated) O/C (4) A2 OP-UU
[348] Auto Arm Cancellation auto arm cancelled O/C (4) A5 CE-00
[348] Special Opening Opening (disarming) using one of the following meth-
ods: keyswitch, guard code, DLS software
O/C (4) AA OP-00
[349-350] Battery Trouble/Rest. PC585 battery is low/battery restored MA/R (3) A2 YT-00/YR-00
* A/R = alarms/restorals;T/R = tampers/restorals; O/C = openings/closings; MA/R = miscellaneous alarms/restorals; T = test transmissions
** UU = user number (user01-42); ZZ = zone number (01-08)
