Programming Worksheets: 5.32 Walk Test (Installer)
41
Special Installer Functions
[901] Installer Walk Test Mode Enable / Disable (Section 5.32 “Walk Test (Installer)” )
[902] Module Supervision Reset (Section 2.7 “Removing Modules” )
[903] Module Supervision Field (Section 2.6 “Supervision” )
[904] Wireless Module Placement Test
For more information, please refer to your PC5132 Installation Manual
Select the module / transmitter (Zones 01-8).
Press [#] to Cancel.
Placement Led Keypad LCD Keypad Bell / Buzzer
Good Light 1 ON Steady “GOOD” 1 Beep / Squawk
Fair Light 2 ON Steady “FAIR” 2 Beeps / Squawks
Bad Light 3 ON Steady “BAD” 3 Beeps / Squawks
[990] Installer Lockout Enable
(Section 5.31 “Installer’s Lockout” )
[991] Installer Lockout Disable (Section 5.31 “Installer’s Lockout” )

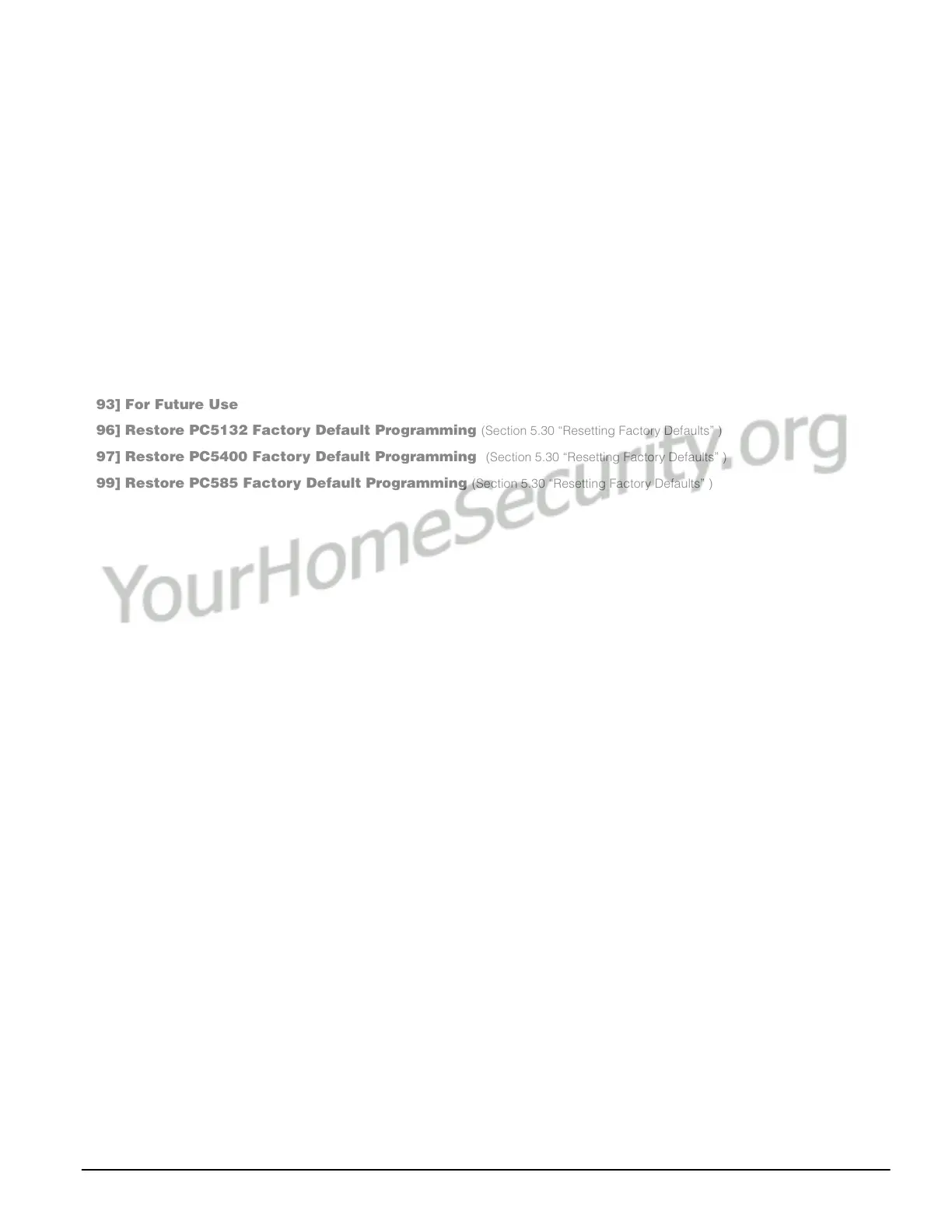

[993] For Future Use
[996] Restore PC5132 Factory Default Programming
(Section 5.30 “Resetting Factory Defaults” )
[997] Restore PC5400 Factory Default Programming (Section 5.30 “Resetting Factory Defaults” )
[999] Restore PC585 Factory Default Programming (Section 5.30Resetting Factory Defaults” )

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the DSC PowerSeries PC585 and is the answer not in the manual?

DSC PowerSeries PC585 Specifications

General IconGeneral
Partitions1
CommunicatorBuilt-in
Keypads Supported8
PGM Outputs2
Power Supply16.5VAC
Battery Backup12VDC, 4AH
Operating Temperature0°C to 49°C (32°F to 120°F)
HumidityUp to 85% non-condensing
Zones8
