44
Appendix B: Programming LCD Keypads
If you have an LCD5500Z Keypad, additional programming is required for proper operation. The following is a description of the
available programming options and their accompanying programming sections:
How to Enter LCD Programming
Follow the programming procedure as outlined in Section 4 by pressing [*][8][Installer’s Code]. Press the [*] key. Enter the two
digit Section number to be programmed.
Programmable Labels – Sections [01] - [08], [33], [34], [40], [44], [51], [52]
Zone labels and other LCD display identifiers can be customized to make operation of the system easier for the end user. The
following procedure should be used for creating all LCD labels:
• Enter Installer’s Programming. Enter the Number corresponding to the label to be programmed.
• Use the arrow keys (<>) to move the underline bar underneath the letter to be changed.
• Press the number key [1] to [9] corresponding to the letter you require. The first time you press the number the first letter will
appear. Pressing the number key again will display the next letter. Refer to the following chart:
[1] - A, B, C, 1 [2] - D, E, F, 2 [3] - G, H, I, 3 [4] - J, K, L, 4 [5] - M, N, O, 5
[6] - P, Q, R, 6 [7] - S, T, U, 7 [8] - V, W, X, 8 [9] - Y, Z, 9,0 [0] - Space
• When the required letter or number is displayed use the arrow keys (<>) to scroll to the next letter.
• When you are finished programming the label, press the [*] key, scroll to “Save,” then press [*].
• Continue from Step 2 until all labels are programmed.

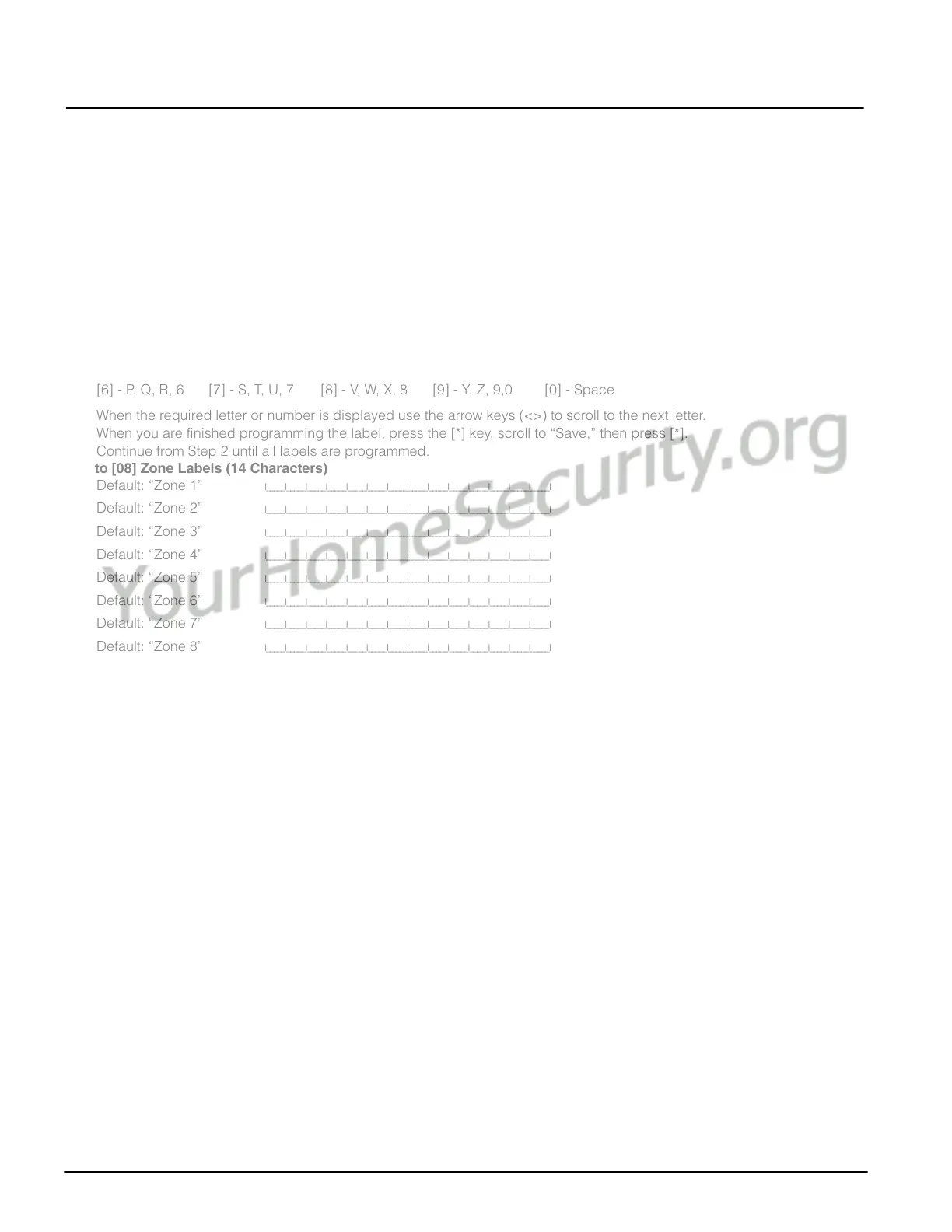

[01] to [08] Zone Labels (14 Characters)
Default: “Zone 1”
I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I
Default: “Zone 2” I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I
Default: “Zone 3” I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I
Default: “Zone 4” I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I
Default: “Zone 5” I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I
Default: “Zone 6” I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I
Default: “Zone 7” I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I
Default: “Zone 8” I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I
[33] Fire Alarm Label (14 Characters)
Default: “Fire Zone” I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I
[34] System Label (14 Characters)
Default: “System” I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I
[40] to [44] [*][7][1-2] Command Output Option Labels (14 Characters)
[40] Default: “Command O/P 1”I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I
[44] Default: “Command O/P 2”I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I
[51] Fail to Arm Event Message
Default: “System Has Failed to Arm” I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I
[52] Alarm When Armed Event Message
Default: “Alarm Occurred While Armed < >”I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I_____I
[60] First User Display Mask
Default Option ON OFF
ON I_______I 1 Hold [P]anic Keys Prompt ON Hold [P]anic Keys Prompt OFF
ON
I_______I 2 Zone Bypassing Prompt ON Zone Bypass Prompt OFF
ON
I_______I 3 Troubles Prompt ON Troubles Prompt OFF
ON
I_______I 4 Alarm Memory Prompt ON Alarm Memory Prompt OFF
ON
I_______I 5 Door Chime Control Prompt ON Door Chime Control Prompt OFF
ON
I_______I 6 Access Codes Prompt ON Access Codes Prompt OFF
ON
I_______I 7 User Functions Prompt ON User Functions Prompt OFF
ON
I_______I 8 Output Control Prompt ON Output Control Prompt OFF
To Next Page
