Programming LCD Keypads: 5.32 Walk Test (Installer)
45
[61] Second User Display Mask
Default Option ON OFF
OFF I_______I 1 Installer Programming Prompt ON Installer Programming Prompt OFF
ON
I_______I 2 Stay Arm Prompt ON Stay Arm Prompt OFF
ON
I_______I 3 Quick Arm Prompt ON Quick Arm Prompt OFF
ON I_______I 4 Interior Arm Prompt ON Interior Arm Prompt OFF
OFF I_______I 5 Quick Exit Prompt ON Quick Exit Prompt OFF
ON
I_______I 6 View Event Buffer Prompt ON View Event Buffer Prompt OFF
OFF I_______I 7-8 For Future Use
[62] Third User Display Mask
Default Option ON OFF
ON I_______I 1 System Test Prompt ON System Test Prompt OFF
ON I_______I 2 Time and Date Prompt ON Time and Date Prompt OFF
ON
I_______I 3 Auto-arm Control Prompt ON Auto-arm Days Prompt OFF
ON
I_______I 4 Auto-arm Time Prompt ON Auto-arm Time Prompt OFF
ON
I_______I 5 Download Enable Prompt ON Download Enable Prompt OFF
ON
I_______I 6 Bright Control Prompt ON Bright Control Prompt OFF

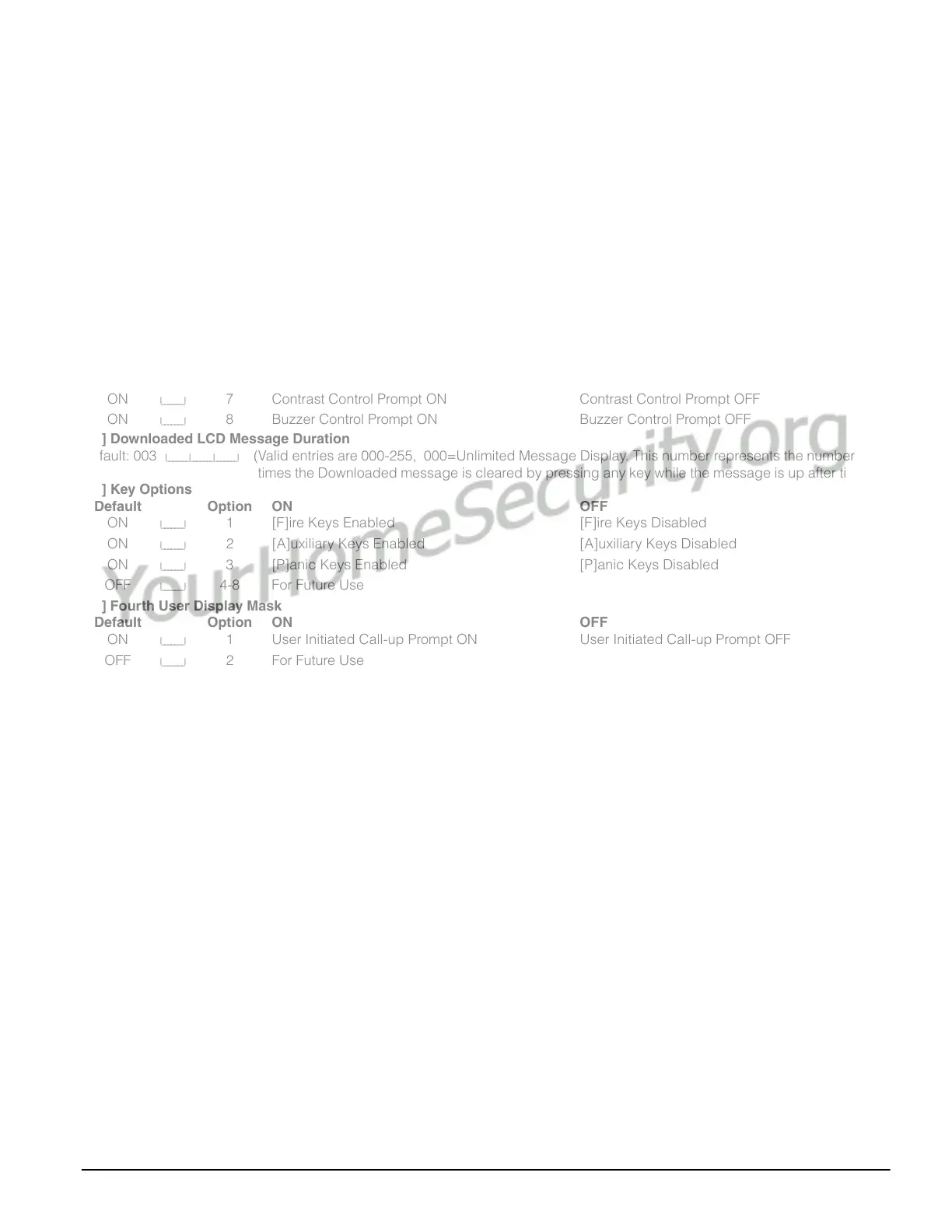

ON I_______I 7 Contrast Control Prompt ON Contrast Control Prompt OFF
ON I_______I 8 Buzzer Control Prompt ON Buzzer Control Prompt OFF
[63] Downloaded LCD Message Duration
Default: 003
I_______I_______I_______I (Valid entries are 000-255, 000=Unlimited Message Display. This number represents the number of
times the Downloaded message is cleared by pressing any key while the message is up after timeout)
[64] Key Options
Default Option ON OFF
ON I_______I 1 [F]ire Keys Enabled [F]ire Keys Disabled
ON
I_______I 2 [A]uxiliary Keys Enabled [A]uxiliary Keys Disabled
ON I_______I 3 [P]anic Keys Enabled [P]anic Keys Disabled
OFF I_______I 4-8 For Future Use
[65] Fourth User Display Mask
Default Option ON OFF
ON
I_______I 1 User Initiated Call-up Prompt ON User Initiated Call-up Prompt OFF
OFF I_______I 2 For Future Use
OFF I_______I 3 For Future Use
ON
I_______I 4 Command Output #1 Prompt ON Command Output #1 Prompt OFF
ON I_______I 5 Command Output #2 Prompt ON Command Output #2 Prompt OFF
OFF I_______I 6-8 For Future Use
[66] Keypad Options
Default Option ON OFF
ON
I_______I 1 Display Access Code when Programming Display ‘X’ when Programming
ON I_______I 2 Local Clock Display Enabled Local Clock Display Disabled
OFF I_______I 3 Local Clock Displays 24-hr Time Local Clock Displays AM/PM
ON
I_______I 4 Auto Alarm Memory Scroll Enabled Auto Alarm Memory Scroll Disabled
OFF I_______I 65-8 For Future Use
[97] View Software Version
[98] Initiate Global Label Broadcast
All LCD programming is done per keypad. If more than one LCD keypad are present on the system, and the PC5400 receives labels, labels pro-
grammed at one keypad can be broadcast to all other LCD keypads. Perform the following procedure in order to broadcast labels:
Step 1 - Program one LCD keypad completely.
Step 2 - Make sure all LCD keypads are connected to the Keybus.
Step 3 - Enter Installer’s Programming, then enter Section [98] at the keypad that was programmed. The keypad will now broadcast all the informa-
tion programmed to all the other LCD keypads on the system.
Step 4 - When the keypad is finished press the [#] key to exit.
